Check Engine Light Illuminates: Notes
CHECK ENGINE LIGHT ILLUMINATES (SKYACTIV-G VIN M) TROUBLESHOOTING REFERENCE
| Troubleshooting item |
Check engine light illuminates |
| Description |
- Check engine light illuminates incorrectly.
NOTE:
- If there is a malfunction in the engine system, the PCM stores a DTC and illuminates the check engine light.
|
| Possible cause |
- Emission system malfunction (DTC is stored in PCM)

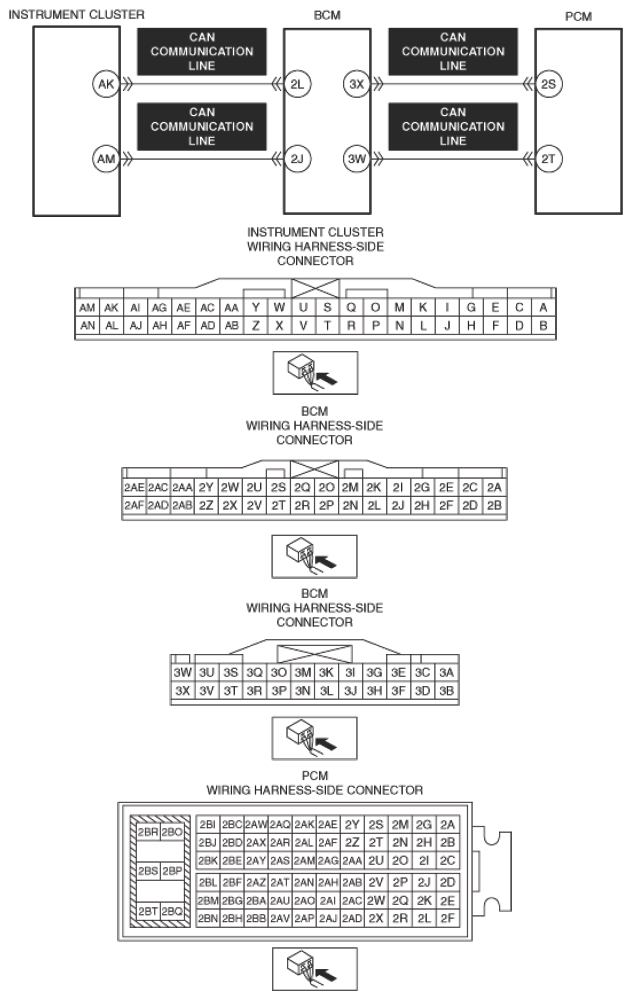

- Short or open circuit in PCM CAN communication line
- Short or open circuit in instrument cluster CAN communication line
- Short or open circuit in climate control unit CAN communication line
- Instrument cluster malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
