Bracket Installation Note

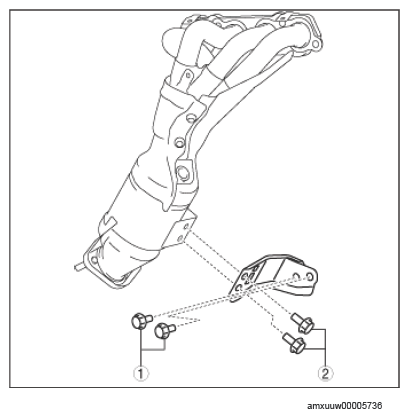

Temporarily tighten the bolt as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Tighten the bolt as shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
