Bluetooth® pairing

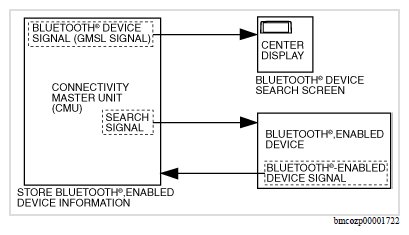

When the connectivity master unit (CMU) receives the operation signal/detects the switch operation, it transmits a search signal to a Bluetooth® enabled device near the connectivity master unit (CMU) and sends the Bluetooth®-device search screen signal to the center display.
The Bluetooth®-enabled device near the connectivity master unit (CMU) sends a Bluetooth® device signal to the connectivity master unit (CMU). In addition, the center display displays the Bluetooth® device search screen.
The connectivity master unit (CMU) programs the Bluetooth®-enabled device information based on the Bluetooth® device signal.

NOTE:

In the following cases, Bluetooth® pairing is canceled.
- Eight (maximum of 7)/Five (maximum of 5) ^*6 Bluetooth® devices have been programmed
- Bluetooth® device signal is not received during period of 180 s
- Cancel is selected during Bluetooth® device search screen display

Courtesy of MAZDA MOTORS CORP.

*6: The value differs depending on the market.
