360°View Monitor Control Module Removal/Installation

WARNING:

Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the service information before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA/ISRAEL SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA/ISRAEL SPEC.] .)

CAUTION:

When replacing the 360° view monitor control module, perform the configuration to assure that the system operates correctly.

Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
Switch the ignition off.
Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front seat (LH). (See FRONT SEAT REMOVAL/INSTALLATION .)
Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.

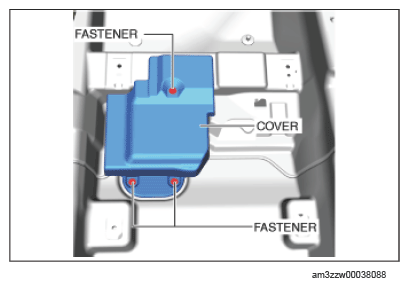

Remove the cover.

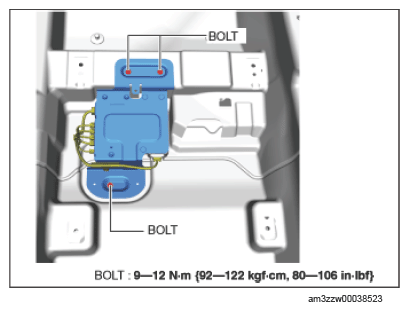

Remove the bolts.

Fig 1: 360°View Monitor Control Module Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Perform the following procedure to allow the backup power supply to deplete its stored power. (With backup power supply).
NOTE:
- While the power stored in the backup power supply is being depleted, the door latch and lock actuator does not operate. This does not indicate an improper procedure. Continue to perform the procedure.
- After performing Step 3 and the door latch and lock actuator starts to operate, the door lock switch (driver's side) no longer needs to be operated.
1. Close the front door (driver's side).
2. Open the front door (driver's side).
3. Within 30 s after performing Step 2, press and hold the unlock side of the door lock switch (driver's side) for 5 s or more.
4. Wait until the door latch and lock actuator stops.

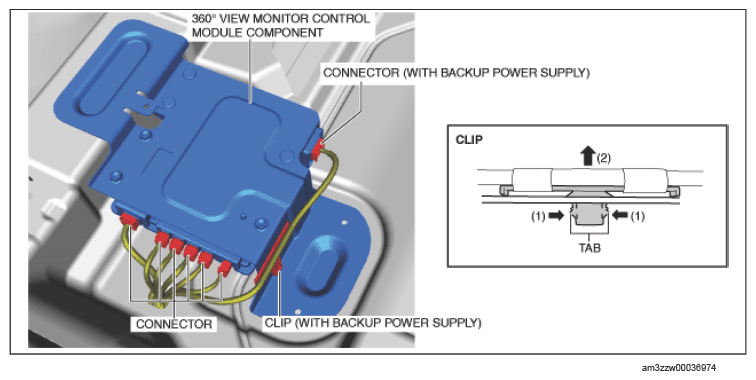

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.
Remove the clip. (with backup power supply)
Remove the 360° view monitor control module component.
Remove the bolts.

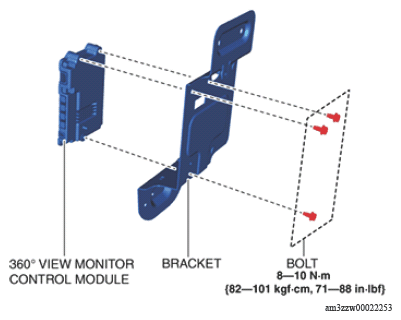

Fig 2: Bracket Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the bracket.
- When replacing the bracket, remove the backup power supply. (with backup power supply) (See BACKUP POWER SUPPLY REMOVAL/INSTALLATION .)
Remove the 360° view monitor control module.
Install in the reverse order of removal.
If the 360° view monitor control module is replaced, perform the following procedure.
1. Perform the 360° view monitor control module configuration using the M-MDS. (Refer to [CONFIGURATION] in the service information.)
2. Switch the ignition OFF and wait for 5 s or more.
3. Switch the ignition ON (engine off) again and wait for 5 s or more.
4. Clear the DTC. (Refer to CLEARING DTC in the service information)
5. Perform the 360° view monitor system aiming. (See 360°VIEW MONITOR SYSTEM AIMING .)
