Steering Gear And Linkage Removal Note

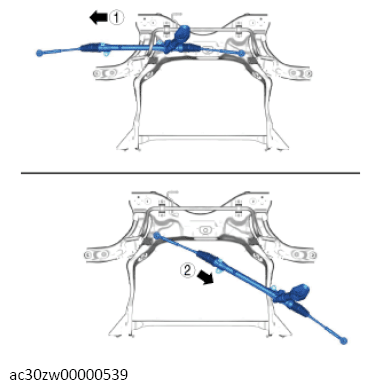

  1. Move the steering gear and linkage in the direction of the arrow in the order shown in the figure below and remove it.
G13558962Courtesy of MAZDA MOTORS CORP.
