Remove Cooling System Cap

  1. Remove in the order indicated in the table.

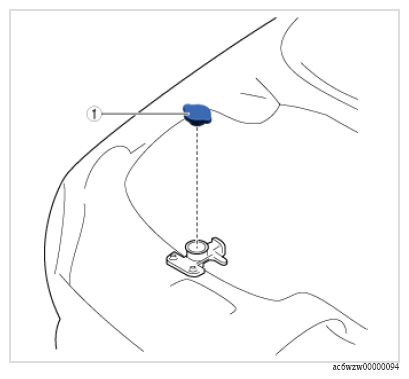

G16699153Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Cooling system cap
