Fastener removal note

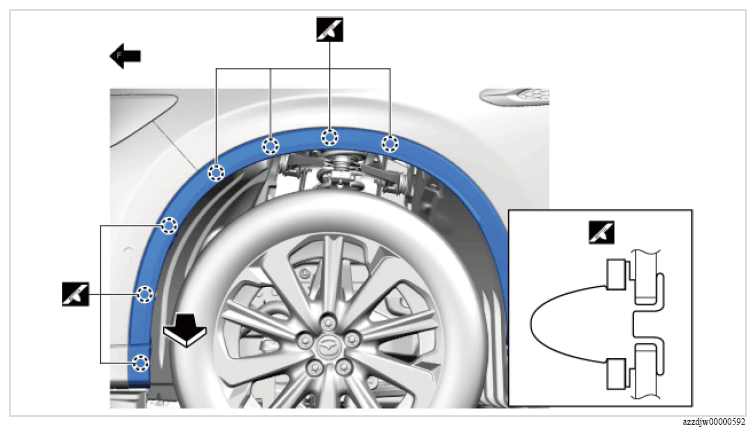

- Partially peel back the front over fender upper until the fasteners can be removed as shown in the figure.
- The figure shows the left side (same as right side).
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the fasteners.
