Steering Location Index: Steering

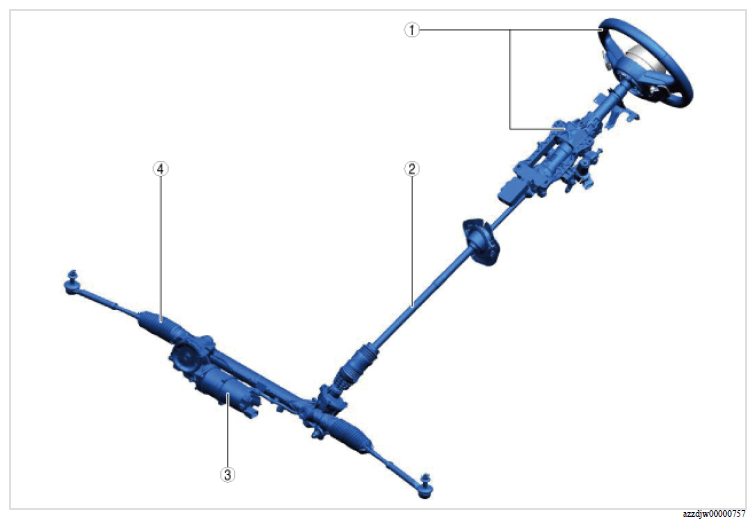

Fig 1: Steering Components Location
G16712187Courtesy of MAZDA MOTORS CORP.
STEERING COMPONENT OPERATIONS

Component No. Refer to
1 Steering wheel and column
2 Intermediate shaft
3 EPS CM
4 Steering gear and linkage
