Remove the front bumper component: Notes

CAUTION:

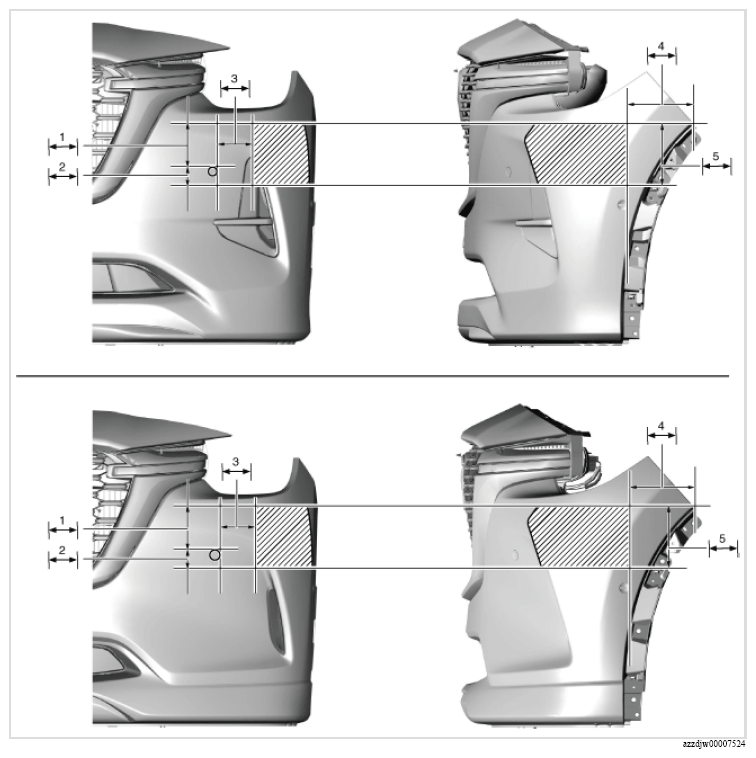

If the radar emitting area shown in the figure is repainted, radar sensor (front side) aiming may not be performed correctly. If the radar emitting area needs to be repainted, replace the rear bumper with a new one (same as right side).

G16691932

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	Radar emitting area
	102 mm {4.02 in}
	47 mm {1.9 in}
	82 mm {3.2 in}
	146 mm {5.75 in}
	148 mm {5.83 in}

Remove using the procedure shown in the figure.

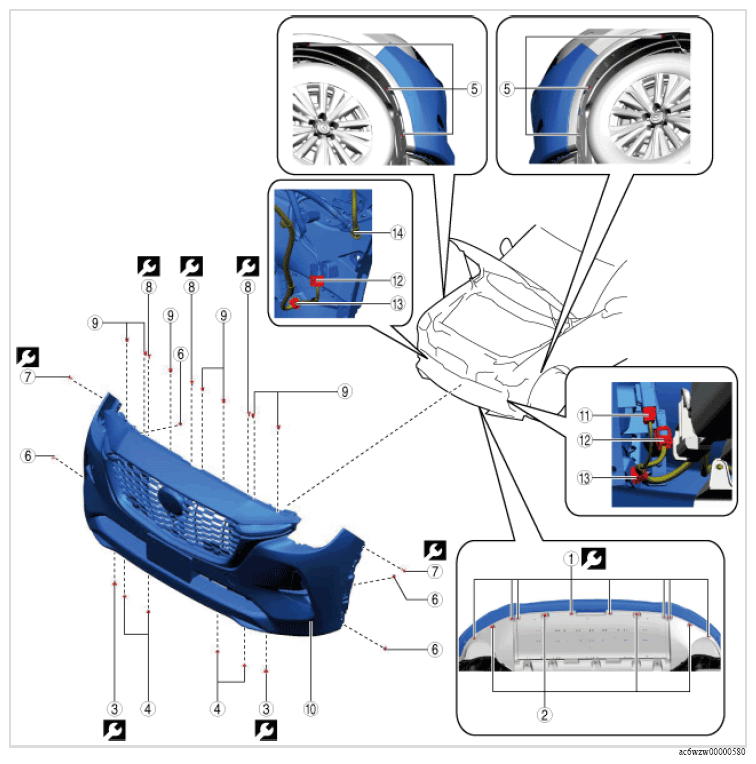

Fig 1: Front Bumper Components Location With Torque Specification

G16691933

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name	Applicable condition
1	Screw	-	2 N.m {20 kgf.cm, 17 in.lbf}
2	Fastener A	-	-
3	Bolts A (See BOLT A REMOVAL NOTE )	-	8.5 N.m {85 kgf.cm, 74 in.lbf}
4	Fastener B (See FASTENER B REMOVAL NOTE )	-	-
5	Fastener C	-	-
6	Fastener D (See FASTENER D REMOVAL NOTE )	-	-
7	Bolts B	-	8.5 N.m {85 kgf.cm, 74 in.lbf}
8	Bolt C	-	8.5 N.m {85 kgf.cm, 74 in.lbf}
9	Fastener E	-	-
10	Front bumper component (See FRONT BUMPER COMPONENT REMOVAL NOTE )	-	-
11	Connector	With 360° view monitor	-
12	Connector	-	-
13	Wiring harness clip (See WIRING HARNESS CLIP REMOVAL NOTE )	-	-
14	Headlight washer hose	With headlight washer	-
