Rear accessory socket removal note

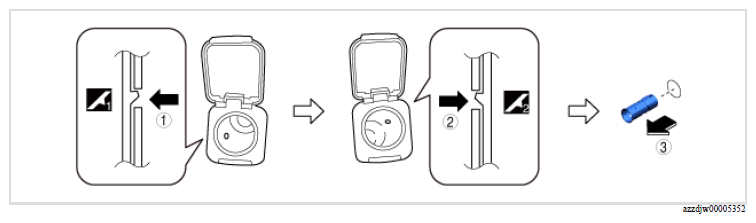

  1. Remove the rear accessory socket as shown in the figure.
G16713377Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
  1. 4. Install in the reverse order of removal.
  2. 5. Perform the power Liftgate (PLG) initialization procedure. (See POWER LIFTGATE (PLG) INITIALIZATION PROCEDURE .)
  3. 6. Initialize power outer mirror retract/return function. (See POWER OUTER MIRROR INITIALIZATION PROCEDURE .)
