Remove Foot Support: Notes

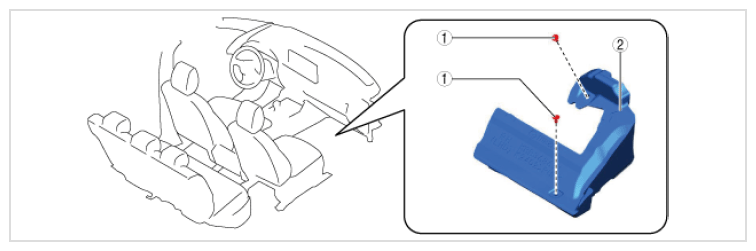

  1. Remove using the procedure shown in the figure.
G16704404Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Fastener
(See Fastener removal note ).
2 Foot support
