Remove Control Unit Cover

  1. Remove using the procedure shown in the figure.

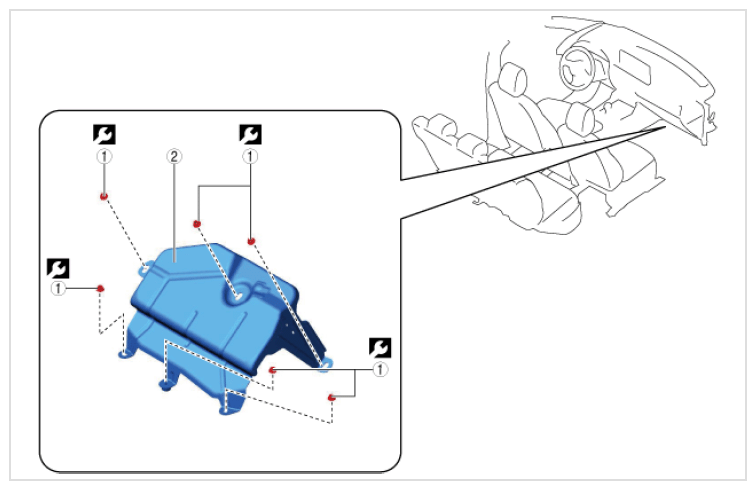

Fig 1: Control Unit Cover And Nuts With Torque Specification
G16704429Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Procedure Part name
1 Nut 9.5 N.m {95 kgf.cm, 82 in.lbf}
2 Control unit cover -
