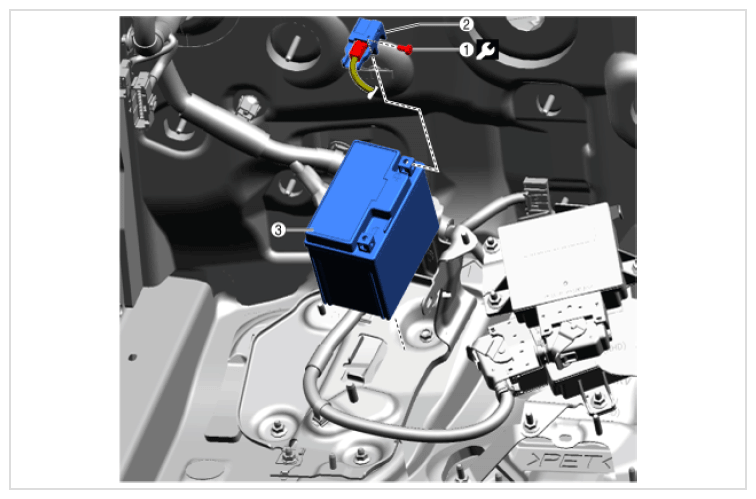

Remove Sub-Battery Fuse: Notes
- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Bolt (See BOLT INSTALLATION NOTE ) |
3.7 N.m {38 kgf.cm, 33 in.lbf} |
| 2 | Sub-battery fuse | - |
| 3 | Sub-battery | - |
| Step | Part name | |
|---|---|---|
| 1 | Bolt (See BOLT INSTALLATION NOTE ) |
3.7 N.m {38 kgf.cm, 33 in.lbf} |
| 2 | Sub-battery fuse | - |
| 3 | Sub-battery | - |
