Foot Light Removal/Installation: Front: Driver-side
WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Disconnect the connector.

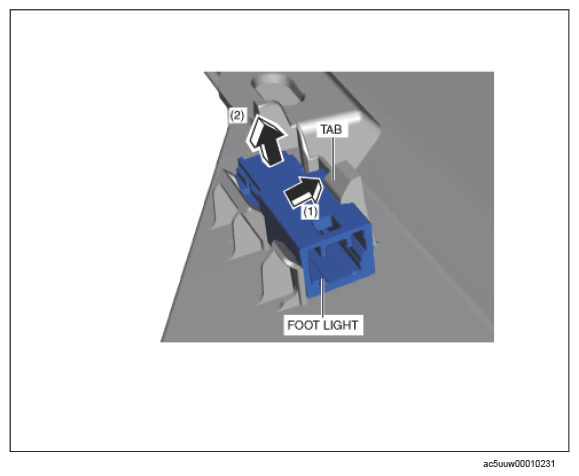

- Remove the foot light (2) while pressing the tab (1) in the direction of the arrow shown in the figure below.
- Install in the reverse order of removal.
