Lighting Systems Location Index: Interior

WARNING: This page is about a different car, the 2025 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

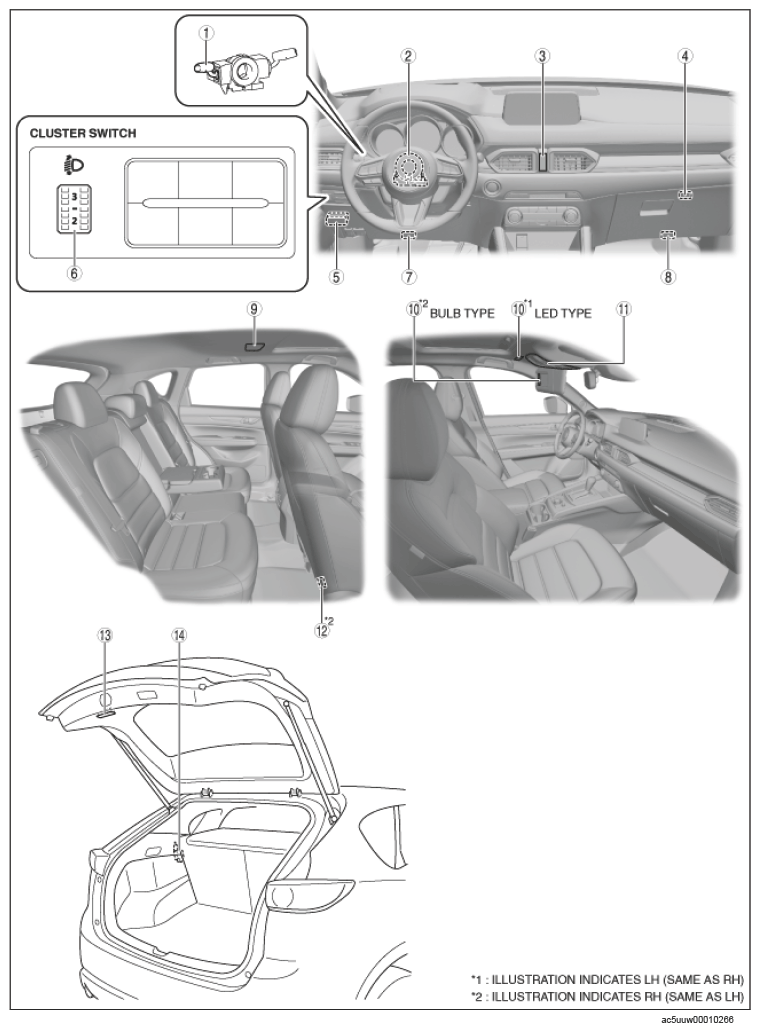

Fig 1: Lighting Systems Components Location (Interior)

Courtesy of MAZDA MOTORS CORP.

LIGHTING SYSTEMS COMPONENT OPERATIONS

Component No.	Refer to
1	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION .) (See LIGHT SWITCH INSPECTION .) (See FRONT FOG LIGHT SWITCH INSPECTION .)
2	Steering angle sensor (with smart city brake support (SCBS) or adaptive front lighting system (AFS)) (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION .) (See STEERING ANGLE SENSOR INSPECTION .)
3	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .) (See HAZARD WARNING SWITCH INSPECTION .)
4	Glove compartment light (with glove compartment light) (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .)
5	Adaptive front lighting system (AFS) control module (with adaptive front lighting system (AFS))/Auto leveling control module (with headlight auto leveling system and without adaptive front lighting system (AFS))/Turn light unit (without adaptive front lighting system (AFS) and without headlight auto leveling system) (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE/AUTO LEVELING CONTROL MODULE/TURN LIGHT UNIT REMOVAL/INSTALLATION .) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
6	Headlight leveling switch (with headlight manual leveling system) (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION .) (See HEADLIGHT LEVELING SWITCH INSPECTION .)
7	Driver-side Foot light (with foot light) (See FOOT LIGHT BULB REMOVAL/INSTALLATION .) (See FOOT LIGHT REMOVAL/INSTALLATION .)
8	Passenger-side Foot light (with foot light) (See FOOT LIGHT BULB REMOVAL/INSTALLATION .) (See FOOT LIGHT REMOVAL/INSTALLATION .)
9	Rear map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See REAR MAP LIGHT REMOVAL/INSTALLATION .) (See REAR MAP LIGHT BULB REMOVAL/INSTALLATION .) (See REAR MAP LIGHT INSPECTION .)
10	Vanity mirror illumination (with vanity mirror illumination) (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION .) (See VANITY MIRROR ILLUMINATION INSPECTION .)
11	Front map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .) (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT MAP LIGHT INSPECTION .)
12	Rear foot light (with foot light) (See FOOT LIGHT BULB REMOVAL/INSTALLATION .) (See FOOT LIGHT REMOVAL/INSTALLATION .)
13	Cargo compartment light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .) (See CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .) (See CARGO COMPARTMENT LIGHT INSPECTION .)
14	Brake light unit (See BRAKE LIGHT UNIT REMOVAL/INSTALLATION .) (See BRAKE LIGHT UNIT INSPECTION .)
