Rear Fog Light Removal/Installation: Notes
WARNING: This page is about a different car, the 2024 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

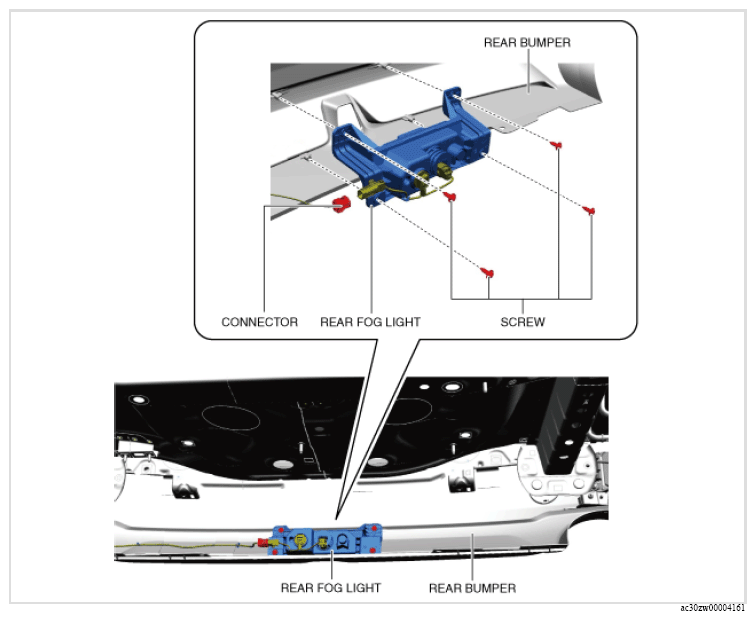

- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the rear bumper stay. (See REAR BUMPER STAY REMOVAL/INSTALLATION .)
- Disconnect the connector.
- Remove the screws. (See SCREW INSTALLATION NOTE .)
- Remove the rear fog light.
- Install in the reverse order of removal.
