Remove Driver-side Adjuster Anchor: Notes
- Set the adjuster to the lowest position.

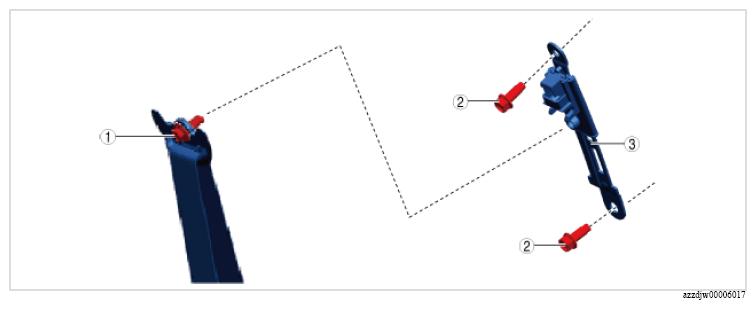

- Remove using the procedure shown in the figure.
- The figure shows the left side (same as right side).
PART NAME DESCRIPTION
| Step | Part name | |
|---|---|---|
| 1 | Bolt | 50 N.m {5.1 kgf.m, 36.9 ft.lbf} |
| 2 | Bolt (See Bolt installation note ). |
50 N.m {5.1 kgf.m, 36.9 ft.lbf} |
| 3 | Adjuster anchor | - |
