Second-Row Buckle Removal/Installation [002]: Notes

D-code

CAUTION:

When performing the procedure with a second-row seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the second-row seat as shown in the figure.

Right side

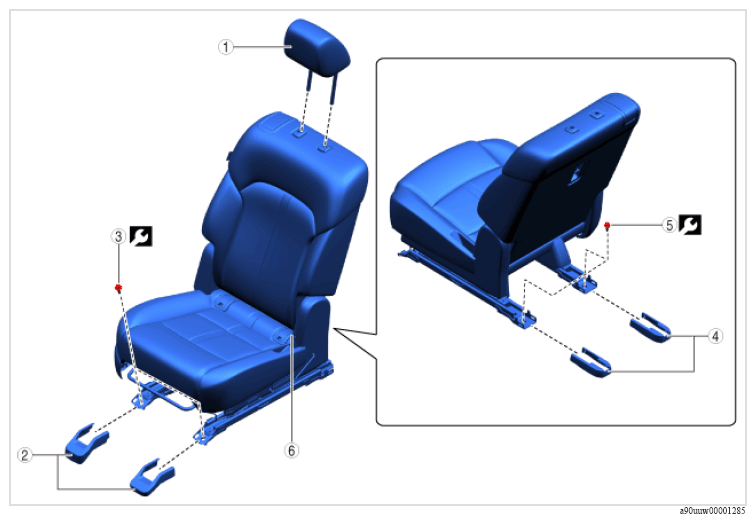

Fig 1: Second-Row Buckle Components Location With Torque Specification (Right Side)

Courtesy of MAZDA MOTORS CORP.

Left

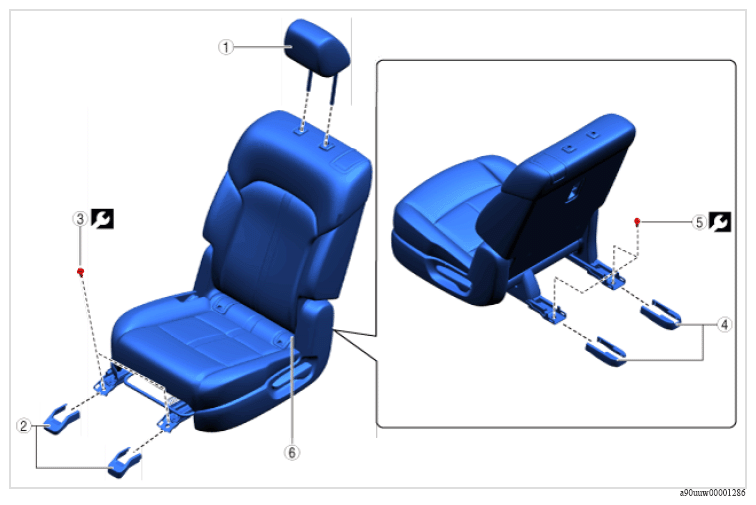

Fig 2: Second-Row Buckle Components Location With Torque Specification (Left Side)

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Head restraint	-
2	Cover (See Cover removal note ).	-
3	Bolt	45 N.m {4.6 kgf.m, 33.3 ft.lbf}
4	Cover (See Cover removal note ).	-
5	Bolt	45 N.m {4.6 kgf.m, 33.3 ft.lbf}
6	Second-row seat (See Second-row seat removal note ).	-
