Tie-rod Installation Note

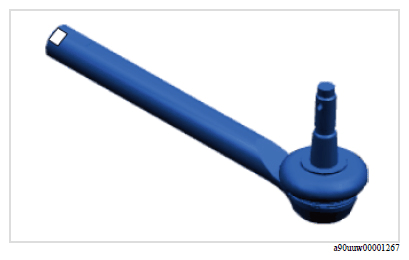

Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.
- The figure shows the left side (same as right side).
Courtesy of MAZDA MOTORS CORP.

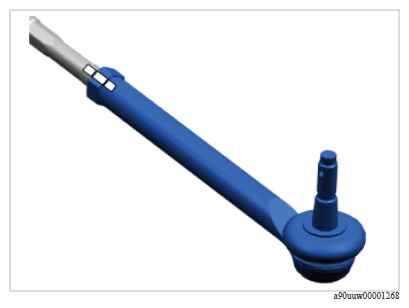

Align the marks that were made before removing the tie-rod end, and assemble the tie-rod end to the tie rod.
- The figure shows the left side (same as right side).
Courtesy of MAZDA MOTORS CORP.

Verify that dimension shown in the figure is within the standard.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	3.7-16.7 mm {0.15-0.65 in}

If not within the standard, make adjustments so that dimension is within the standard.
