Remove Passenger Side Front Over Fender Lower: Notes

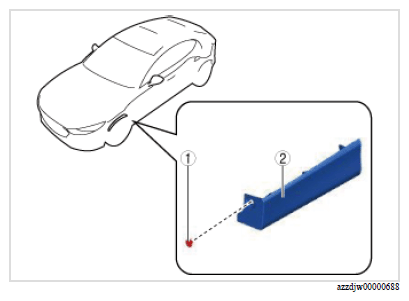

  1. Remove using the procedure shown in the figure.
    • The figure shows the left side (same as right side).
      G16705002Courtesy of MAZDA MOTORS CORP.
    PART NAME DESCRIPTION

    Step Part name
    1 Fastener
    2 Front over fender lower
    (See Front over fender lower removal note  ).
    (See Front over fender lower installation note  ).
