Steering Gear And Linkage Assembly: Notes
CAUTION:
- To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

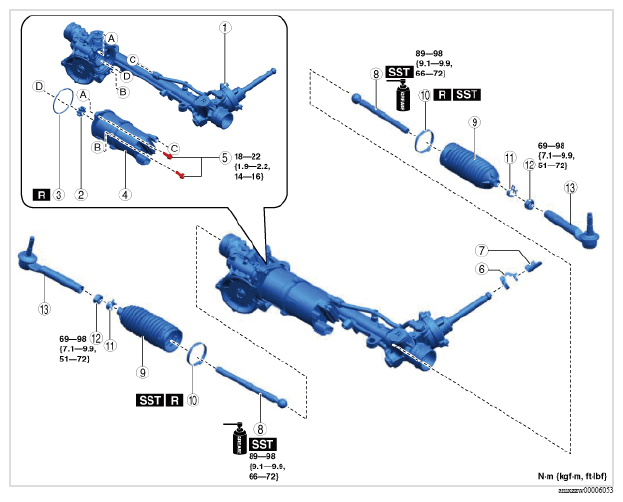

- Assemble in the order shown in the figure.
- Install the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)
COMPONENT OPERATIONS
| Component no. | Refer to |
|---|---|
| 1 | Steering gear |
| 2 | Rubber (See RUBBER AND EPS CM ASSEMBLY NOTE .) |
| 3 | O-ring |
| 4 | EPS CM (See RUBBER AND EPS CM ASSEMBLY NOTE .) |
| 5 | Bolt |
| 6 | Clip |
| 7 | Clip |
| 8 | Tie rod (See TIE ROD ASSEMBLY NOTE .) |
| 9 | Boot |
| 10 | Boot band (See BOOT BAND ASSEMBLY NOTE .) |
| 11 | Boot clamp |
| 12 | Locknut |
| 13 | Tie-rod end (See TIE-ROD END ASSEMBLY NOTE .) |
