Indicator Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    2. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)

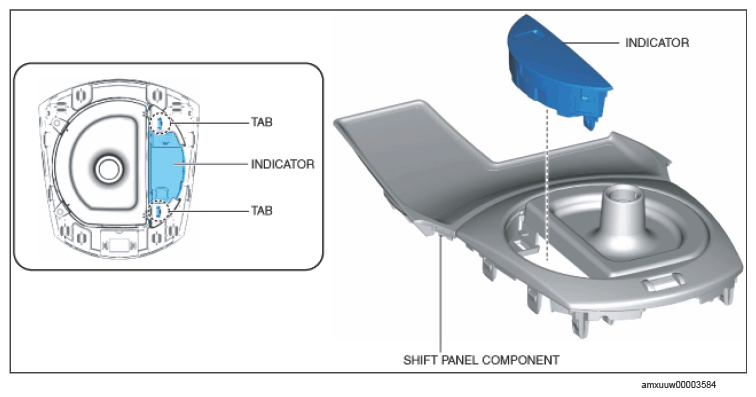

  3. Detach tabs shown in the figure and remove the indicator.
    G14589564Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
