Negative Battery Terminal Connection Note

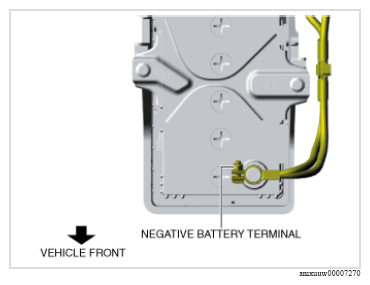

  1. Connect the negative battery terminal in the direction shown in the figure.
G16806995Courtesy of MAZDA MOTORS CORP.
