Information Label Locations

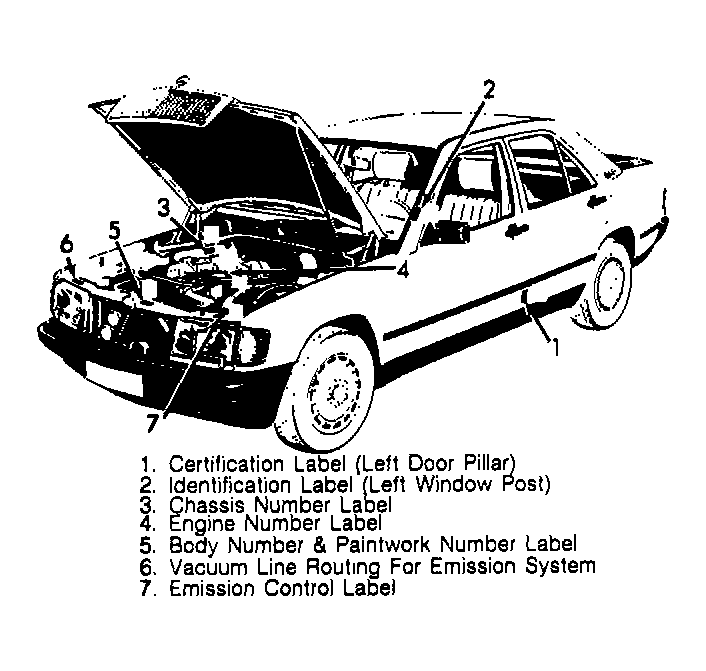

Fig 1: Information Label Locations (1984-90 Models)
G90B08030Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

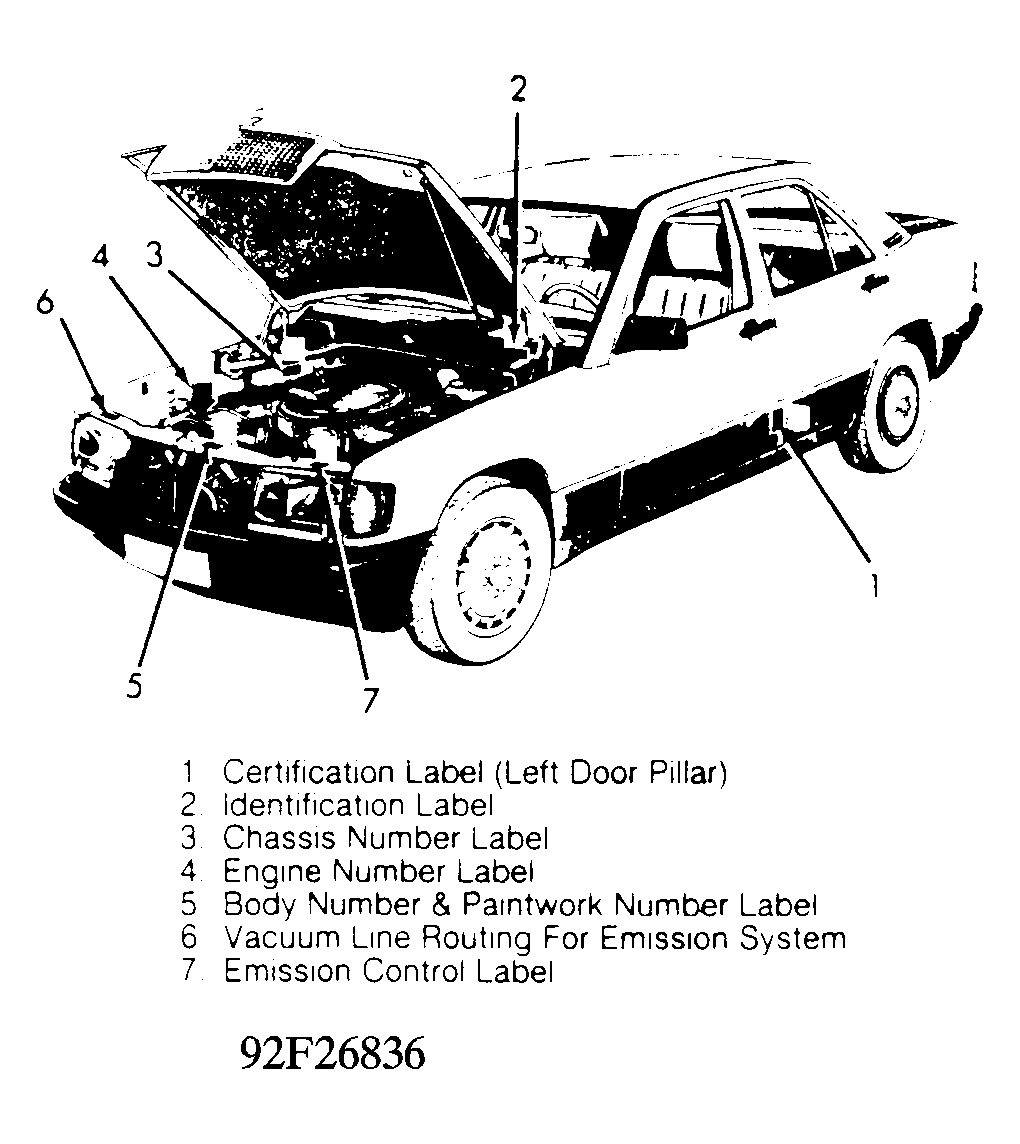

Fig 2: Information Label Locations (1991-92 Models)
G92F26836Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
