Testing Coolant Temperature Sensor

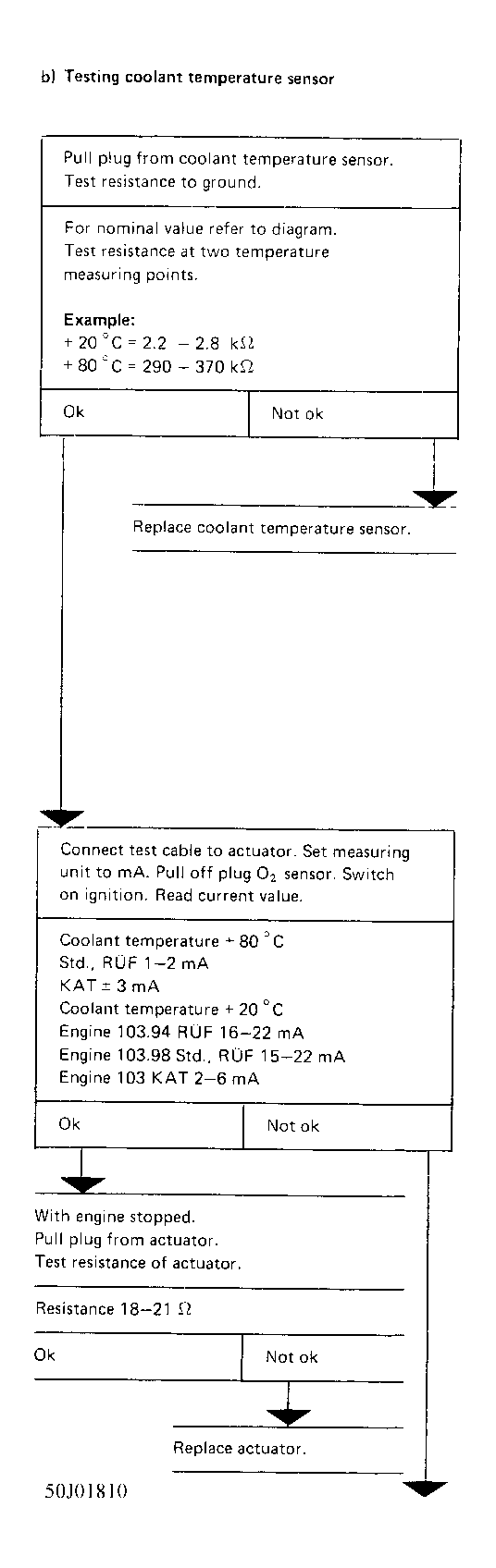

Fig 1: Testing Coolant Temperature Sensor (Flow Chart 1 of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Fig 2: Testing Coolant Temperature Sensor (Flow Chart 2 of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Fig 3: Testing Coolant Temperature Sensor, ECU Connector Id
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
