Testing Current On Actuator

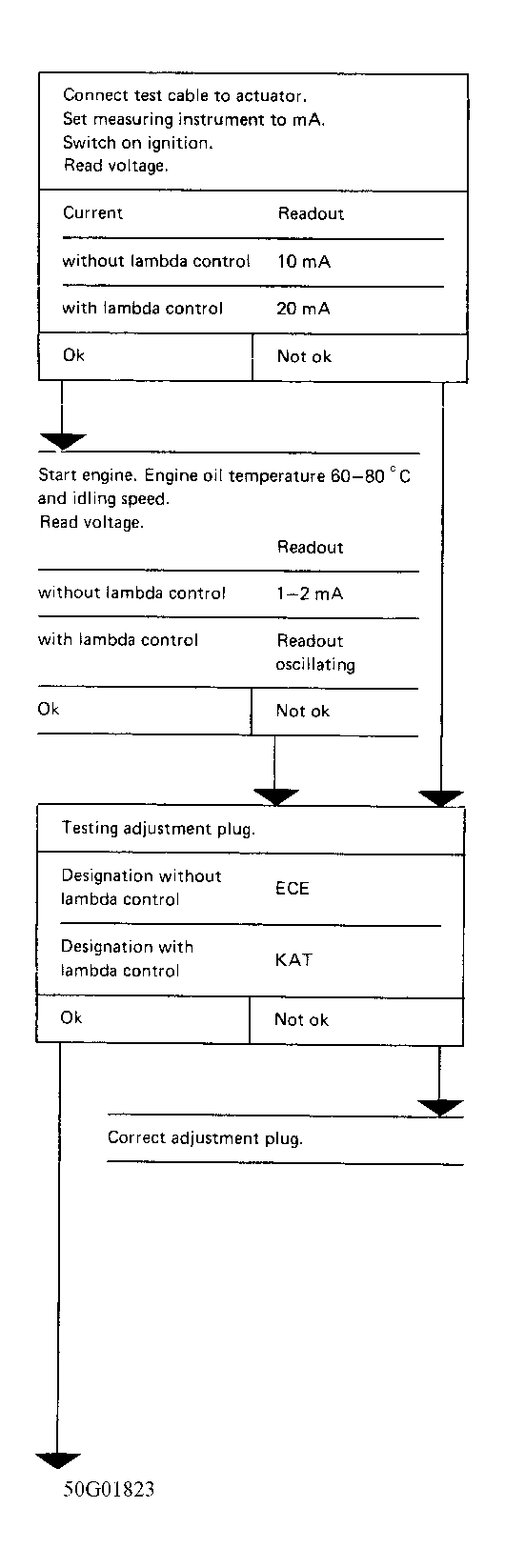

Fig 1: Flow Chart (1 of 2), Testing Current On Actuator
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Fig 2: Flow Chart (2 of 2), Testing Current On Actuator
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Courtesy of MERCEDES-BENZ OF NORTH AMERICA
