Diagnostic Tests

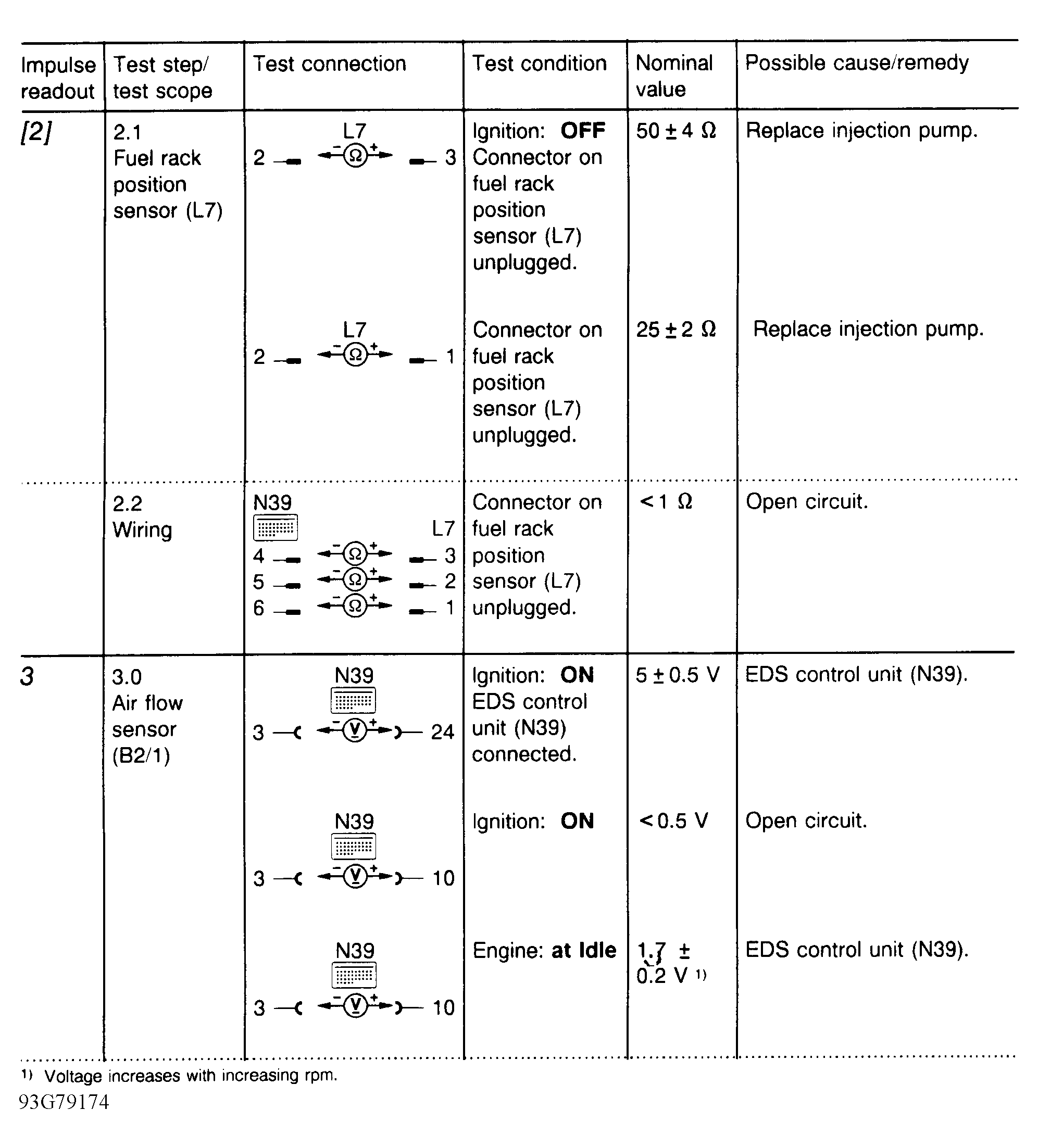

Fig 1: 2.5L Fault Code Diagnosis (1 of 9)

G93G79174

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

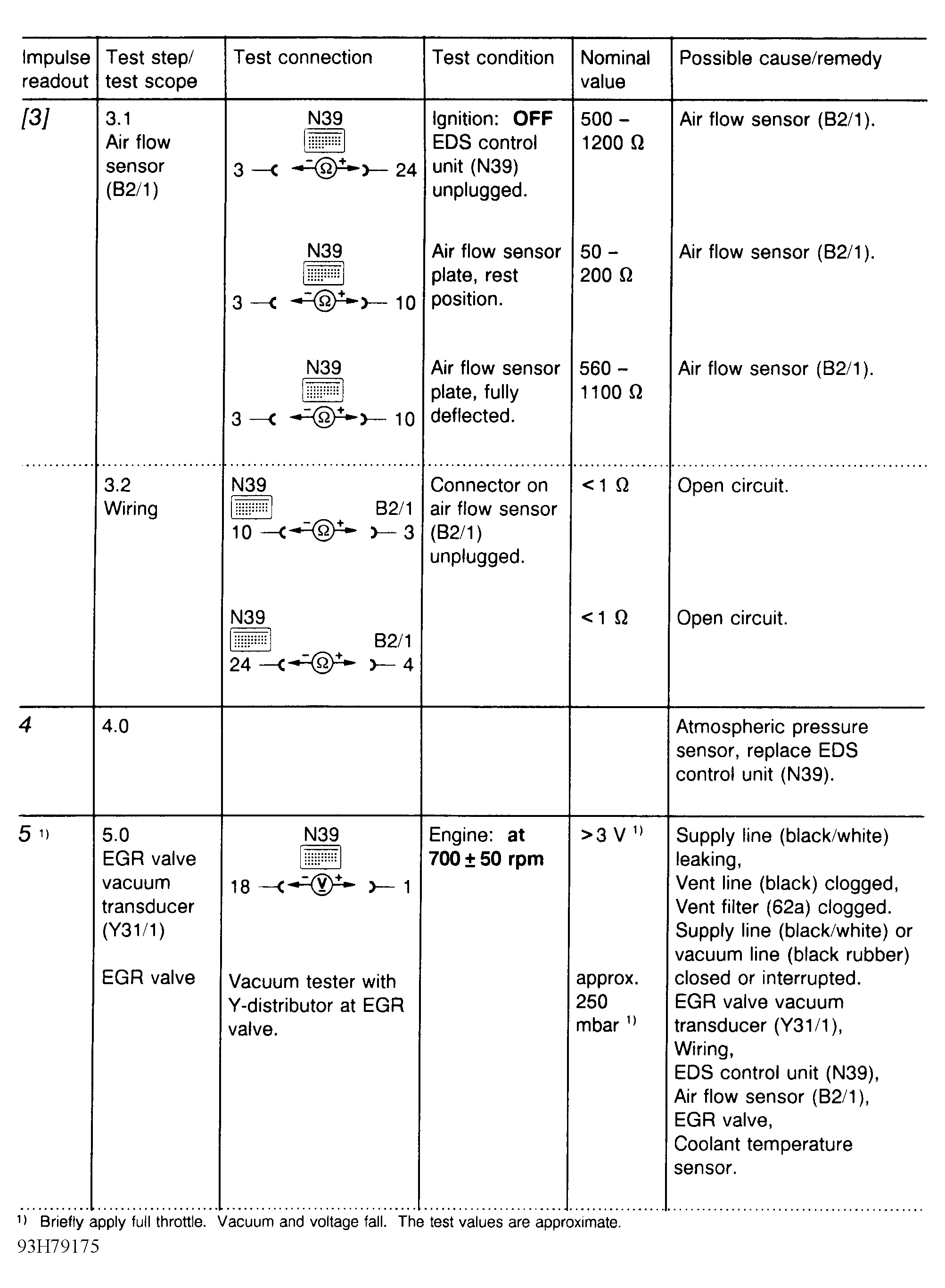

Fig 2: 2.5L Fault Code Diagnosis (2 of 9)

G93H79175

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

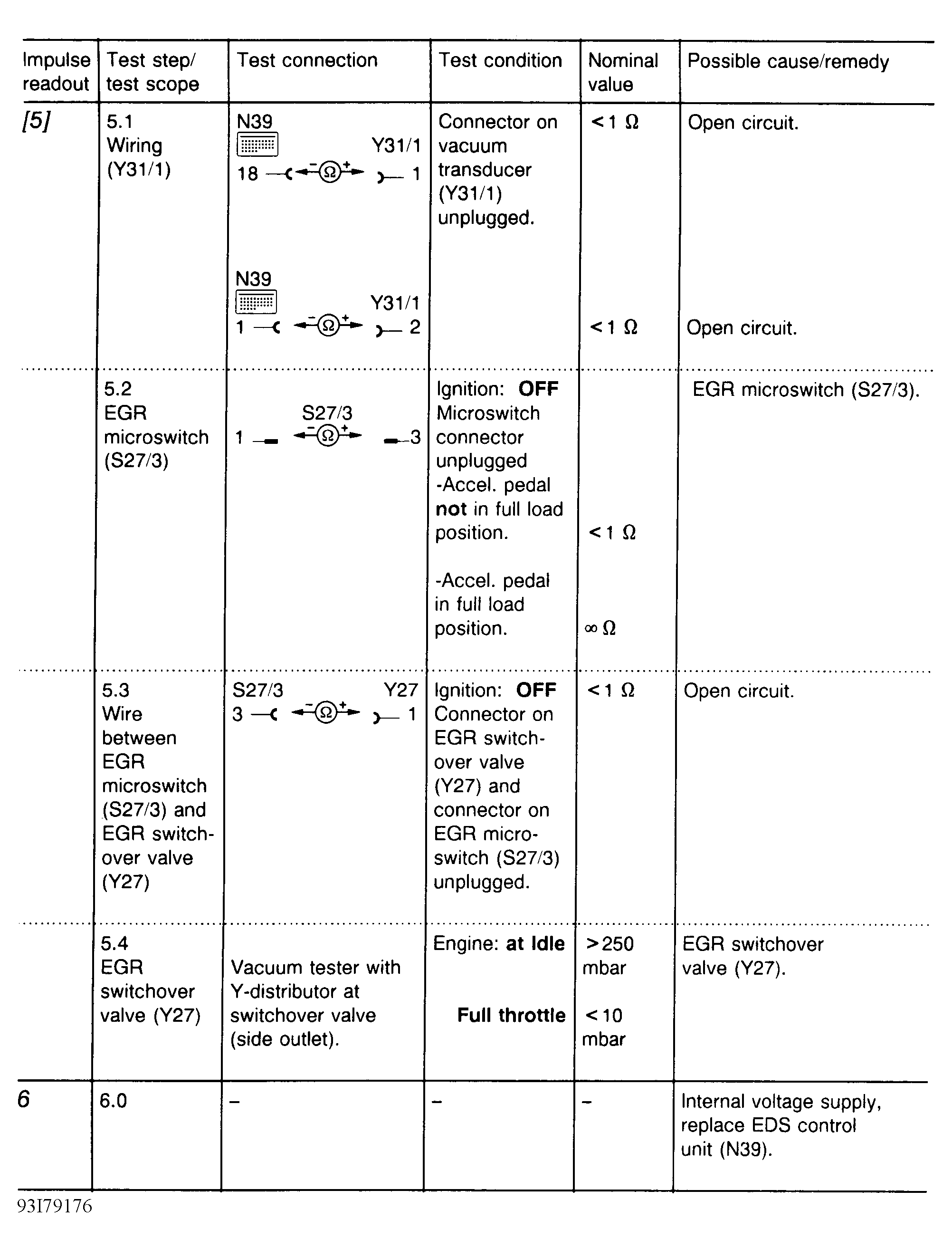

Fig 3: 2.5L Fault Code Diagnosis (3 of 9)

G93I79176

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

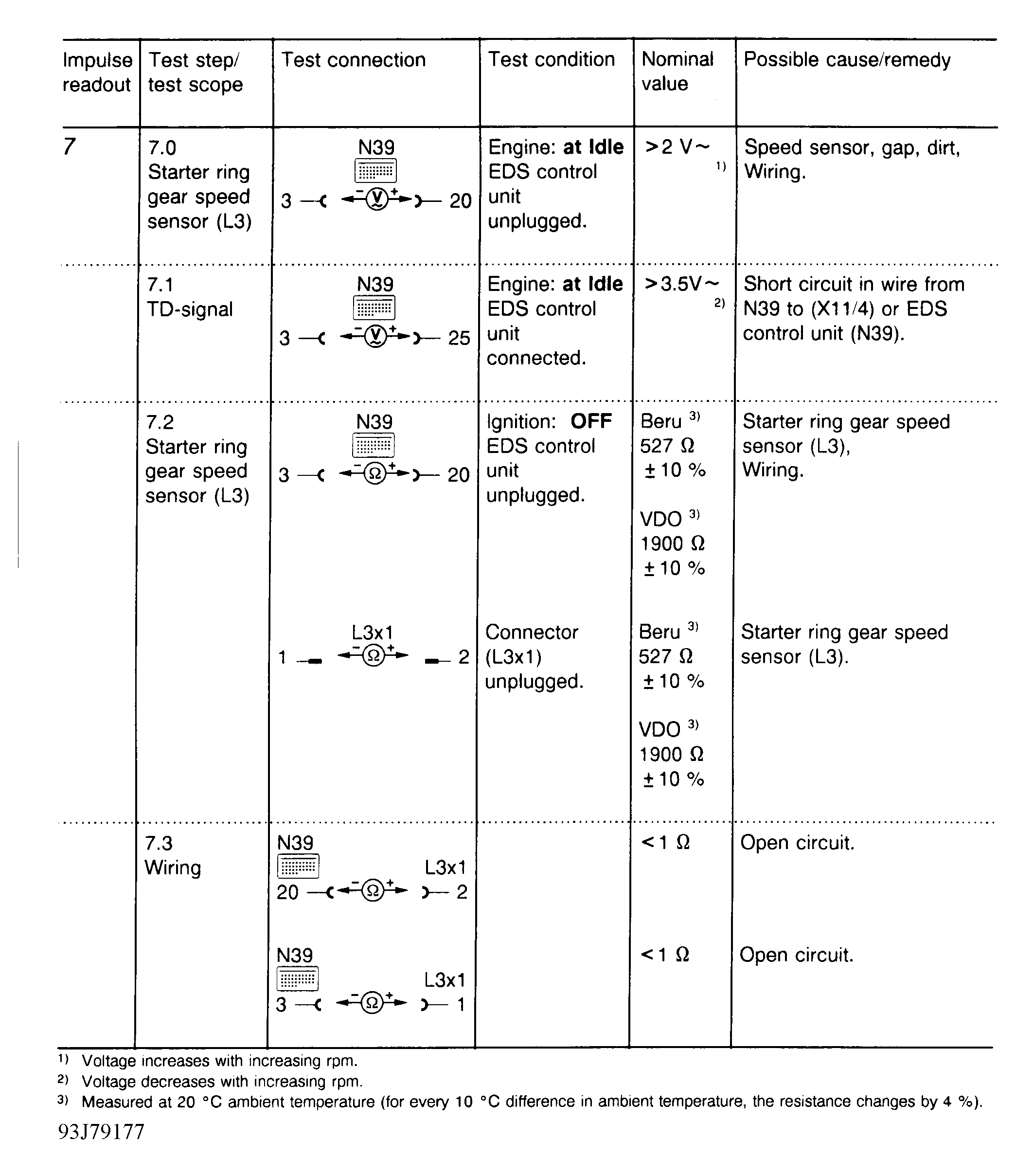

Fig 4: 2.5L Fault Code Diagnosis (4 of 9)

G93J79177

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

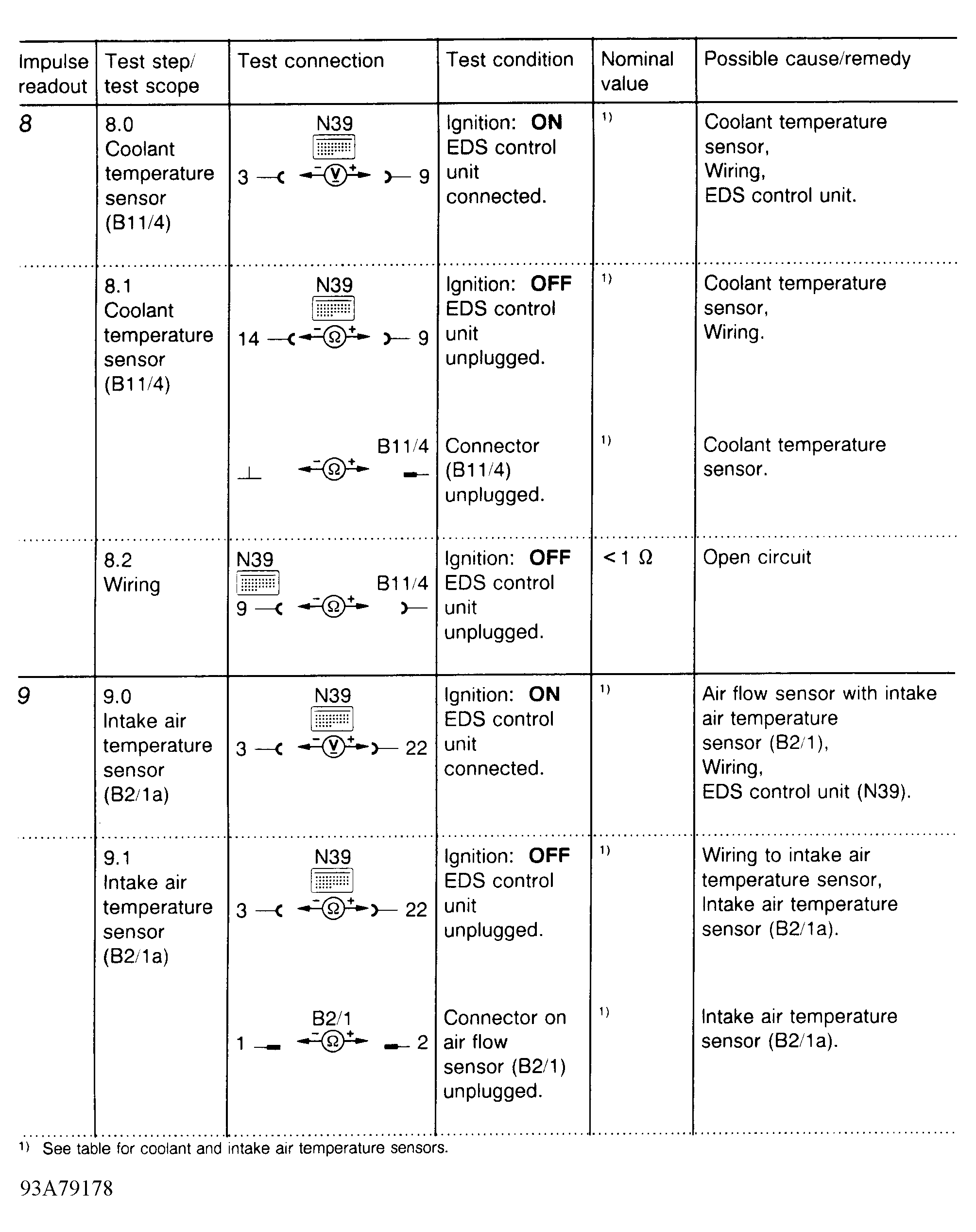

Fig 5: 2.5L Fault Code Diagnosis (5 of 9)

G93A79178

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

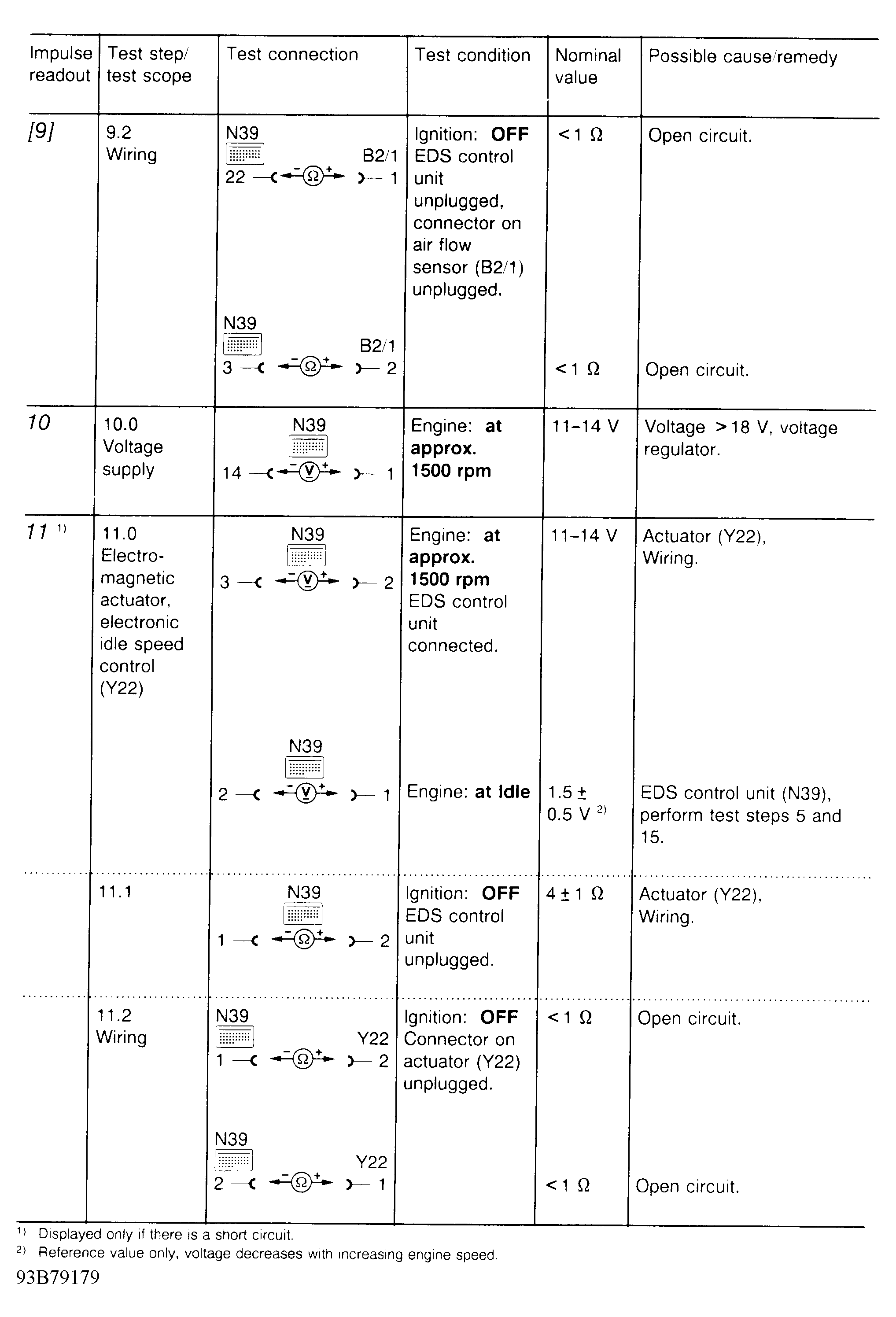

Fig 6: 2.5L Fault Code Diagnosis (6 of 9)

G93B79179

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

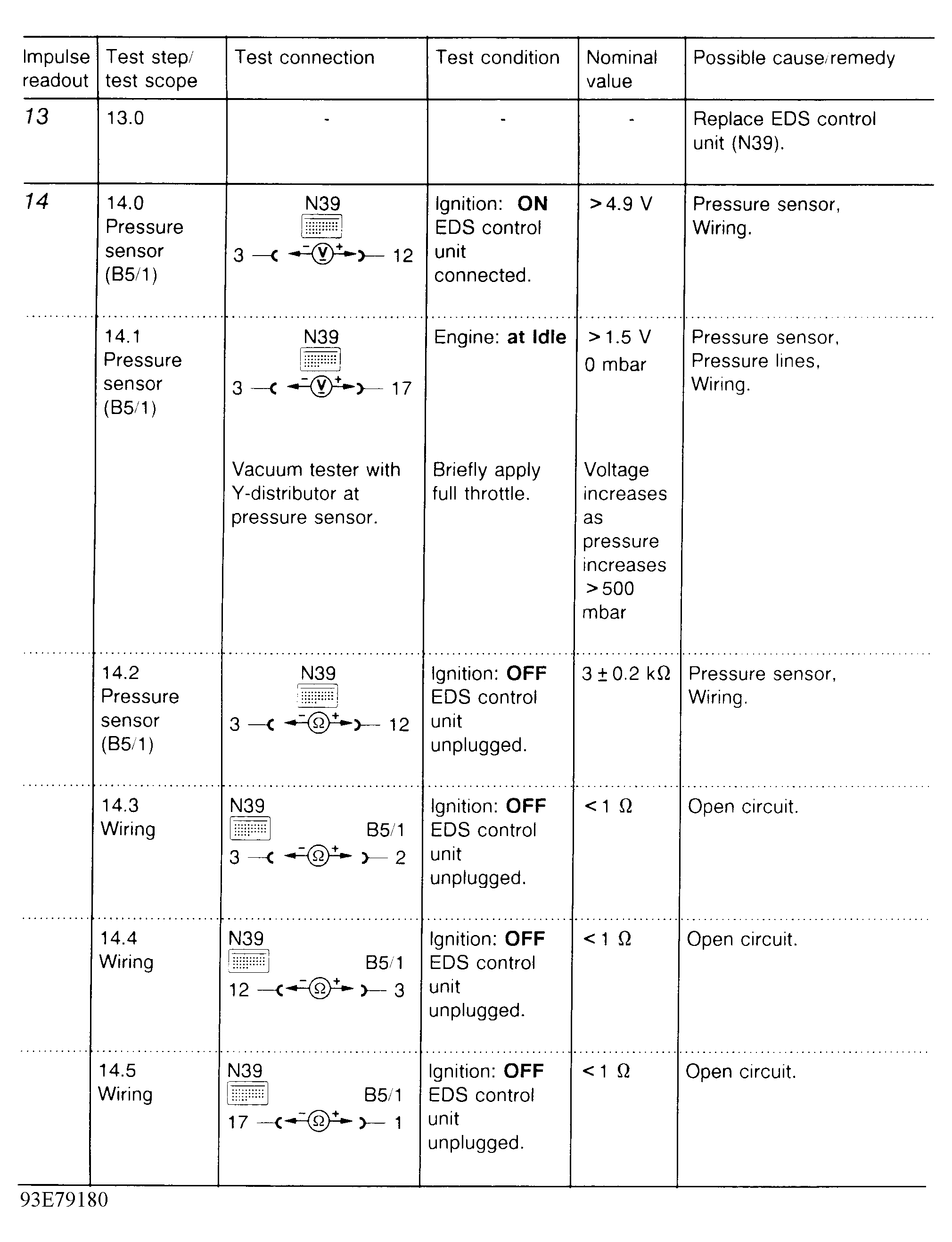

Fig 7: 2.5L Fault Code Diagnosis (7 of 9)

G93E79180

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

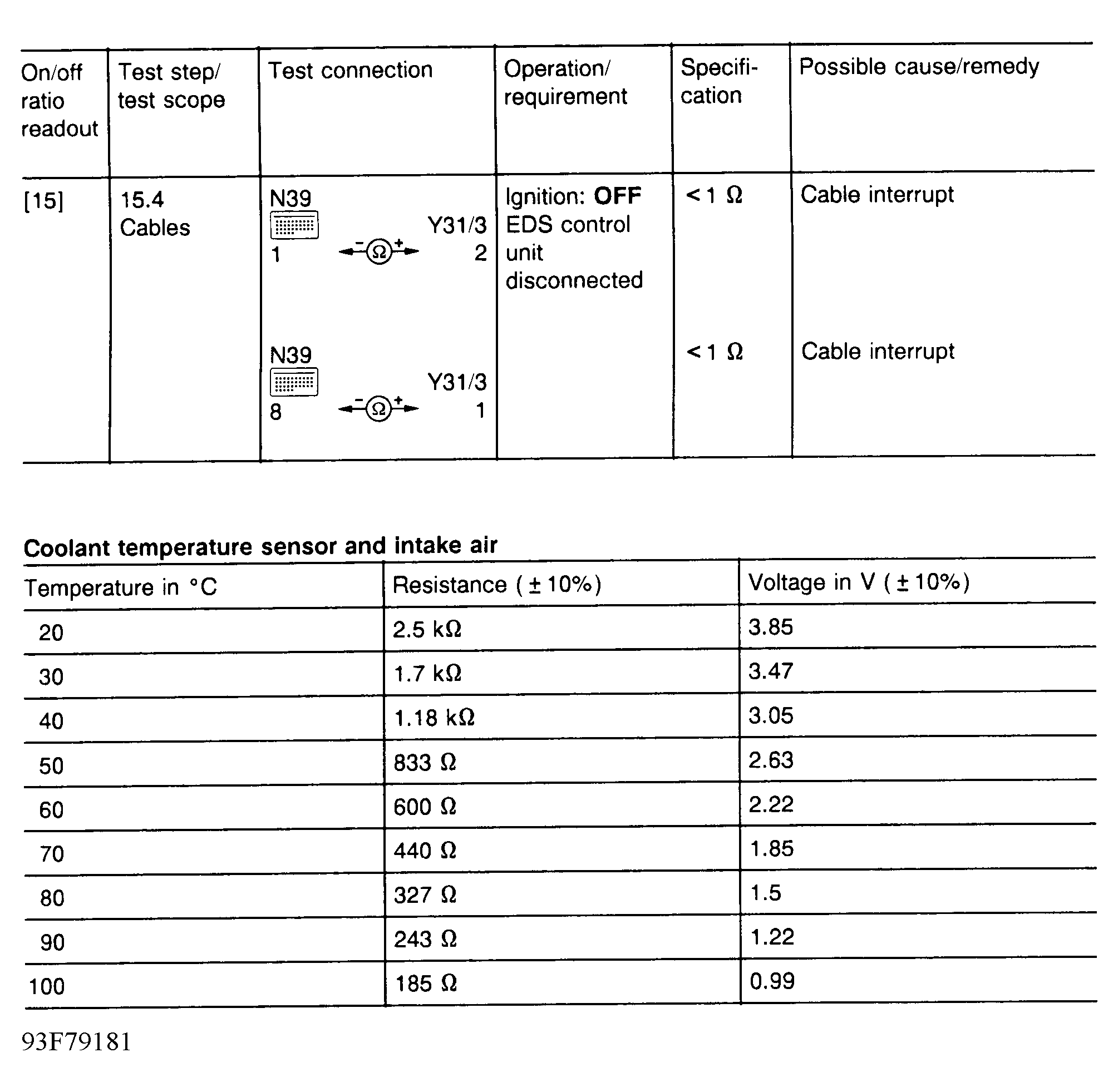

Fig 8: 2.5L Fault Code Diagnosis (8 of 9)

G93F79181

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

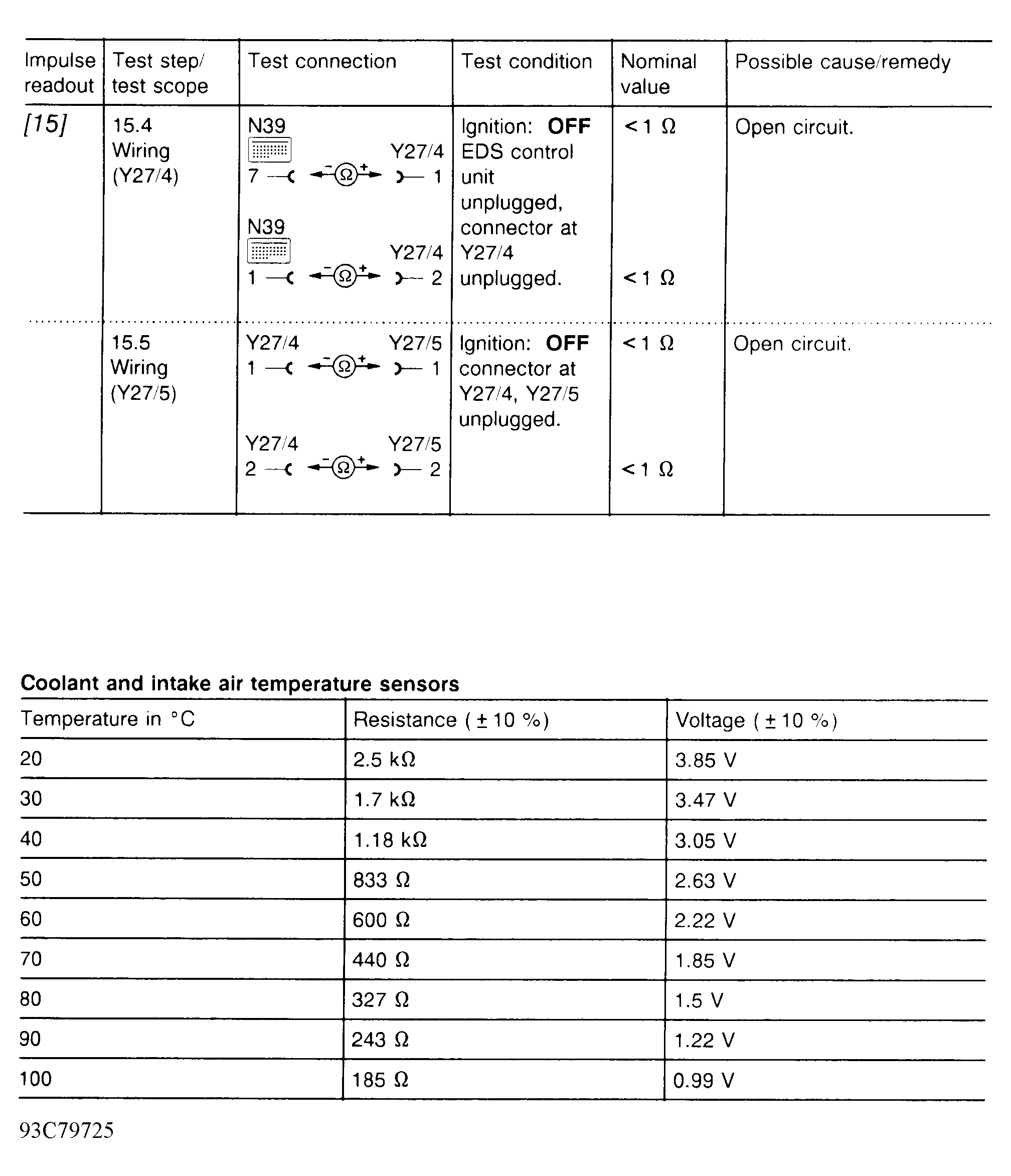

Fig 9: 2.5L Fault Code Diagnosis (9 of 9)

G93C79725

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
