Connector Identification (Section 22)

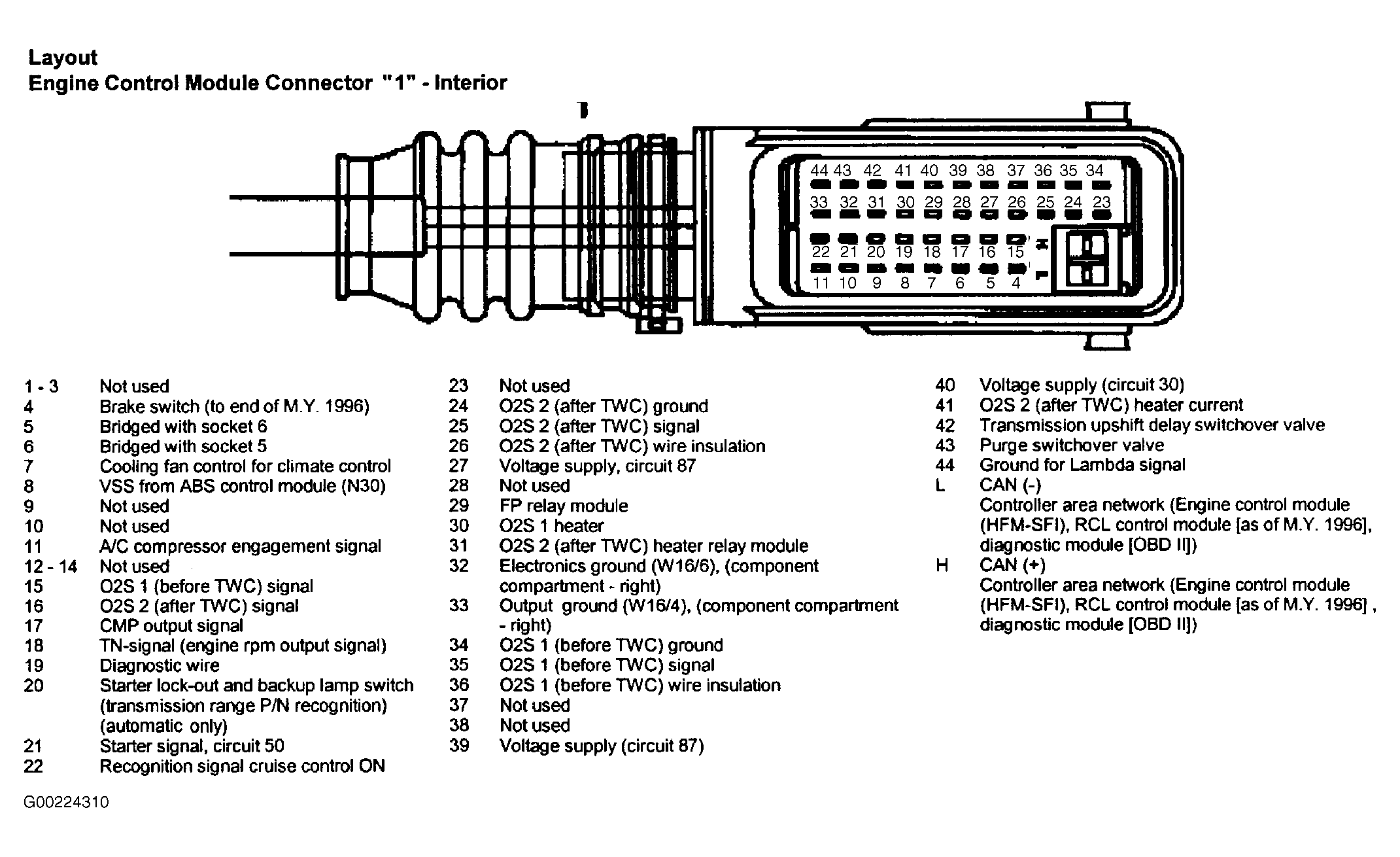

Fig 1: Engine Control Module Connector "1" (Interior) Pin Identification
G00224310Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

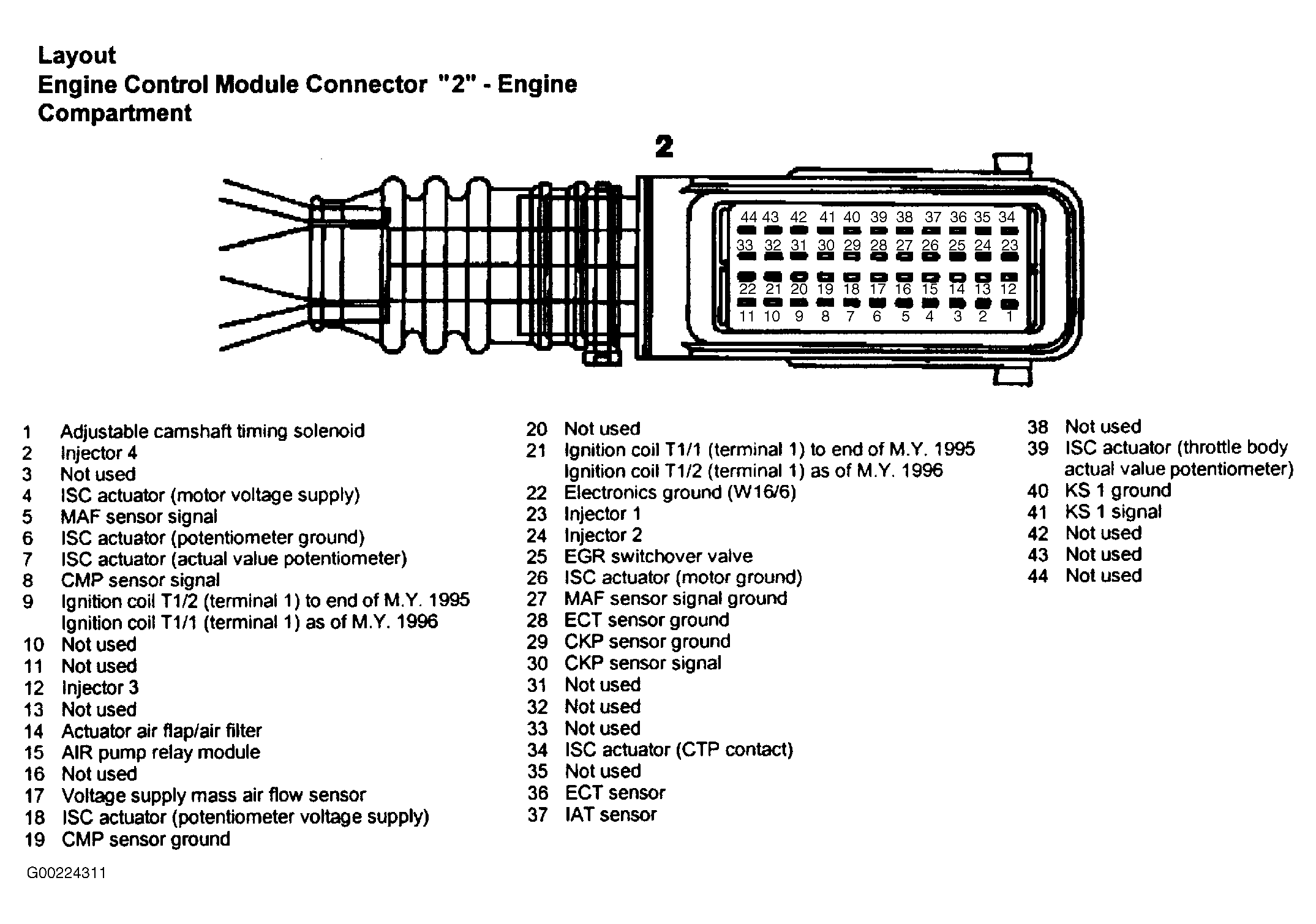

Fig 2: Engine Control Module Connector "2" (Engine) Pin Identification
G00224311Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
