Idle Speed Control (ISC) System Tests Illustrations (Section 25)

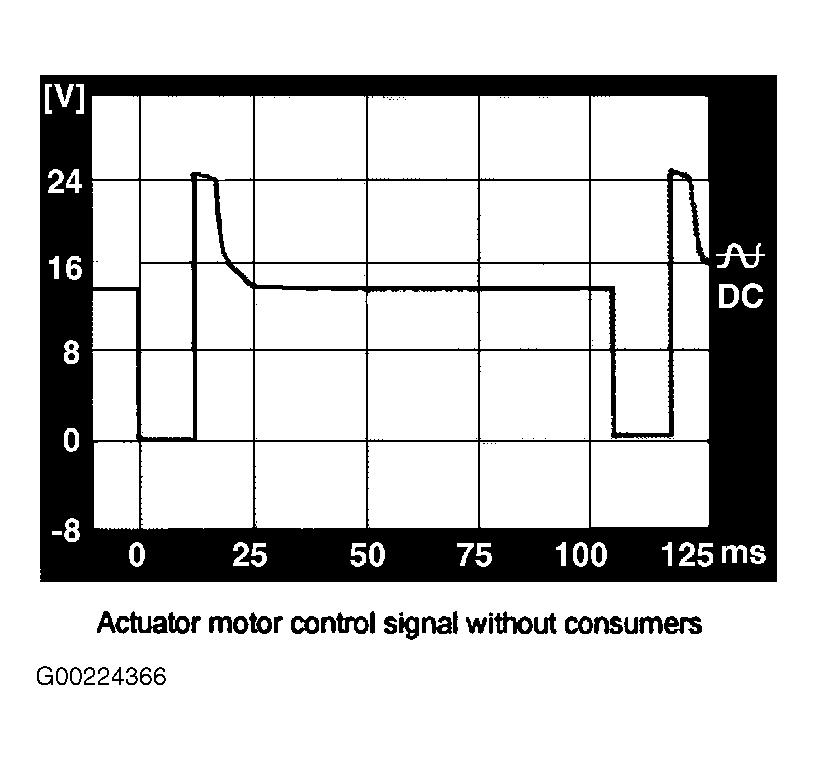

Fig 1: Idle Speed Control (ISC) Tests Illustrations - Section 25 (1 Of 2)
G00224366Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

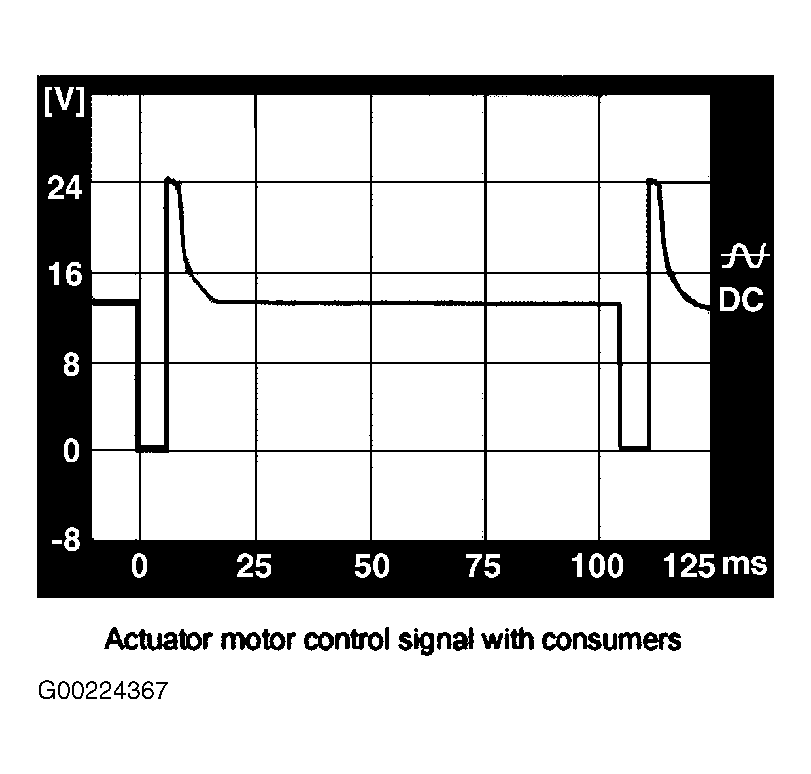

Fig 2: Idle Speed Control (ISC) Tests Illustrations - Section 25 (2 Of 2)
G00224367Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
