Ignition System Tests (Section 24)

NOTE: For aid using diagnostic charts, see USING DIAGNOSTIC CHARTS .

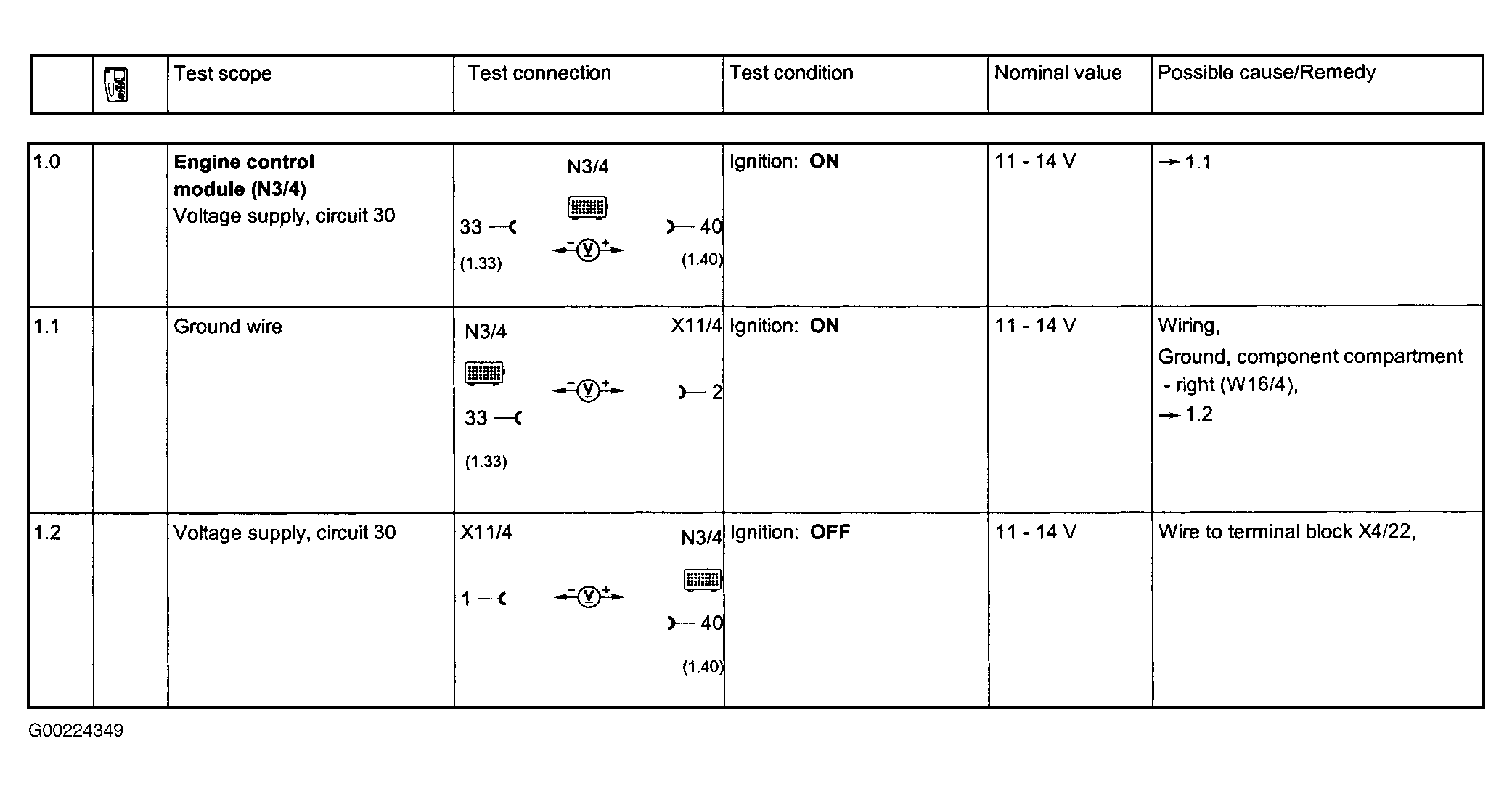

Fig 1: Ignition System Tests - Section 24 (Steps 1.0-1.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

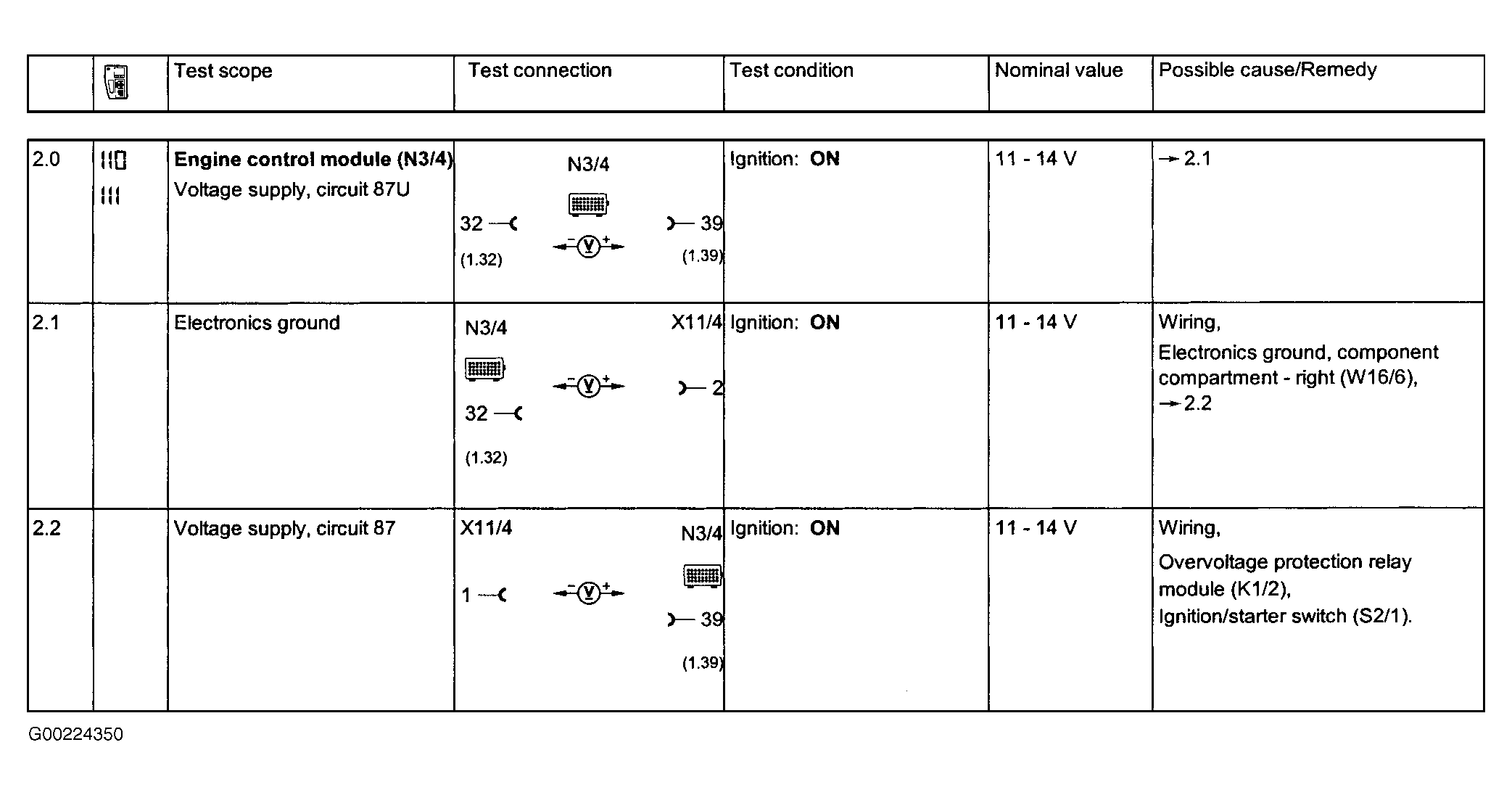

Fig 2: Ignition System Tests - Section 24 (Steps 2.0-2.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

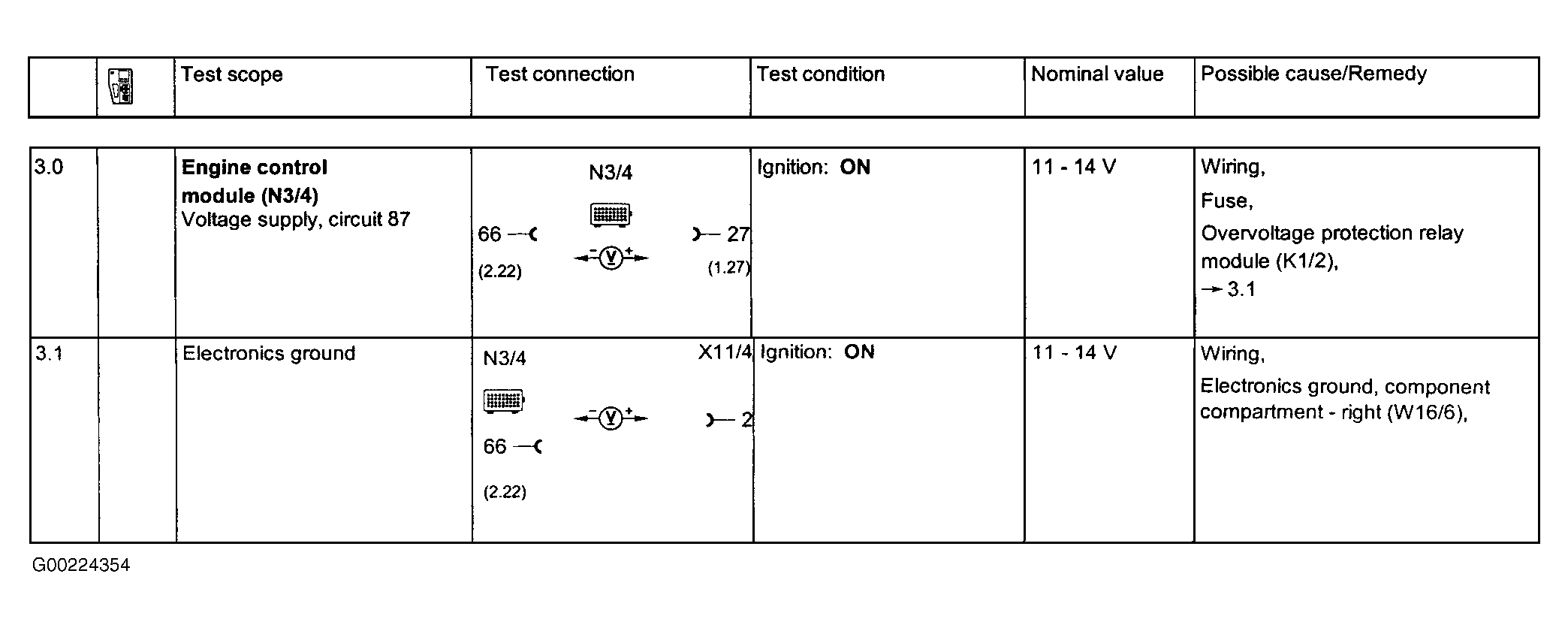

Fig 3: Ignition System Tests - Section 24 (Steps 3.0-3.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

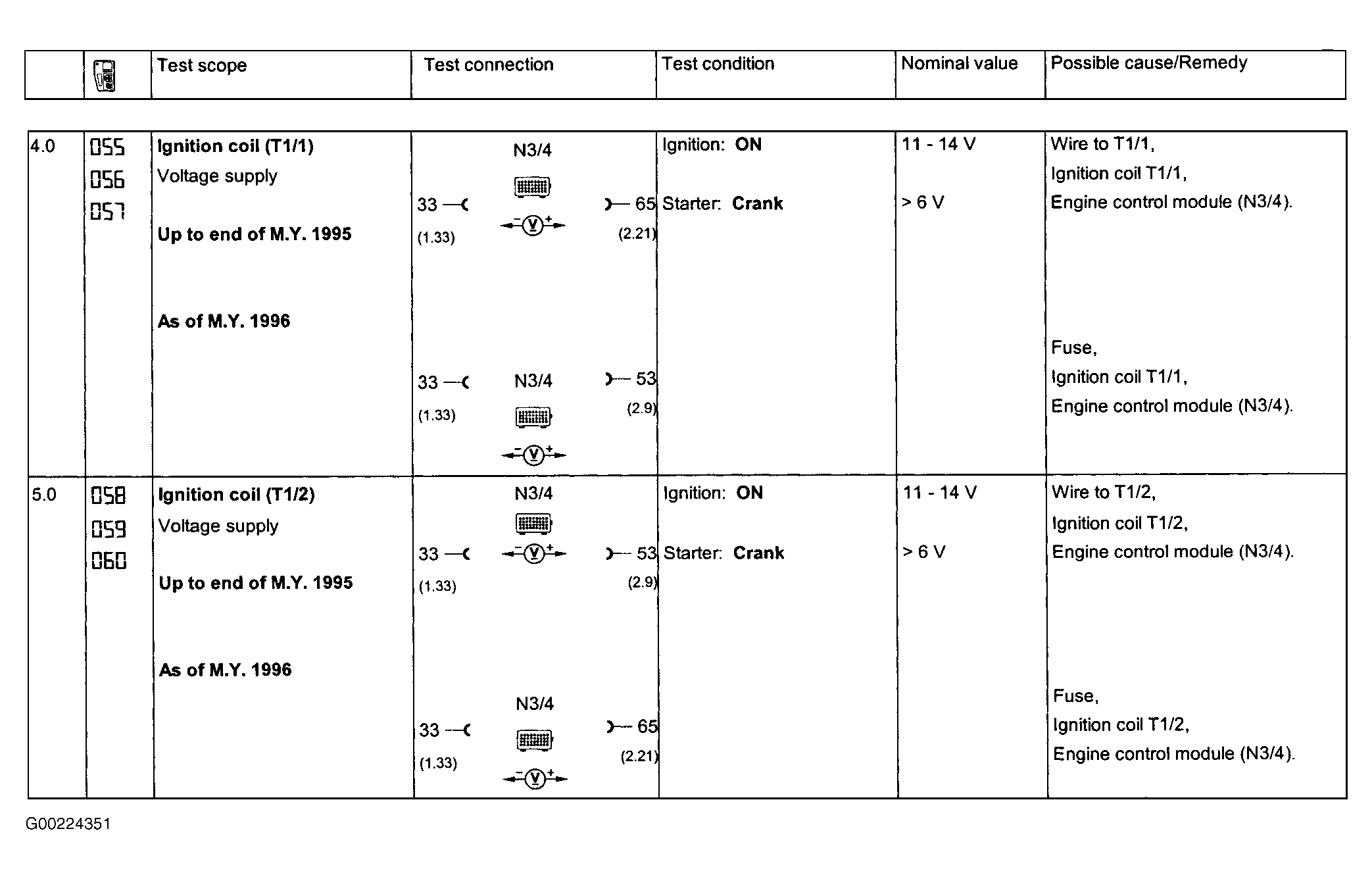

Fig 4: Ignition System Tests - Section 24 (Steps 4.0-5.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

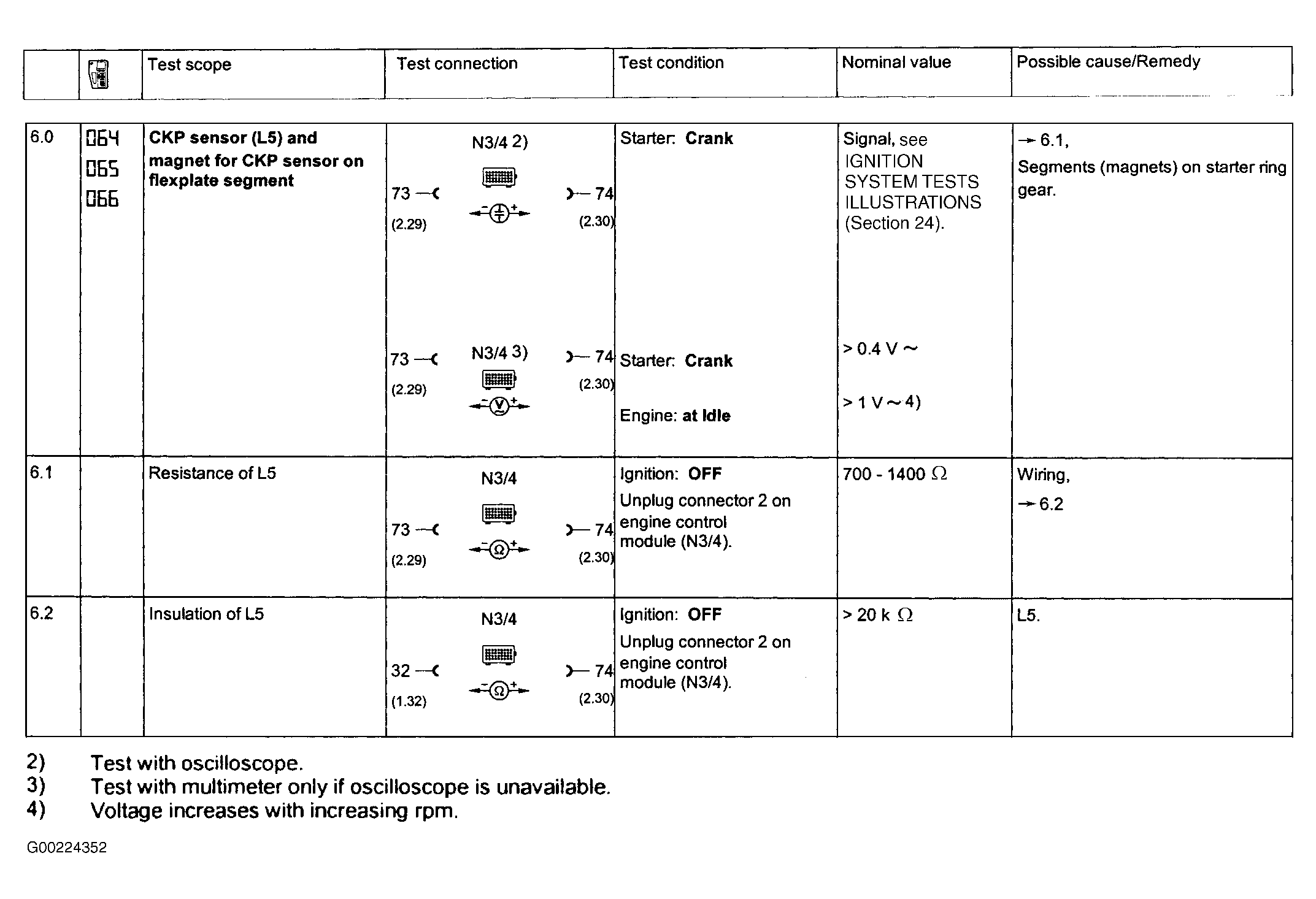

Fig 5: Ignition System Tests - Section 24 (Steps 6.0-6.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

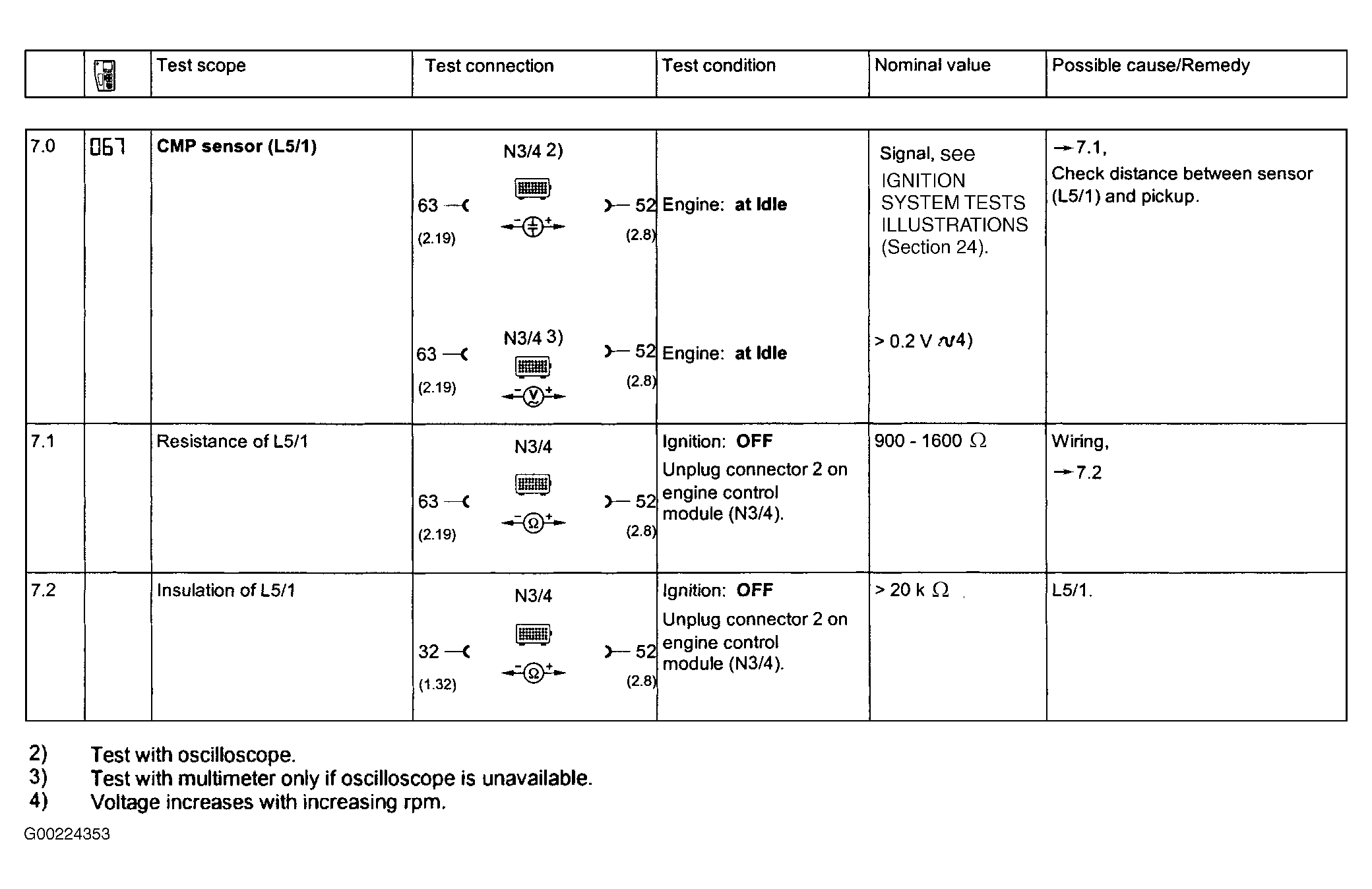

Fig 6: Ignition System Tests - Section 24 (Steps 7.0-7.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

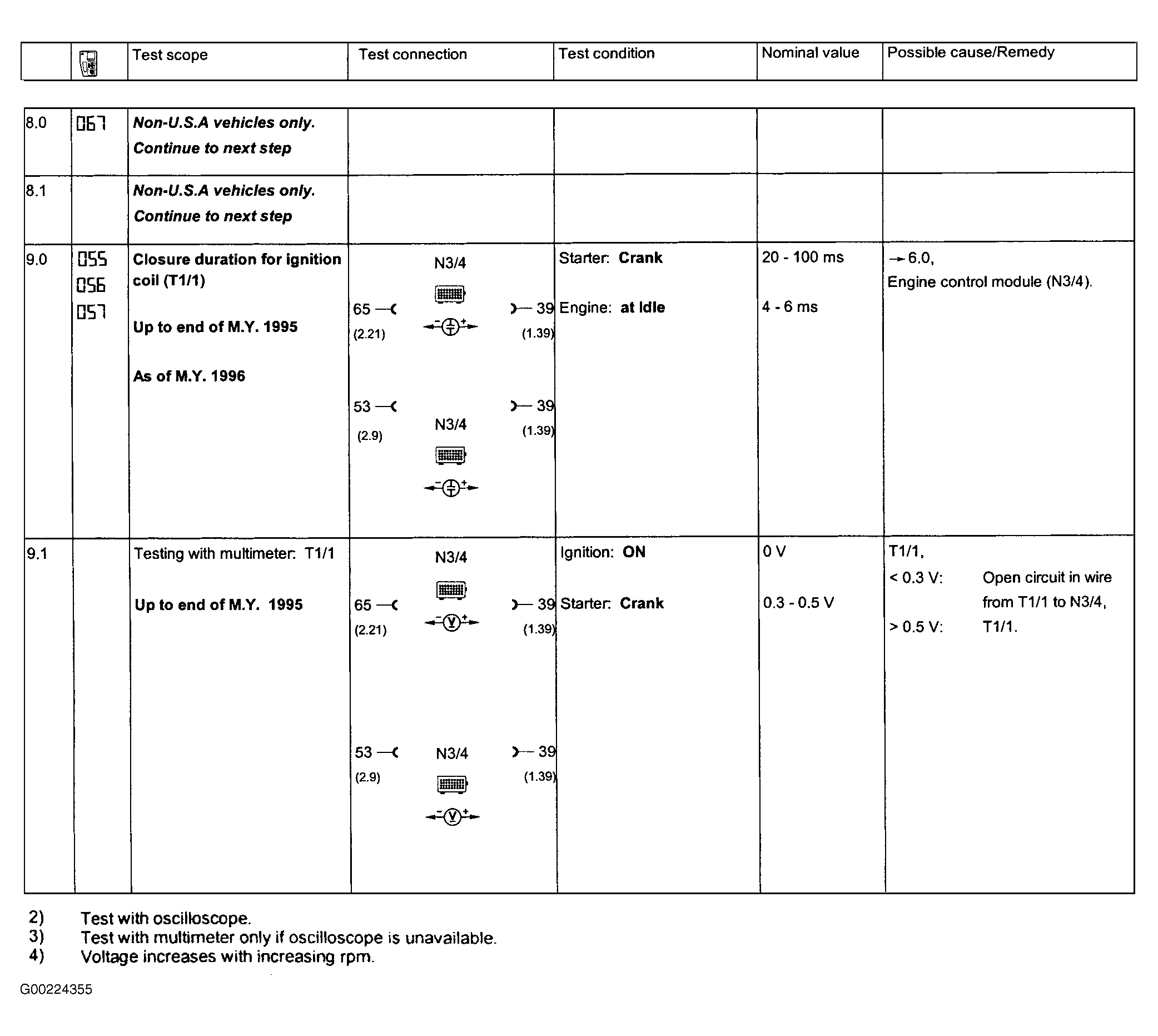

Fig 7: Ignition System Tests - Section 24 (Steps 8.0-9.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

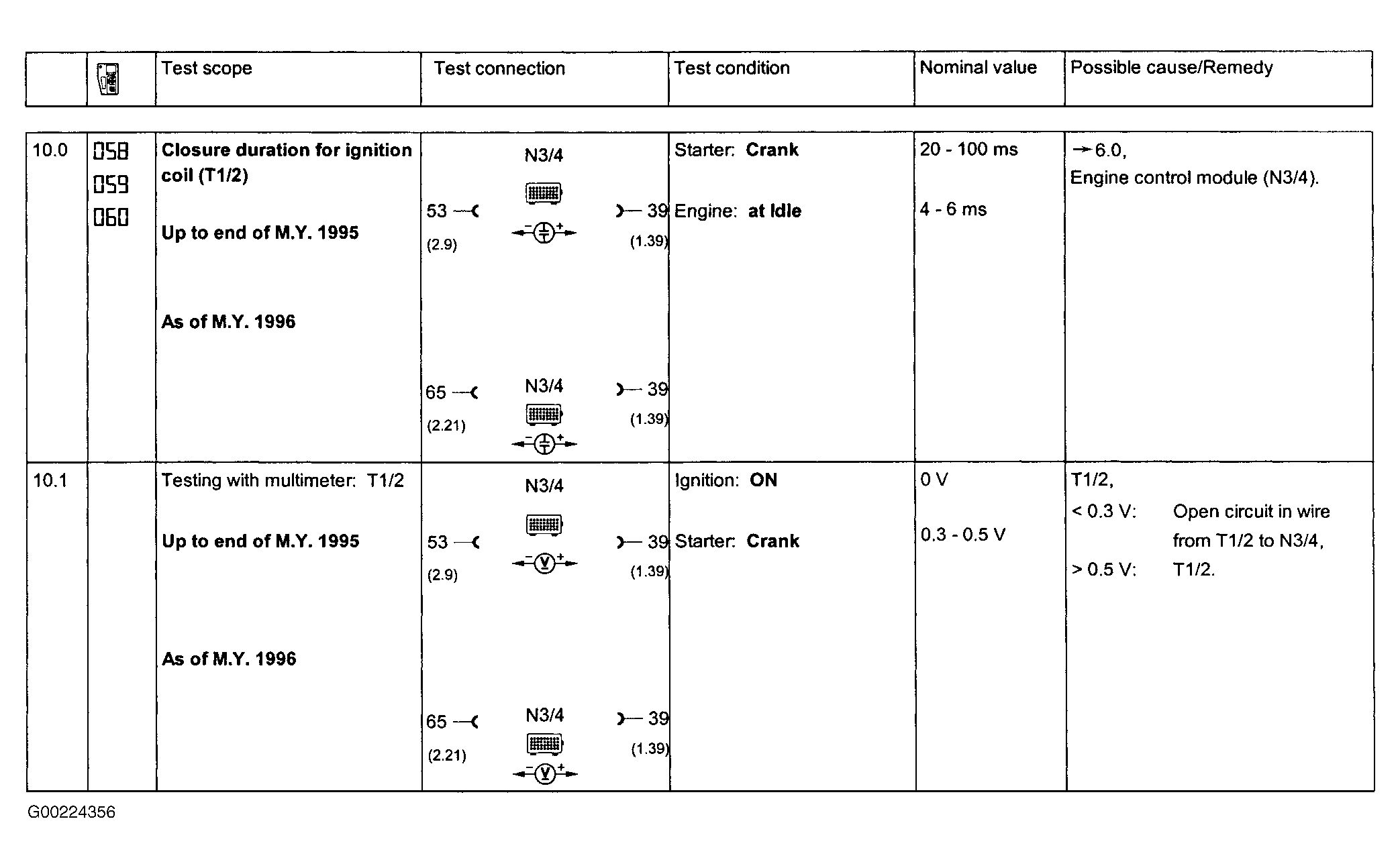

Fig 8: Ignition System Tests - Section 24 (Steps 10.0-10.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

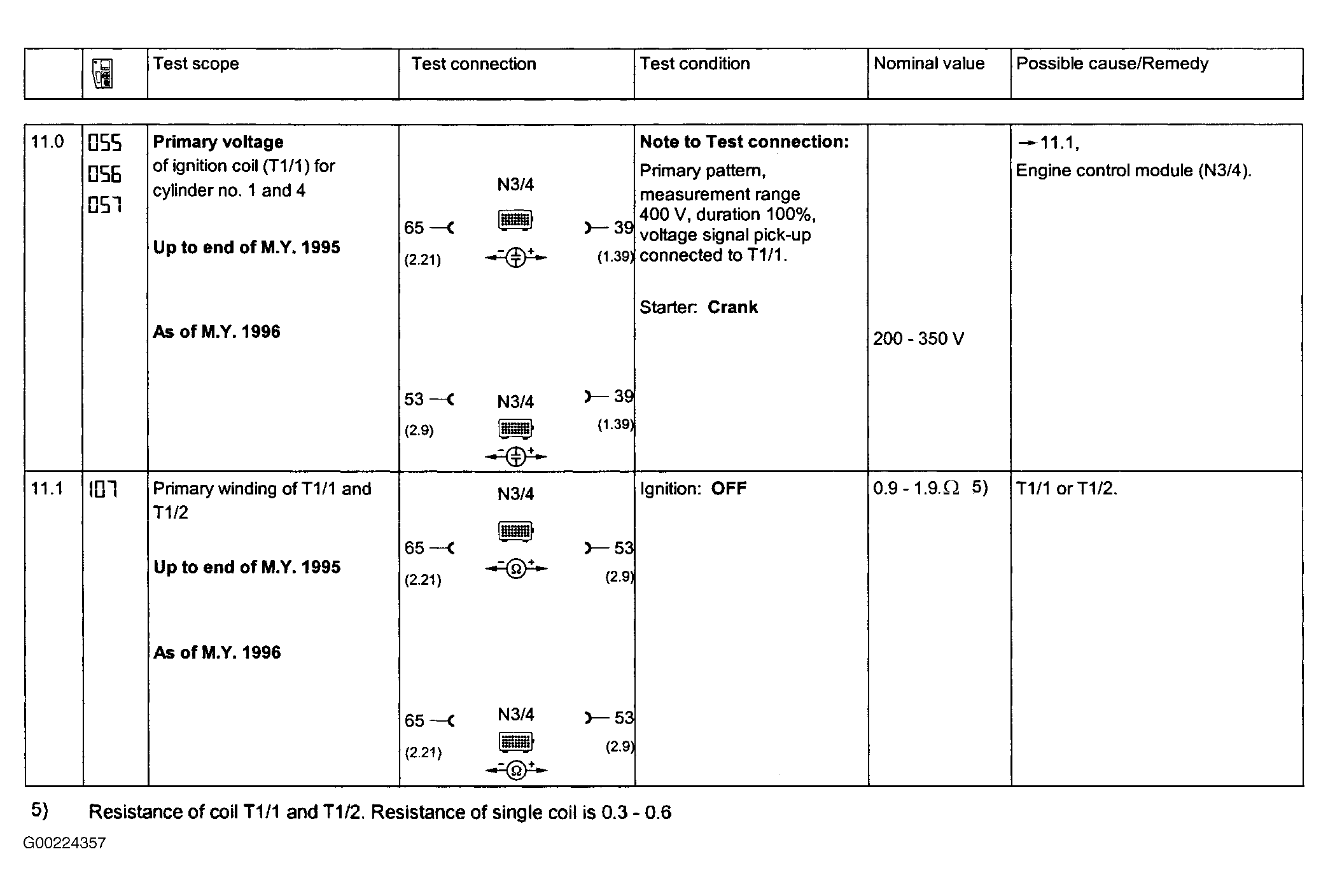

Fig 9: Ignition System Tests - Section 24 (Steps 11.0-11.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

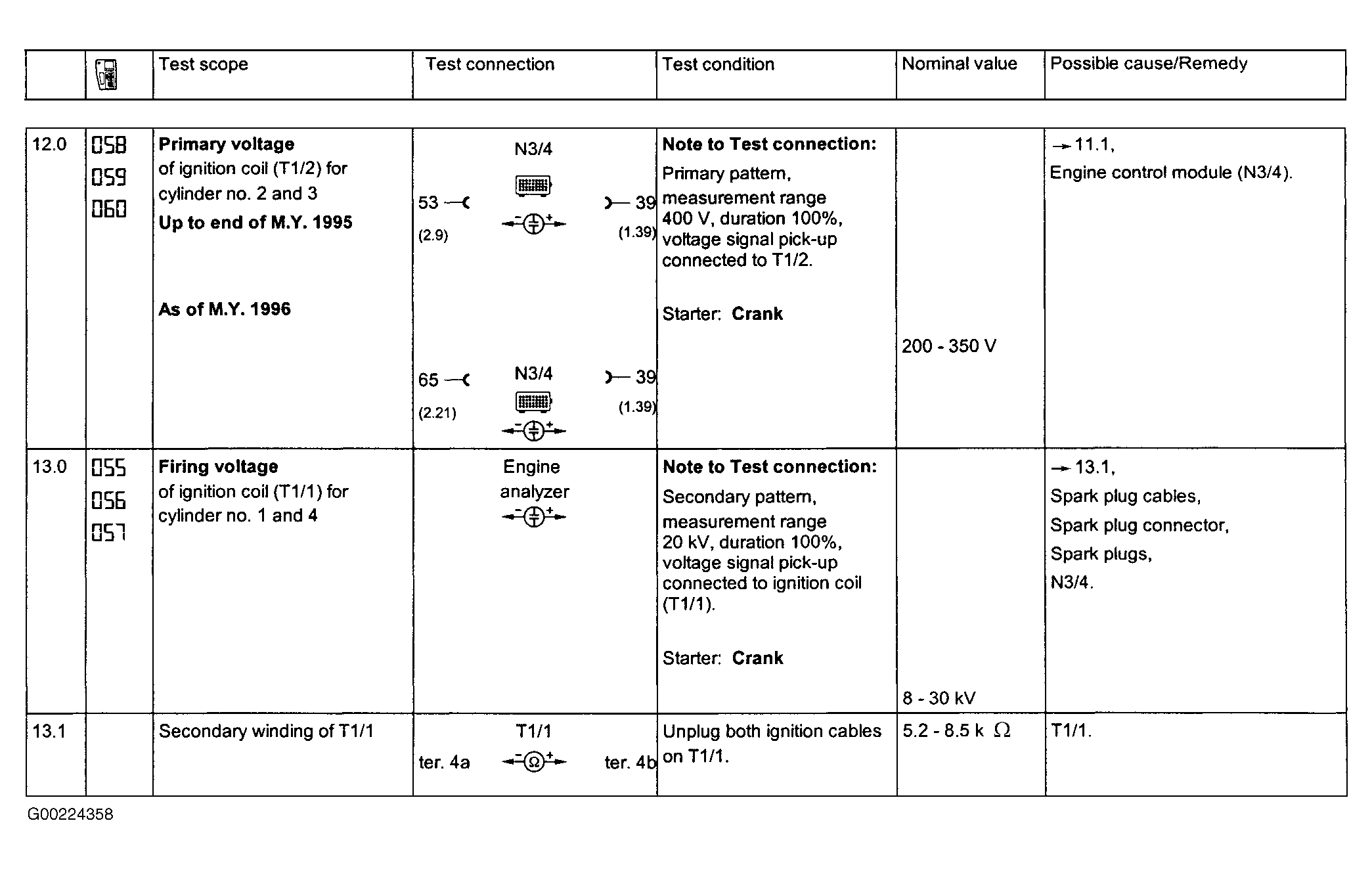

Fig 10: Ignition System Tests - Section 24 (Steps 12.0-13.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

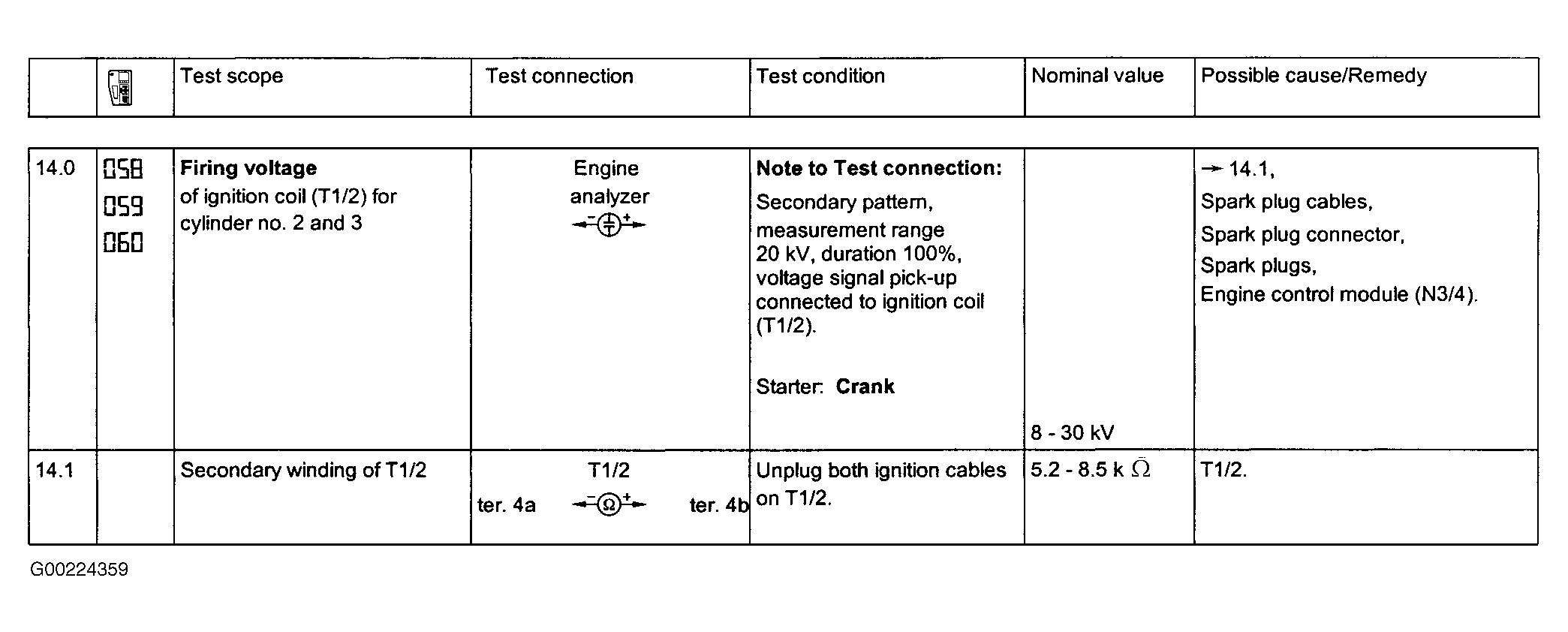

Fig 11: Ignition System Tests - Section 24 (Steps 14.0-14.1)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
