Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Left Front of Vehicle
G96J03786

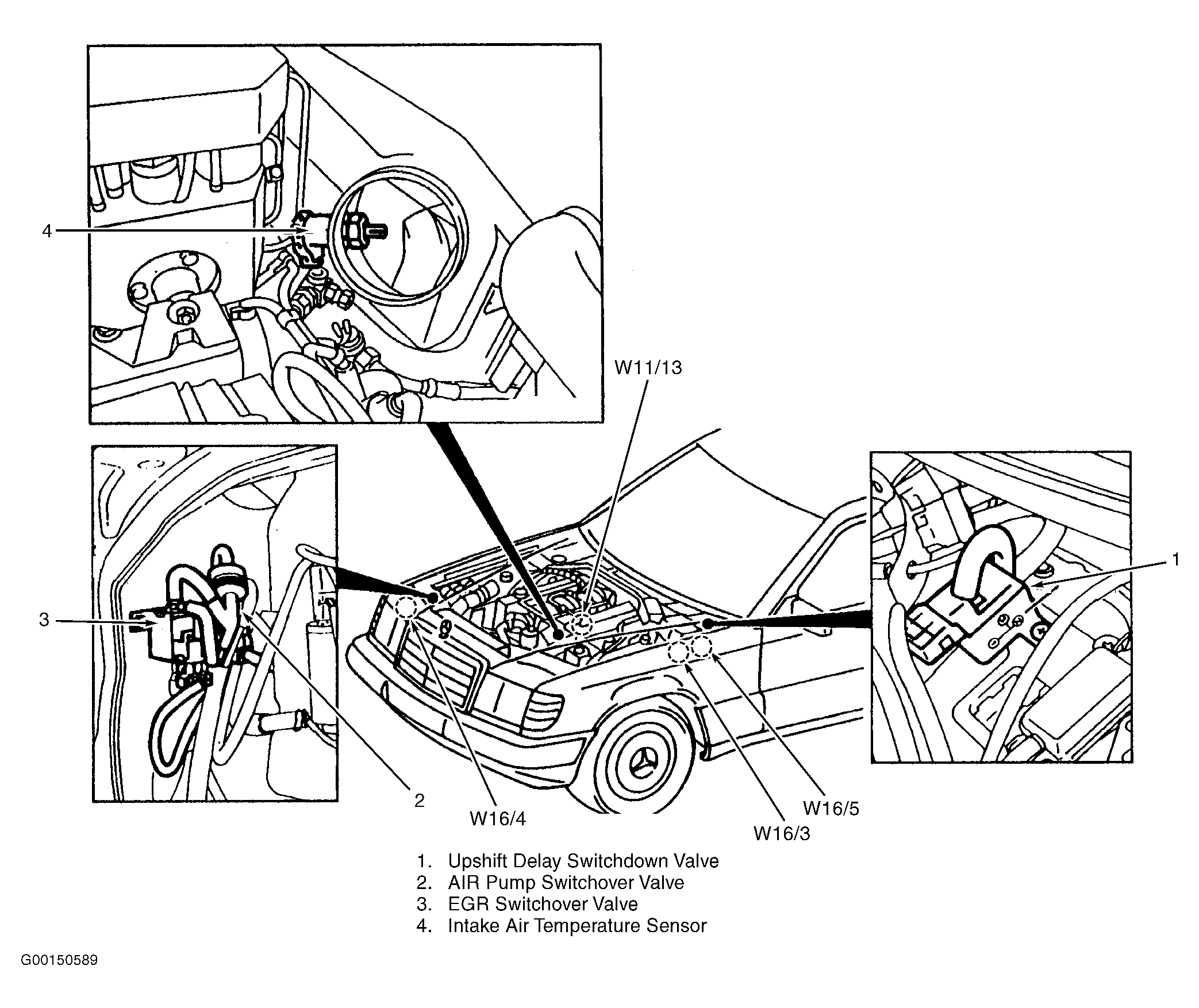

Fig 2: Left Front of Vehicle
G00150589

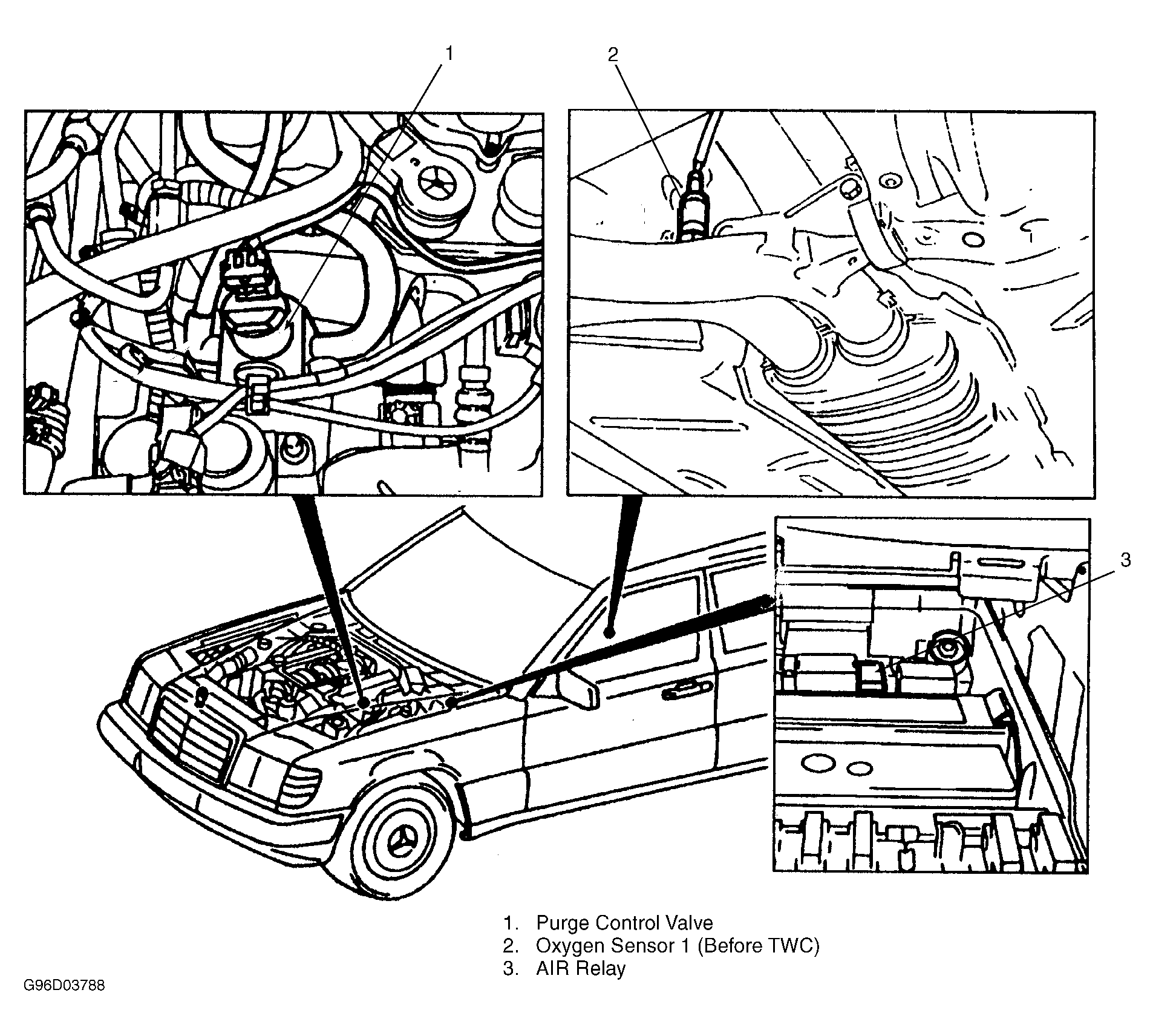

Fig 3: Left Front of Vehicle
G96D03788
