Complaint Related Diagnostic Chart (Section 12)

Before diagnosing by symptom, retrieve diagnostic trouble codes. See SELF-DIAGNOSTIC SYSTEM . If no diagnostic trouble codes exist, diagnose by symptom. See Fig 1.

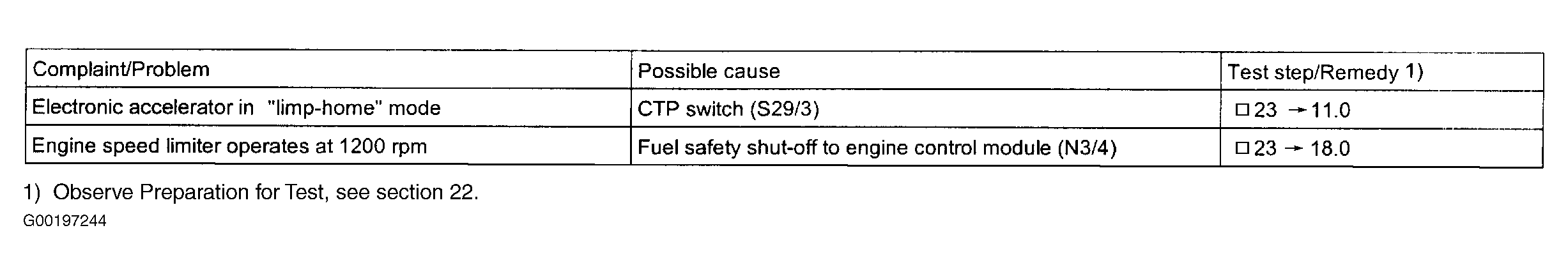

Fig 1: Complaint Related Diagnostic Chart (Section 12)
G00197244Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
