Vacuum Line Routing

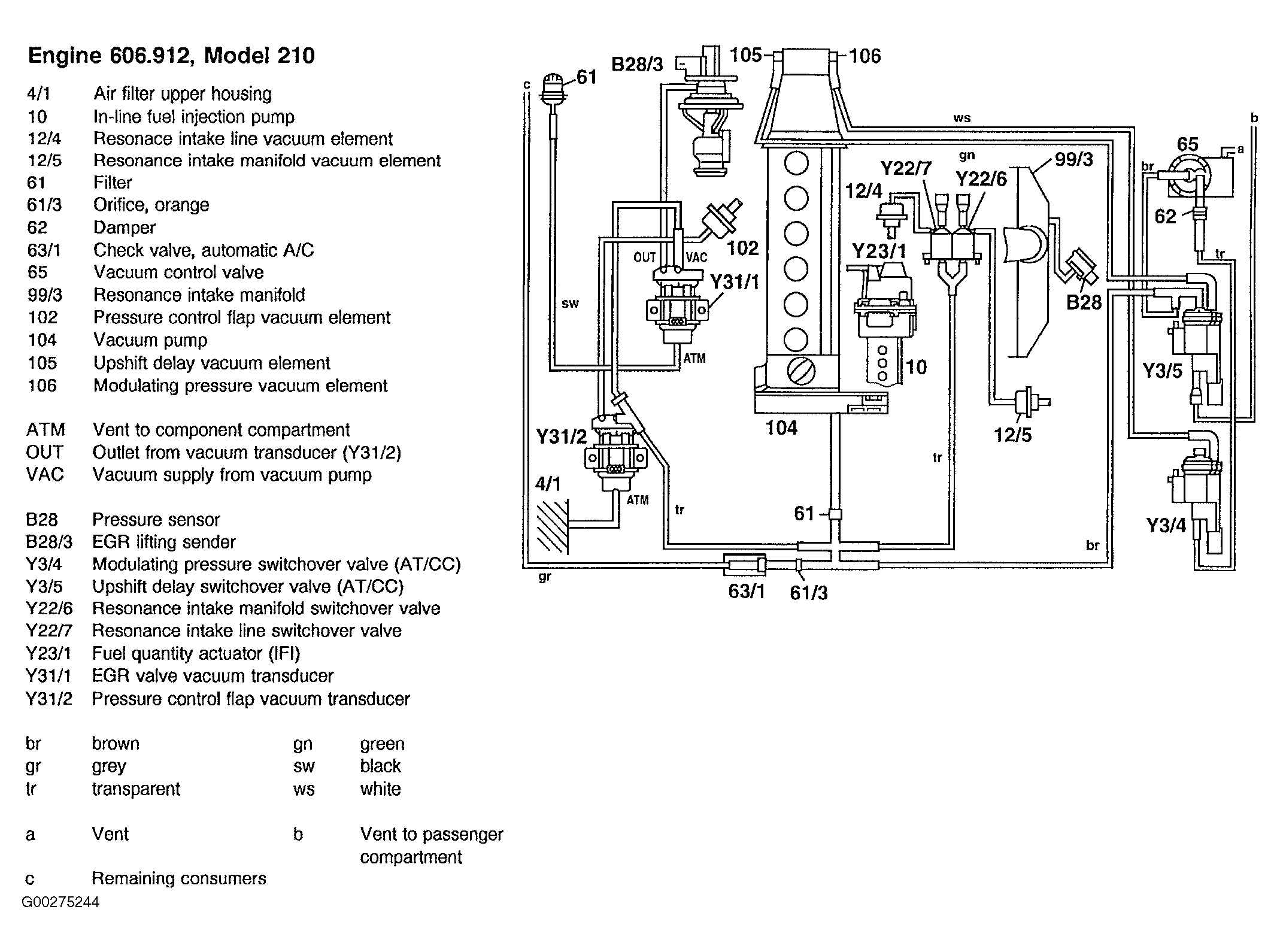

Fig 1: Vacuum Line Routing

G00275244

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
