Electrical System Tests - Section 23 (Steps 1.0-2.1)

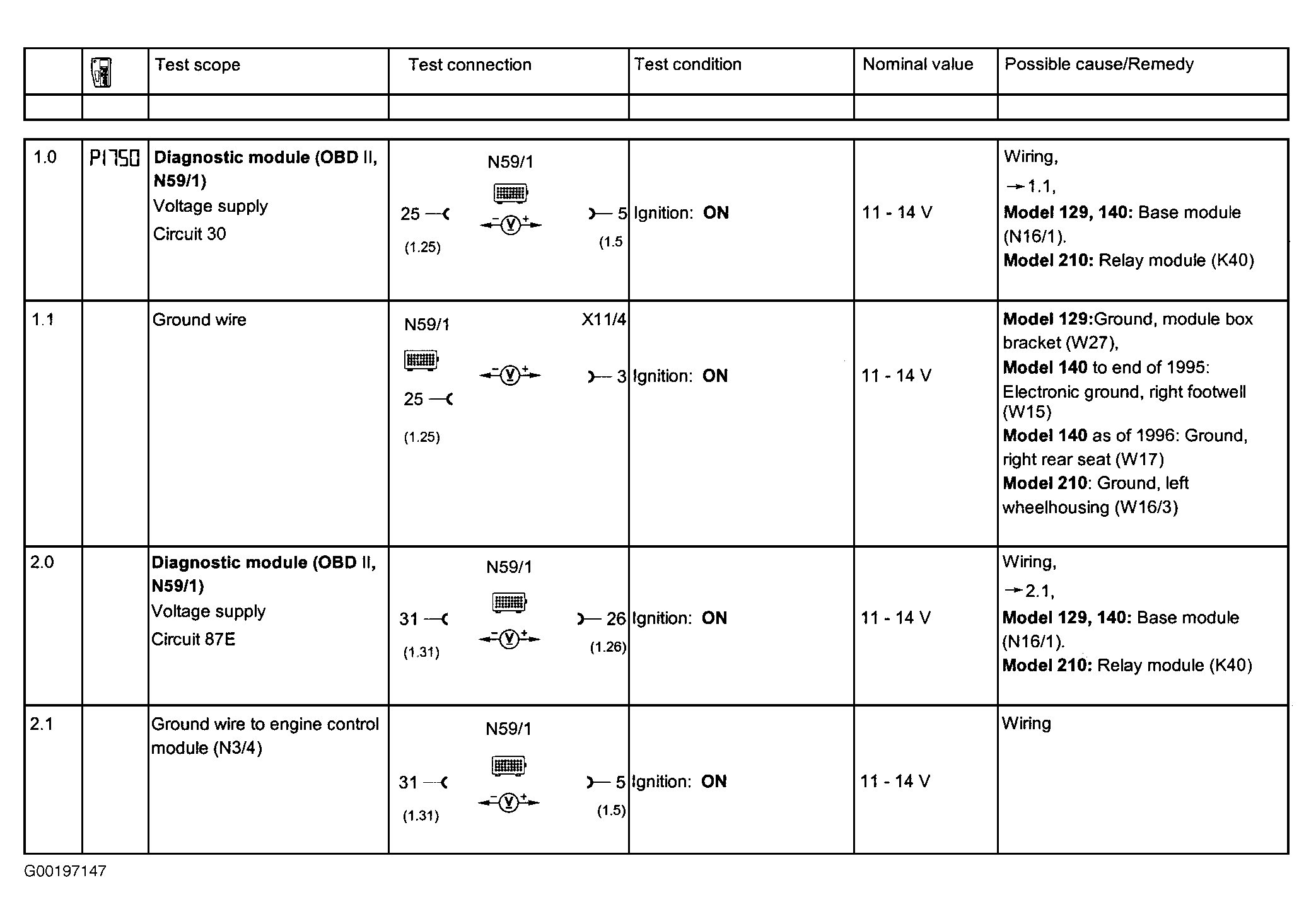

Fig 1: Electrical System Tests - Section 23 (Steps 1.0-2.1)
G00197147Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
