Symptom Index
Use symptom index charts to determine which system tests to perform. See
Fig 1
.

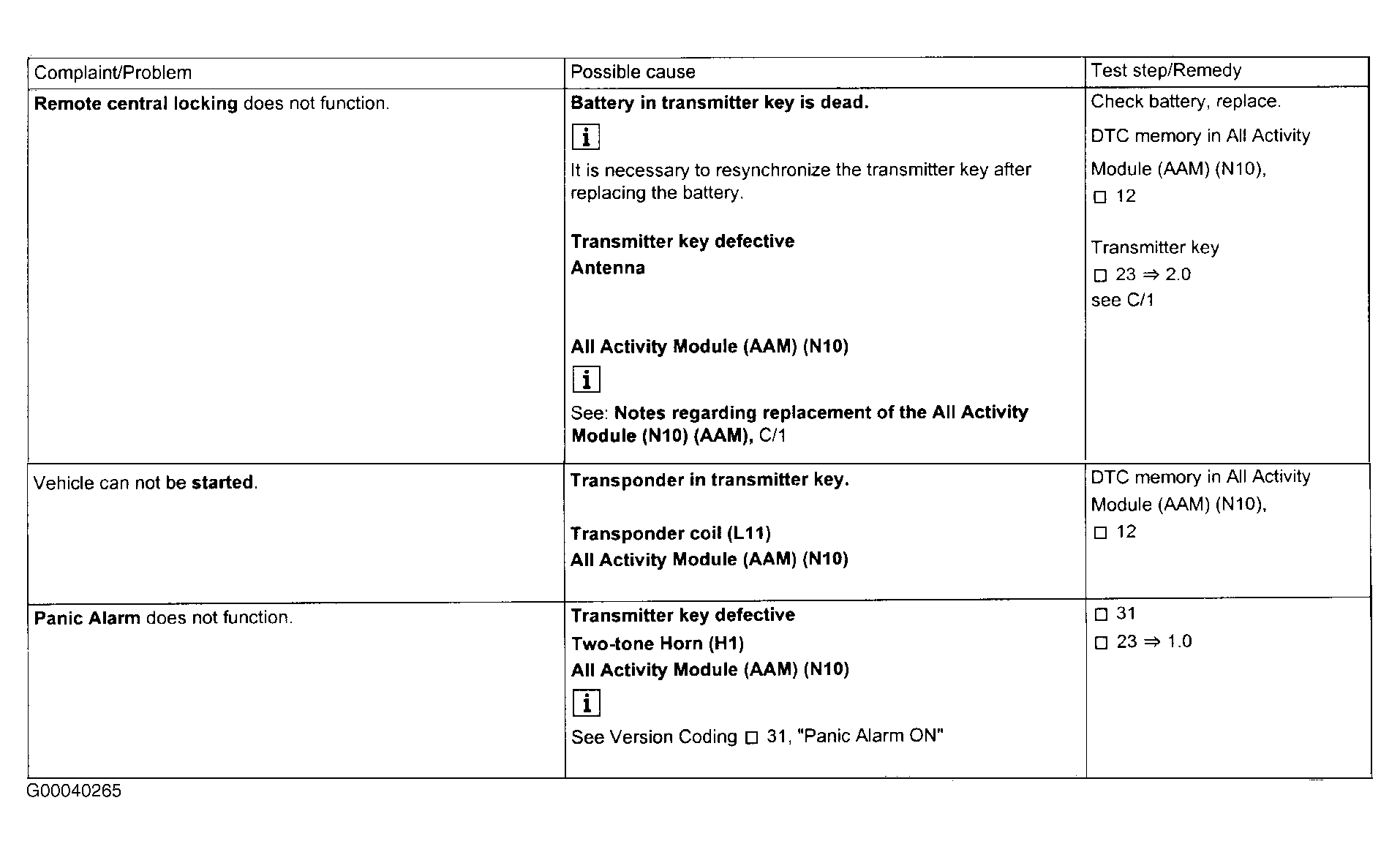

Fig 1: Symptom Index - Remote Control Locking
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

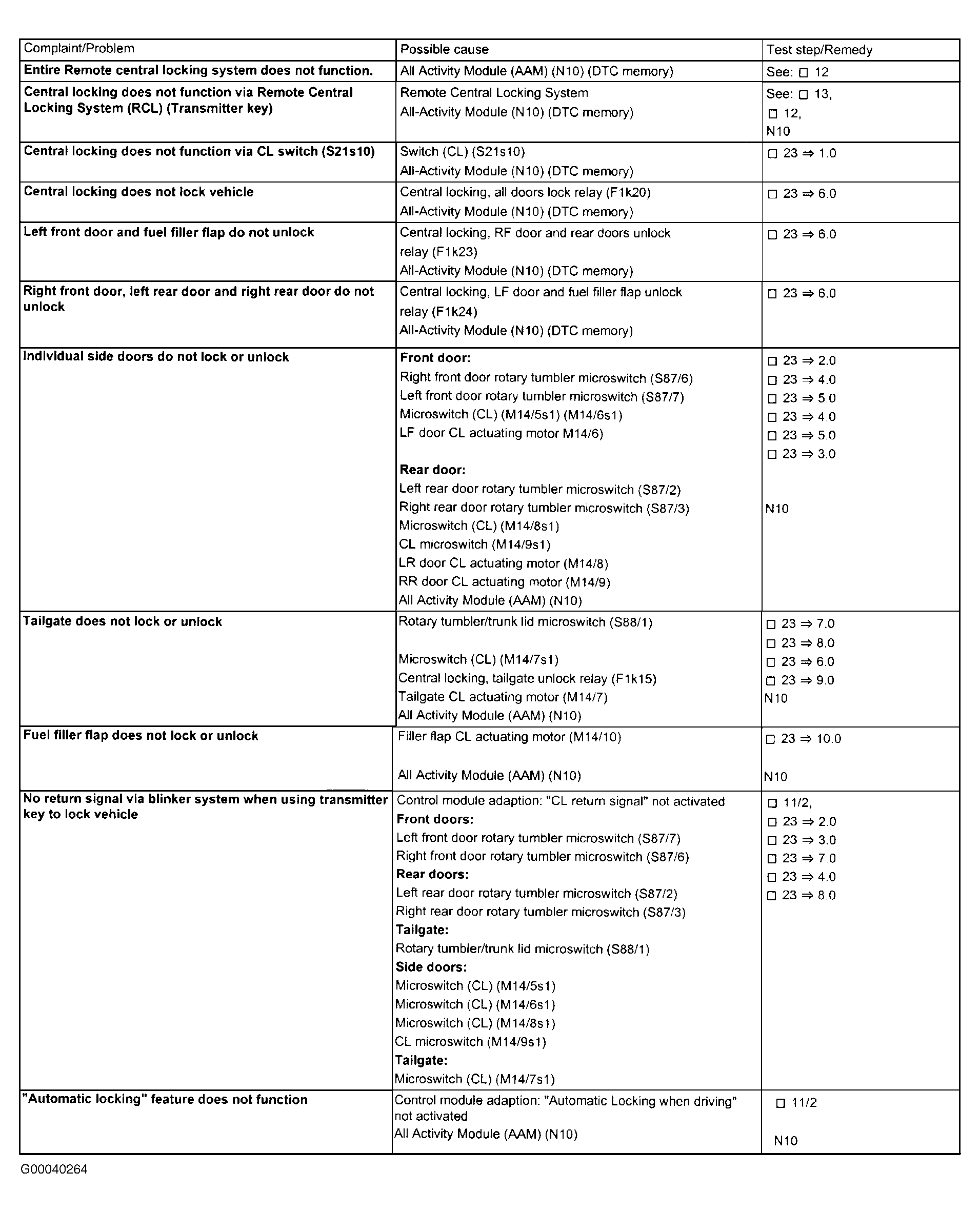

Fig 2: Symptom Index - Central Locking
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
