Vacuum Hose Diagram(S)

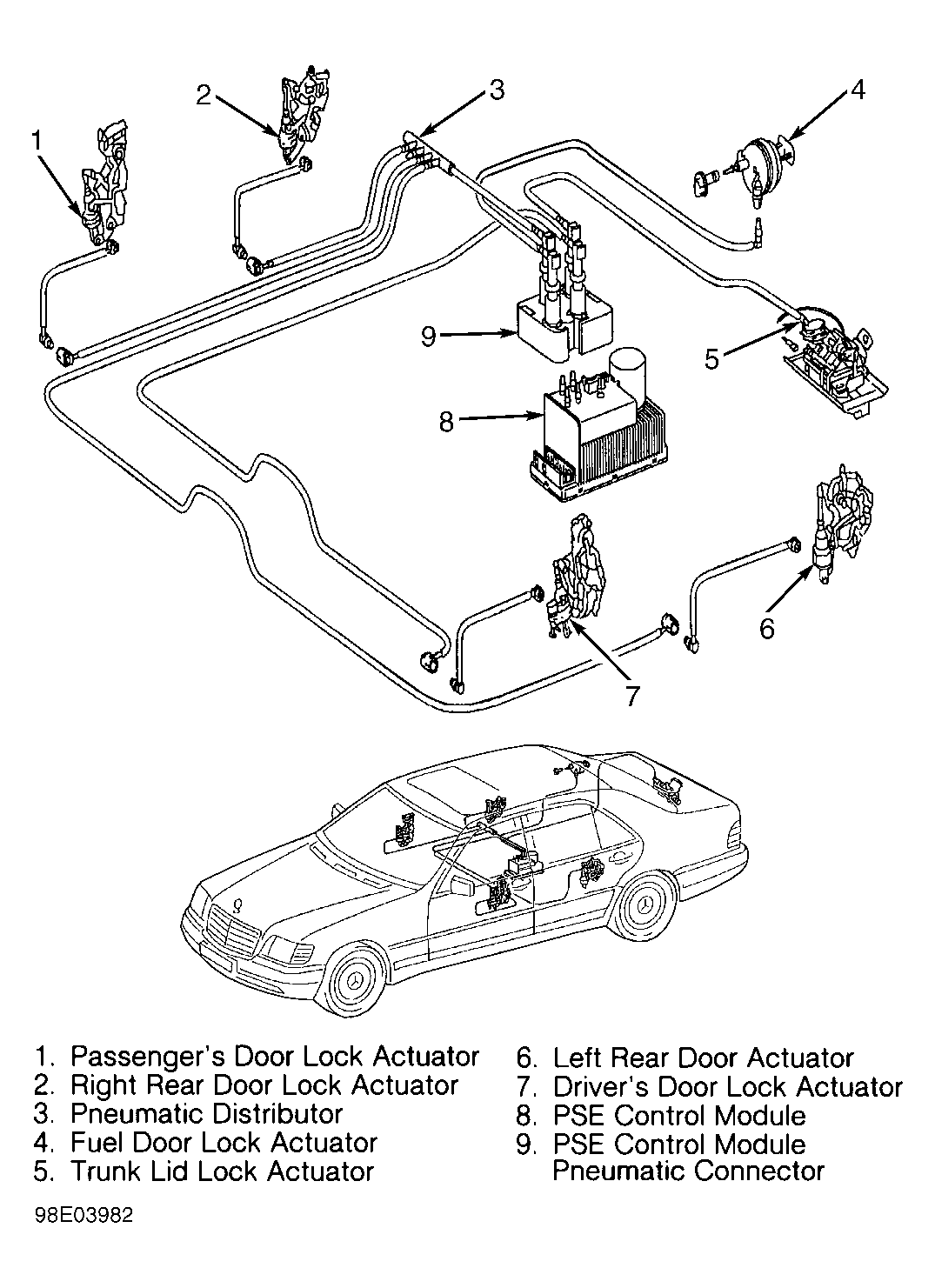

Fig 1: Central Locking System Vacuum Diagram (CL500, S320, S420 & S500)
G98E03982Courtesy of MERCEDES-BENZ OF NORTH AMERICA

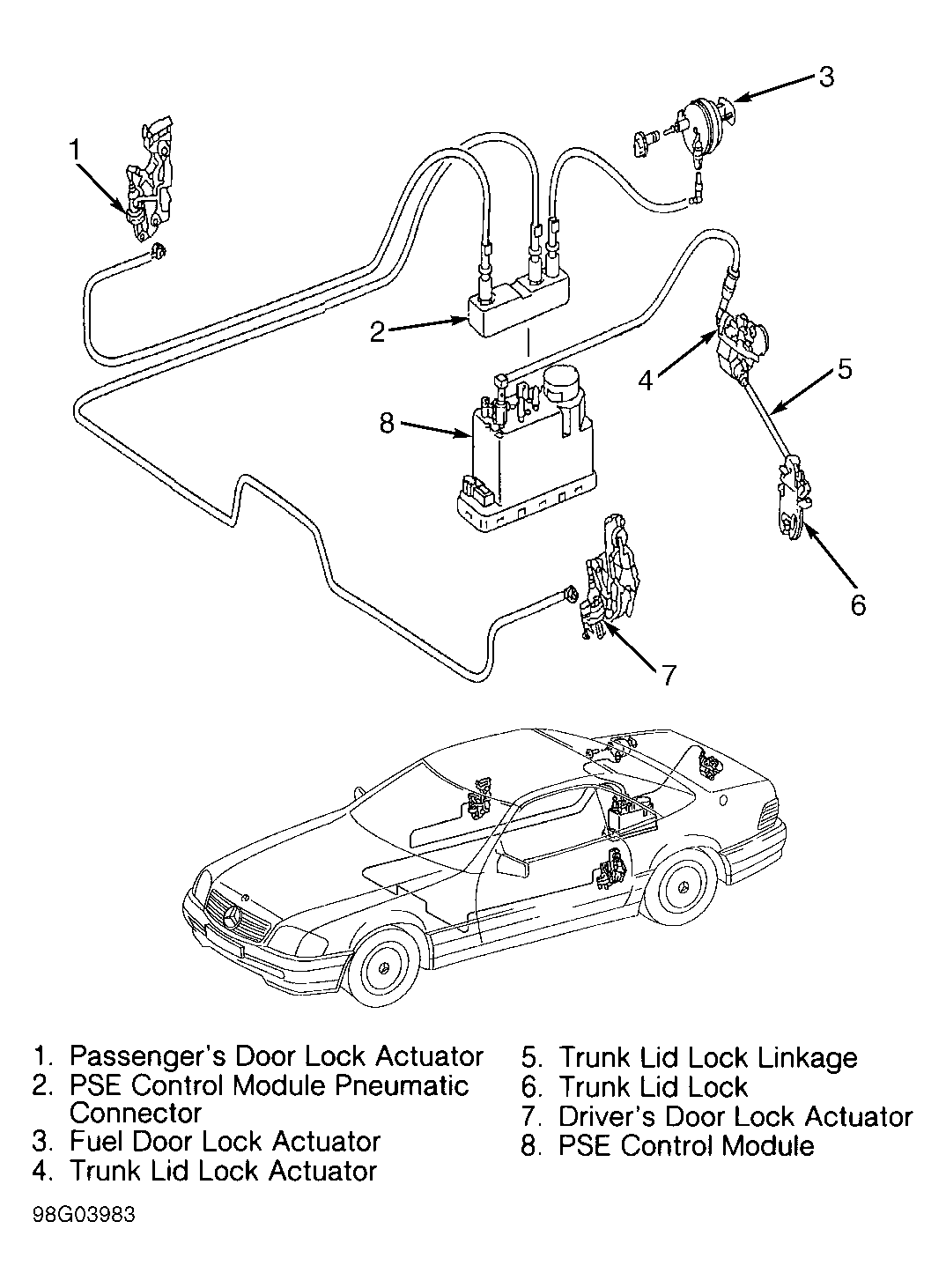

Fig 2: Central Locking System Vacuum Diagram (SL500)
G98G03983Courtesy of MERCEDES-BENZ OF NORTH AMERICA

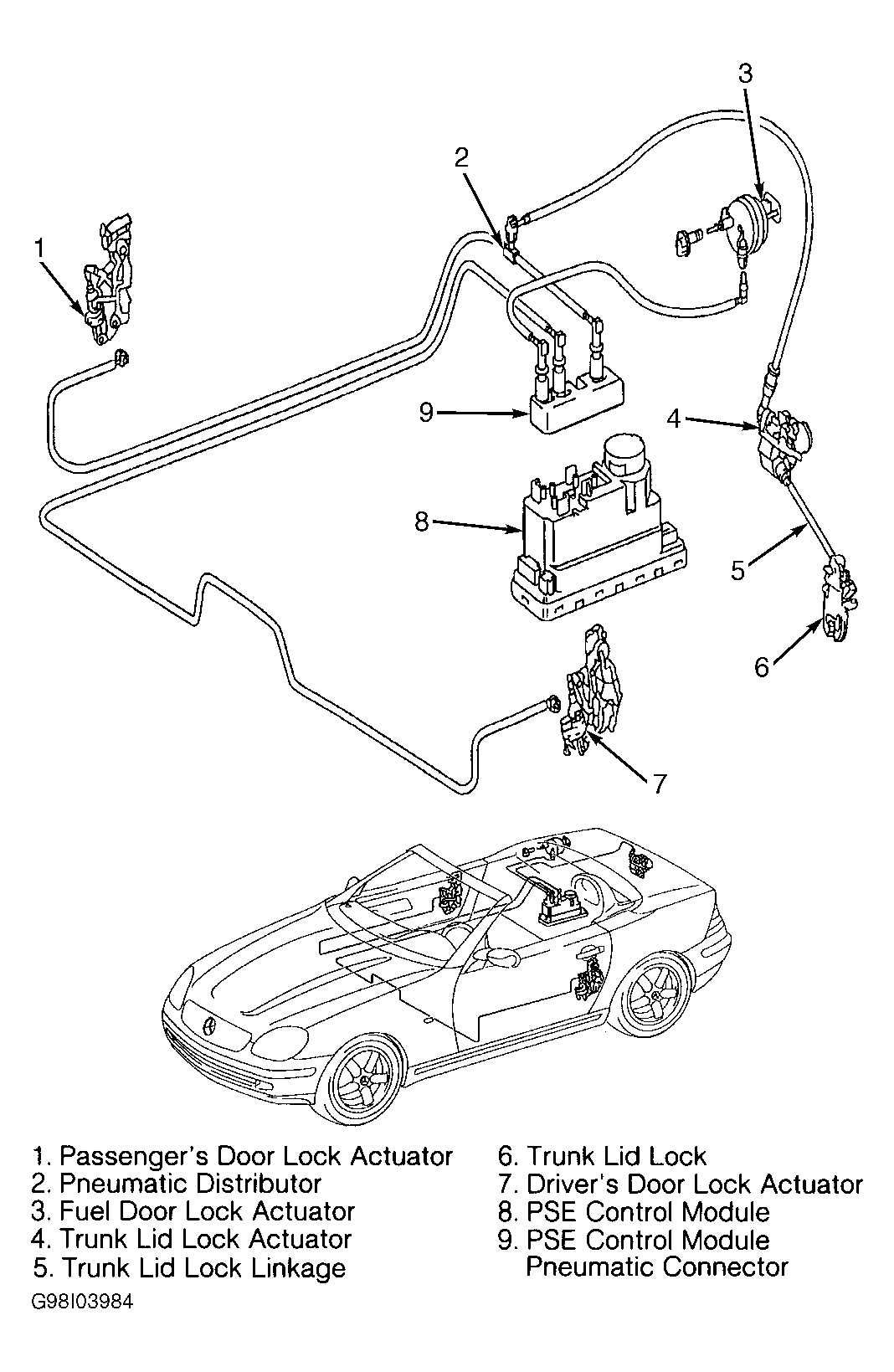

Fig 3: Central Locking System Vacuum Diagram (SLK230)
G98I03984Courtesy of MERCEDES-BENZ OF NORTH AMERICA

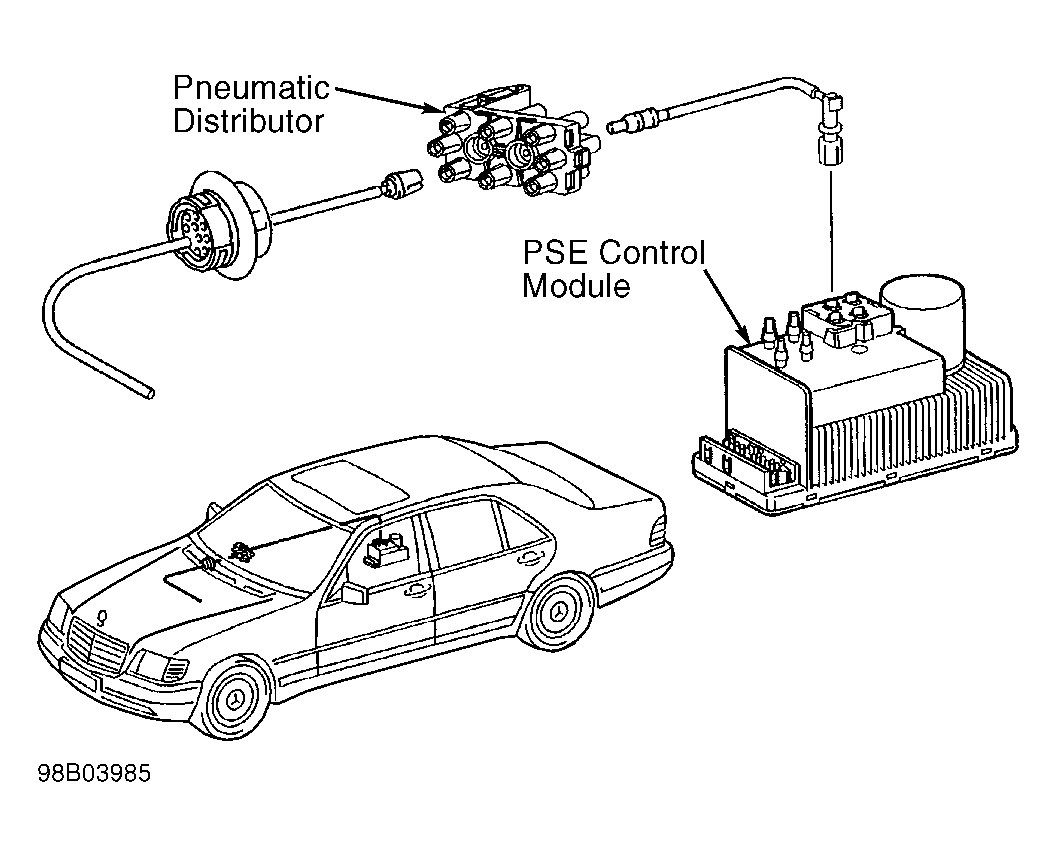

Fig 4: Manifold Vacuum Assist Vacuum Diagram (CL500, S320, S420 & S500)
G98B03985Courtesy of MERCEDES-BENZ OF NORTH AMERICA

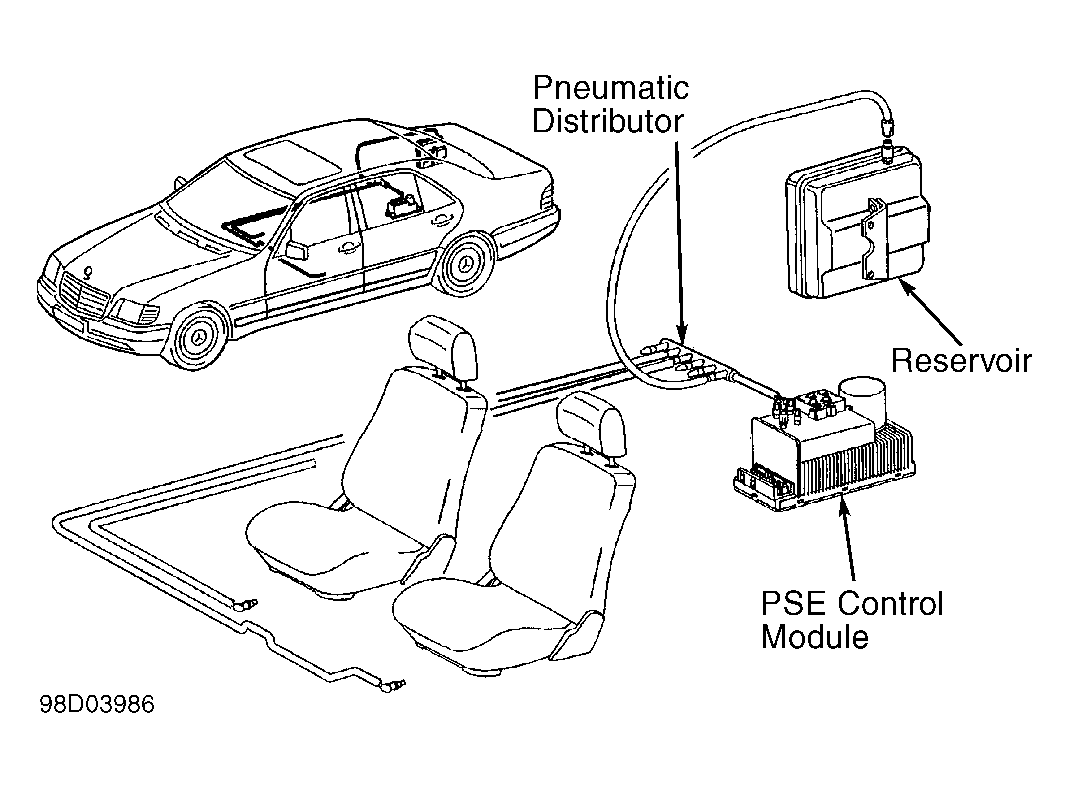

Fig 5: Orthopedic Seat Vacuum Diagram (CL500, S320, S420 & S500)
G98D03986Courtesy of MERCEDES-BENZ OF NORTH AMERICA

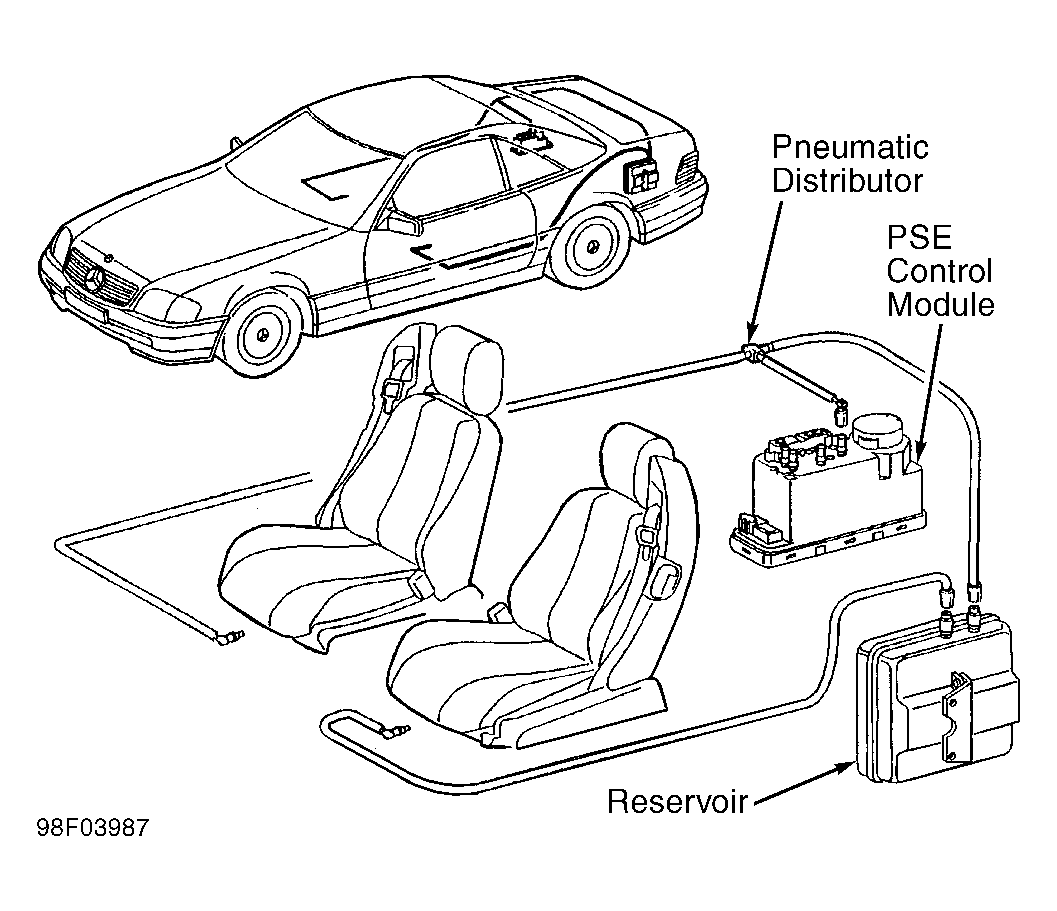

Fig 6: Orthopedic Seat Vacuum Diagram (SL500)
G98F03987Courtesy of MERCEDES-BENZ OF NORTH AMERICA

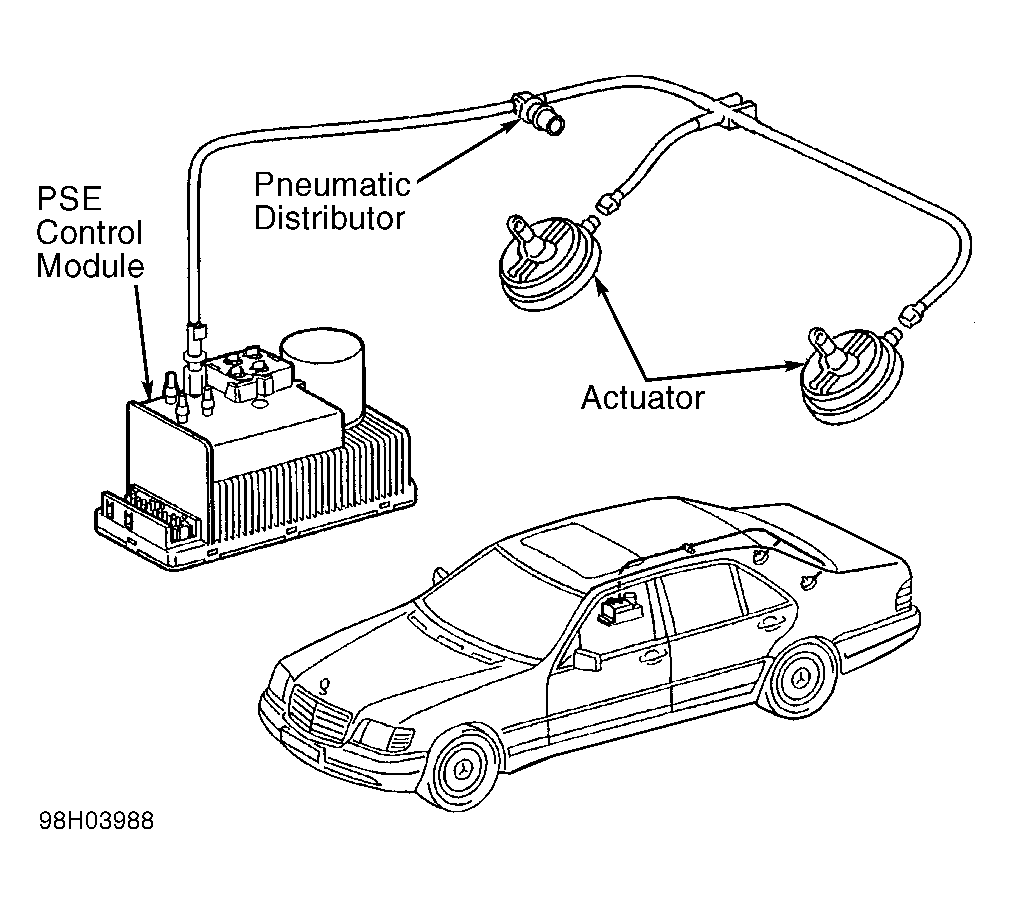

Fig 7: Retractable Rear Headrest Vacuum Diagram (CL500, S320, S420 & S500)
G98H03988Courtesy of MERCEDES-BENZ OF NORTH AMERICA
Fig 8: Remote Trunk Release Vacuum Diagram (CL500, S320, S420 & S500)
G98J03989Courtesy of MERCEDES-BENZ OF NORTH AMERICA

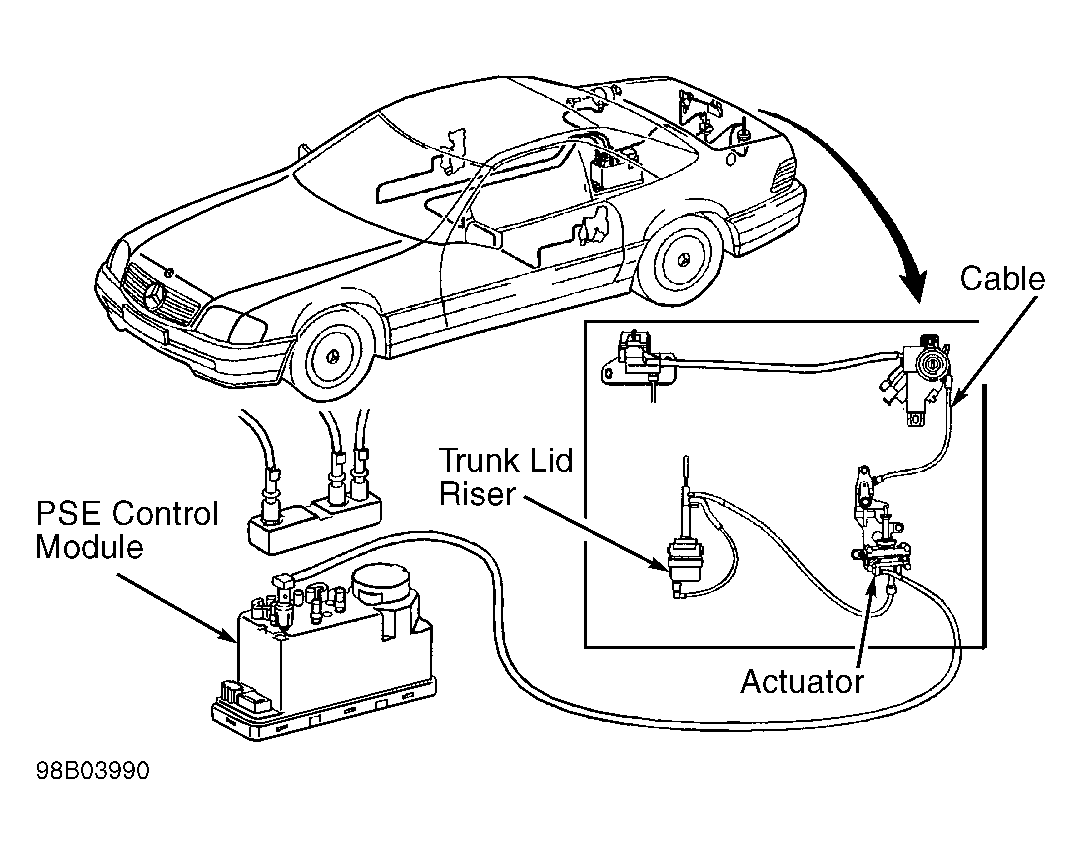

Fig 9: Remote Trunk Release Vacuum Diagram (SL500)
G98B03990Courtesy of MERCEDES-BENZ OF NORTH AMERICA
