BAS Control Module Function: Notes
NOTE:

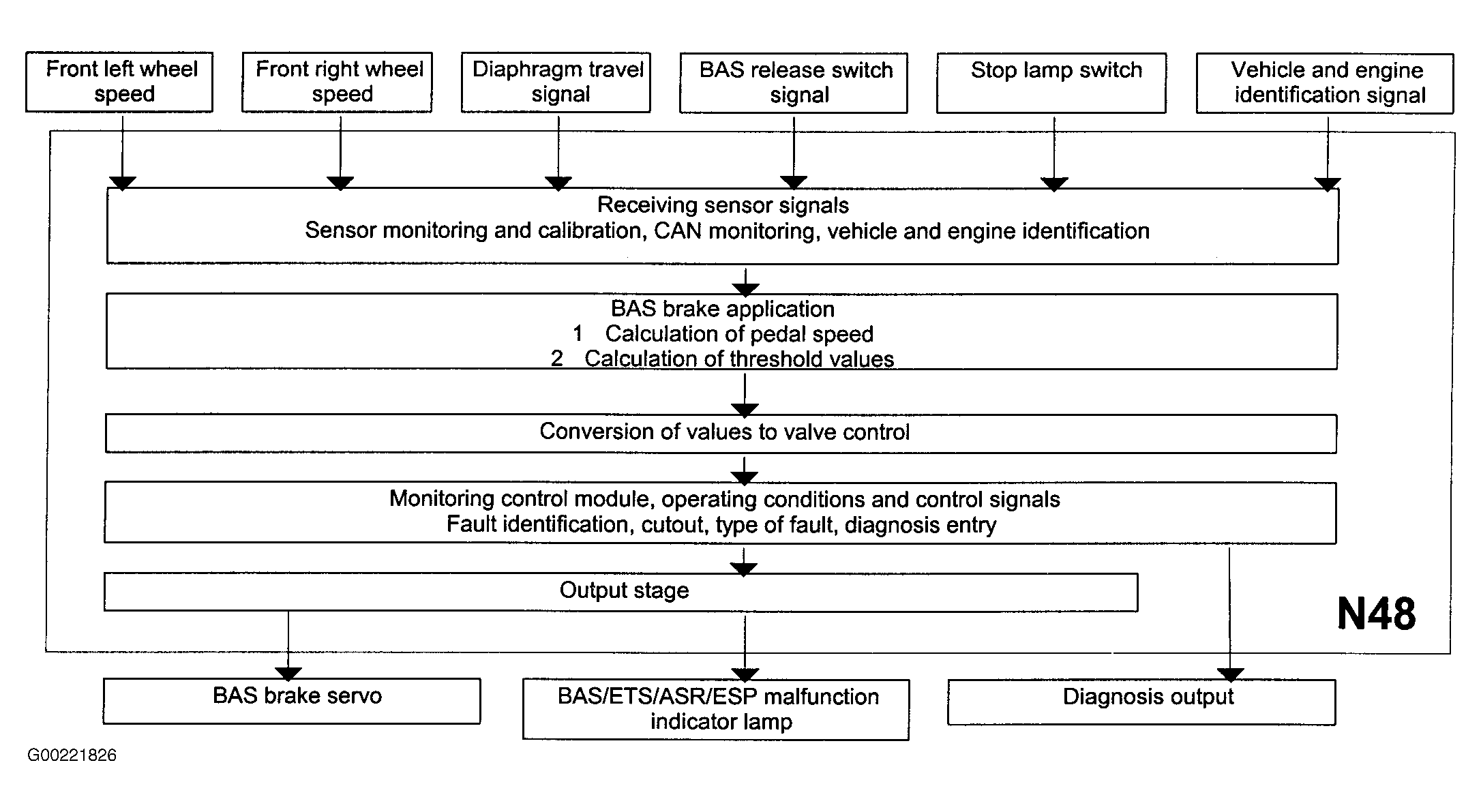

To view BAS control module function, see Figure
.
The BAS control module (N48) is divided up functionally as follows:
- Signal conditioning
- Logic section
- Safety circuit
The BAS control module (N48) is divided up functionally as follows:
