Remove starter, install - AR15.30-P-7100CS

ENGINE 112.923 in MODEL 129.059

ENGINE 112.943 in MODEL 129.064

ENGINE 113.961 in MODEL 129.068

ENGINE 112.913 in MODEL 211.061 /261

ENGINE 112.949 in MODEL 211.065 /265

ENGINE 113.967 in MODEL 211.070 /270

Shown on engine 112

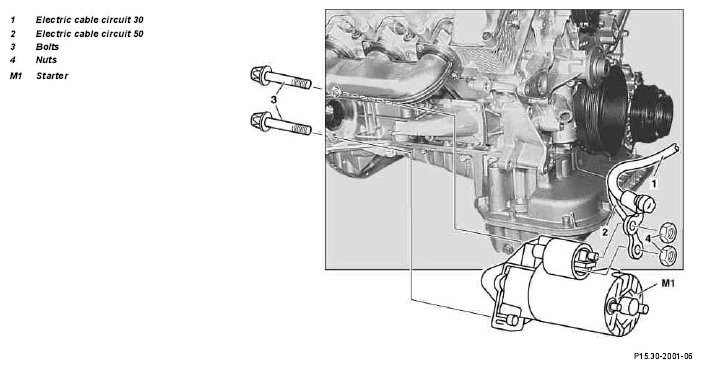

Fig 1: Identifying Starter Remove/Install Components - Shown On Engine 112

	Remove/Install
	Risk of death  cased by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion  caused by explosive gas. Risk of poisoning and caustic burns  caused by swallowing battery electrolyte. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery electrolyte only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Disconnect ground cable from battery	Insulate ground line as a protection against unintentional contact of dismounted ground line with ground point of battery.
		Model 129	AR54.10-P-0003A
		Model 211.0	AR54.10-P-0003T
		Model 211.2	AR54.10-P-0003TA
	Notes on battery		AH54.10-P-0001-01A
2	Detach lower engine compartment paneling	Model 129	AR61.20-P-1105AB
		Model 211	AR61.20-P-1105T
3	Dismount electrical lines (1, 2)	Nut of terminal 30 connection	*BA15.30-P-1001-01A
		Nut of connection circuit 50	*BA15.30-P-1002-01A
4.1	Dismount right engine mount from engine support	Unscrew bolt at engine mount, lightly raise engine and place engine mount to the side.
		Model 211.270
		Model 211.070	AR22.10-P-1100PV
5	Unscrew bolts (3)		*BA15.30-P-1003-01A
6	Take out starter (M1) to the side
7.1	Check ring gear at flywheel for wear and damage	When replacing the starter on vehicles fitted with manual transmission Rotate engine at the crankshaft in direction of rotation.
7.2	Check ring gear on the drive plate for wear and damage	When replacing the starter on vehicles fitted with automatic transmission Rotate engine at the crankshaft in direction of rotation.
8	Install in the reverse order
9	Perform function check
10	Render electrical system operational	See ↓
		Model 129	AR00.19-P-0200A
		Model 211	AR00.19-P-0200T
11	Read diagnostic trouble code memory and erase	When the work is complete stored faults must be worked on in the diagnostic trouble code memories and erased. ↓
		Connect STAR DIAGNOSIS, read out fault memory	AD00.00-P-2000-04A
