Programming control module - AN91.60-P-0001-06A
Commercially available tools
| Number | Designation | |
|---|---|---|

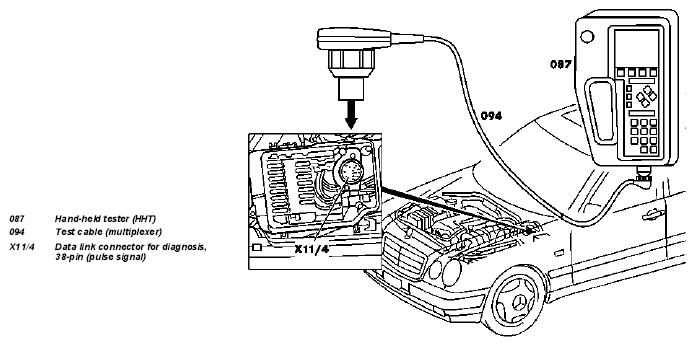

| WH58.30-Z-1036-13A | Handheld tester (HHT) | 651 100 01 99 |
| WH58.30-Z-1037-13A | Test cable (multiplexer) | 651 100 40 99 |
| WH58.30-Z-1047-13A | Test cable (HHT) 4-pin | 651 100 50 99 |
After installation of side airbag, the SRS/airbag indicator lamp (A1e15) comes on because it is still necessary to program and set parameters in control module.
The control module can only be programmed and the parameters set with the hand-held tester (HHT). (See Diagnosis Manual, Body, Volume 5, 16.3 □ 31, 32).
- Disconnect negative pole from battery.
- Ignition: On
