Pedal value sensor position - GF30.20-P-4011-01GH

Model 163

in left of component compartment

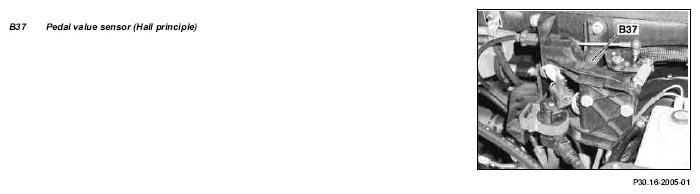

Fig 1: Locating Pedal Value Sensor (Hall Principle)
G04606716
