Component Locations

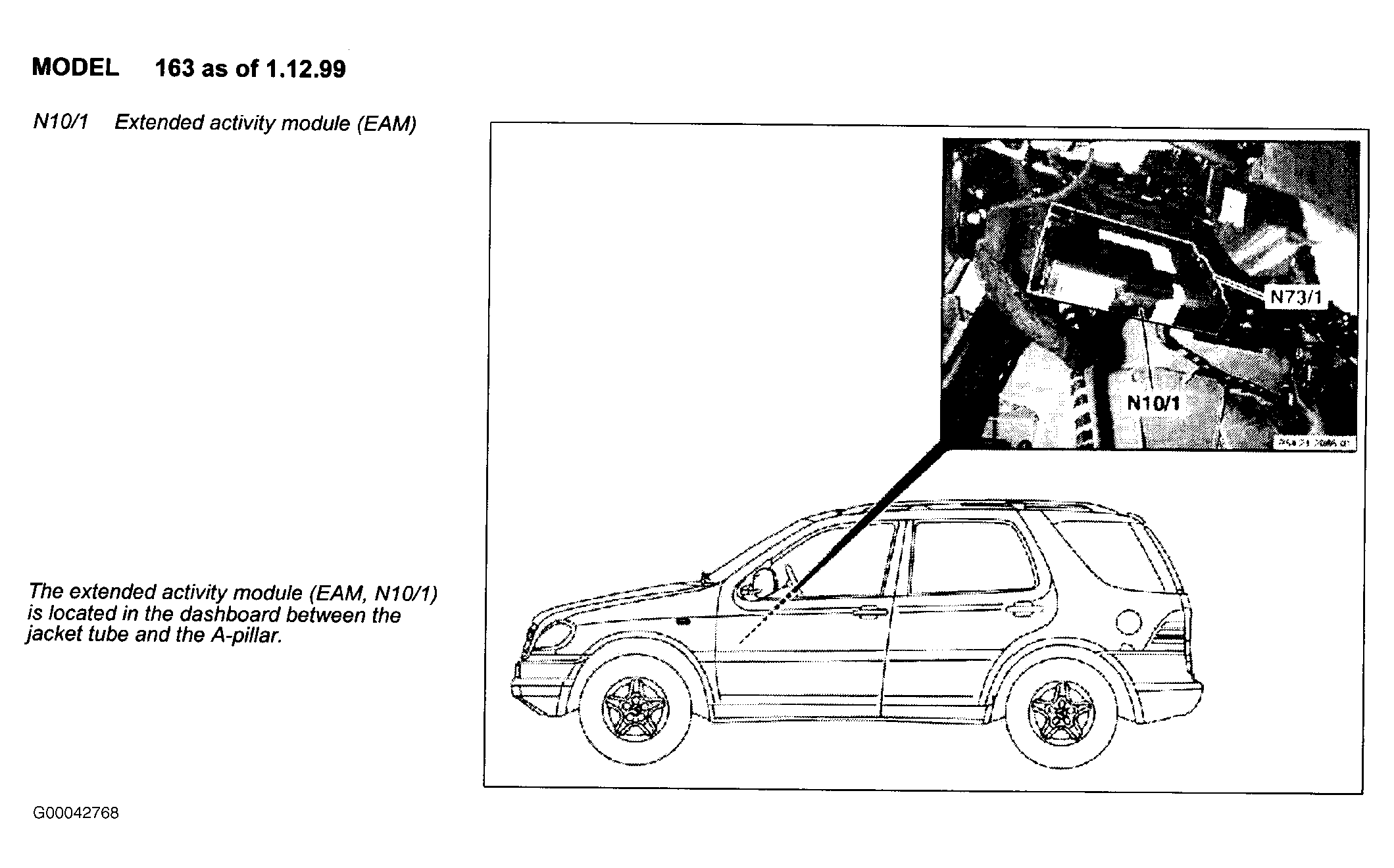

Fig 1: Identifying Extended Activity Module
G00042768Courtesy of DAIMLERCHRYSLER CORPORATION

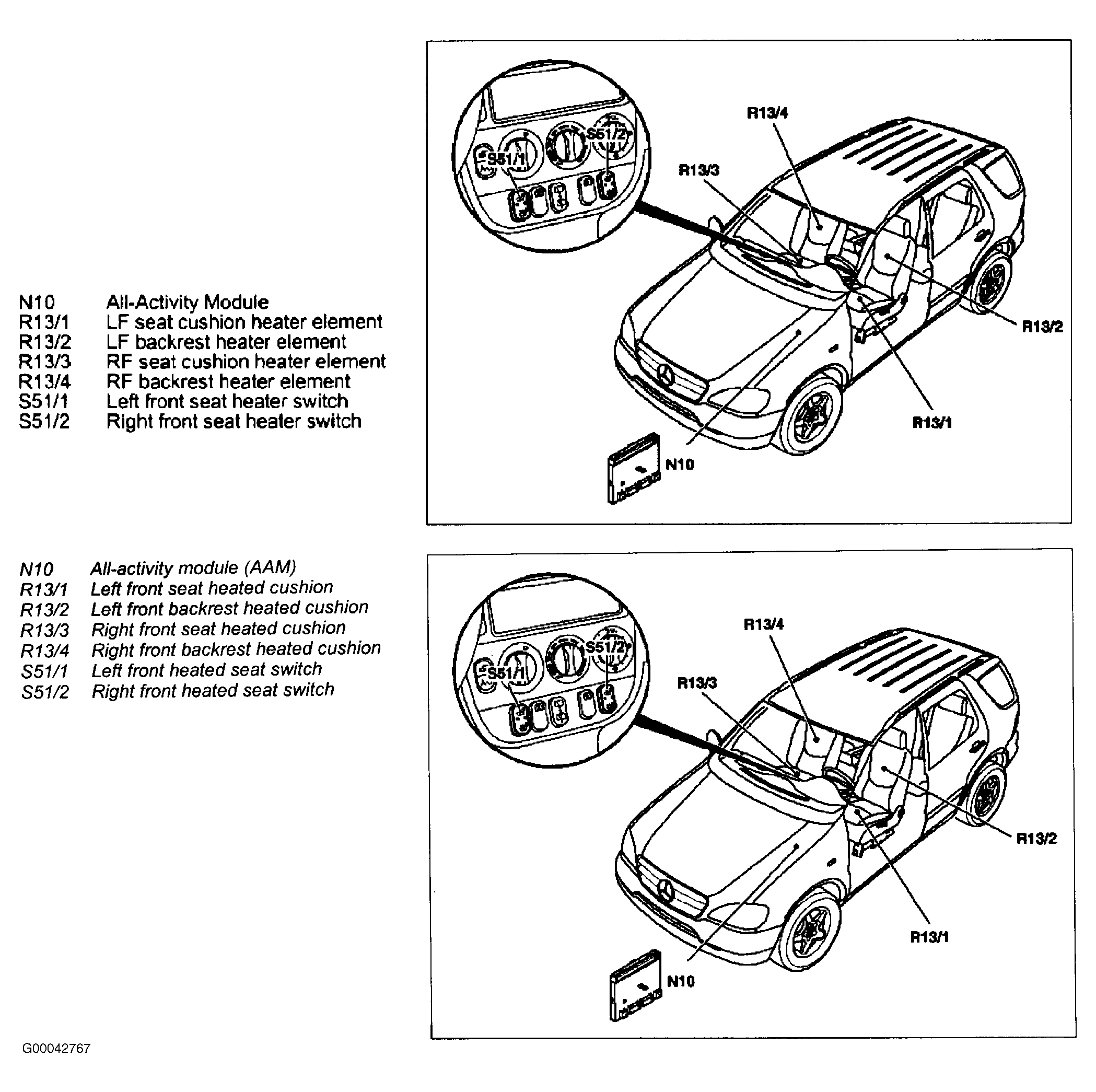

Fig 2: Identifying Heated Seat Switch
G00042767Courtesy of DAIMLERCHRYSLER CORPORATION
