Generators & Regulators: Overhaul

NOTE: Manufacturer does not recommend overhaul of generator. Exploded view of generator is provided for component identification and location. See Fig 1 .

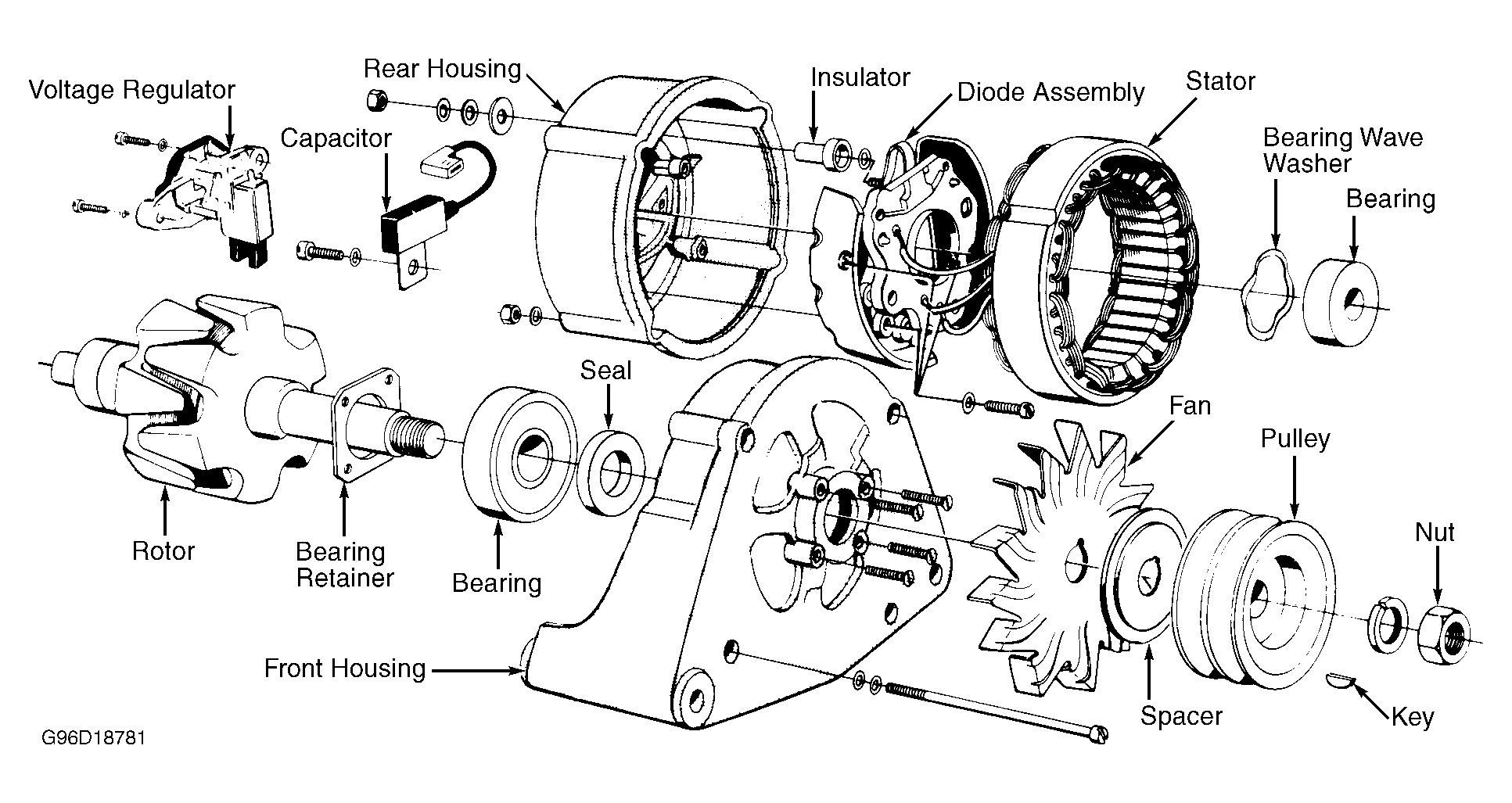

Fig 1: Exploded View Of Bosch Generator (Typical)
G96D18781Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
