Sidegate Regulating Valve-Regulating Valve Pressure Function - GF27.60-P-5133-04G
Transmission 722.6
Operation

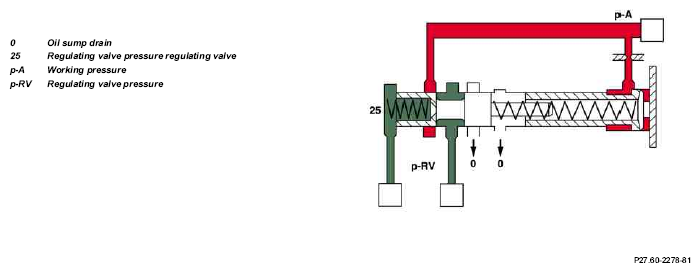

The regulating valve pressure (p-RV) is controlled up to the maximum pressure at the regulating valve pressure regulating valve (25) depending on the working pressure (p-A).
