Upper control panel control module location - GF54.21-P-4105-01S
Models 215, 220
Shown on model 220

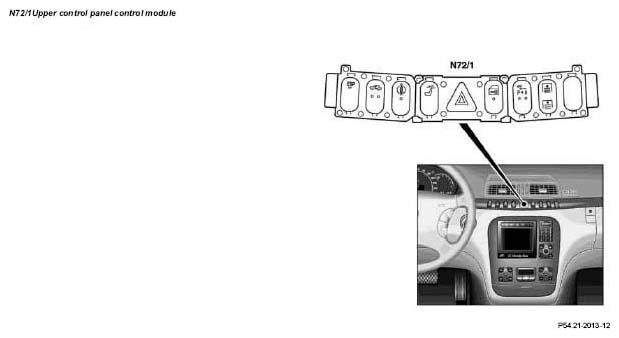

Fig 1: Identifying Upper Control Panel Control Module - Shown On Model 220
