Telephone interface, location/purpose/design/function - GF82.70-P-3107P: Notes

MODEL 129, 163, 168, 202.08 /09 /18, 203, 208, 210, 215, 220 with CODE (854) MB portable cellular telephone

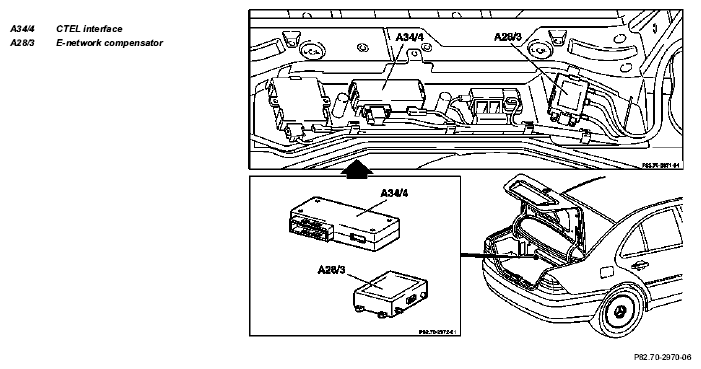

Location of components in model series 203, illustrated on model 203.0

Fig 1: Identifying E-Network Compensator And CTEL Interface - Illustrated On Model 203.0

Telephone interface, location	Model 129	GF82.70-P-3107-01FA
	Model 163	GF82.70-P-3107-01P
	Model 168	GF82.70-P-3107-01JA
	Model 202.08, 202.09, 202.18	GF82.70-P-3107-01GA
	Model 208	GF82.70-P-3107-01KA
	Model 210	GF82.70-P-3107-01HA
	Models 215, 220	GF82.70-P-3107-01O
Telephone interface, purpose	The telephone interface (A34/4) is required for connecting the portable cellular telephone to the digital data bus (D2B).
Telephone interface, design	D2B interface Input for D2B wake-up signal Integrated charging unit for rechargeable battery for portable cellular telephone
Telephone interface, function		GF82.70-P-3107-02P
