Center nozzle, location/purpose/design/function - GF83.10-P-2107I: Notes

MODEL 220, 215

Illustrated on model 220

Design

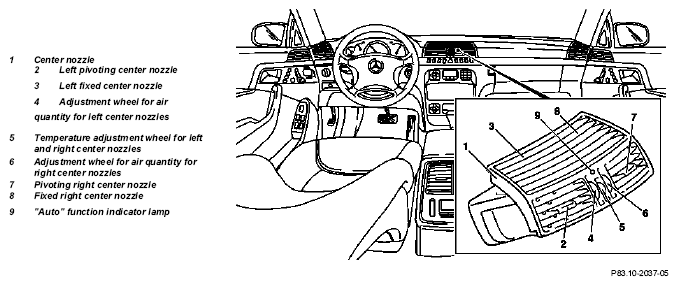

Fig 1: Identifying Center Nozzle Components - Model 220

	Center nozzle, location		GF83.10-P-2107-02I
	Center nozzle, purpose	The center nozzle provides for specific guidance and distribution of the air in the upper front passenger compartment.
	Center nozzle, function		GF83.10-P-2107-01I
