Multifunction steering wheel networking of components - GF82.90-P-0001-01SM

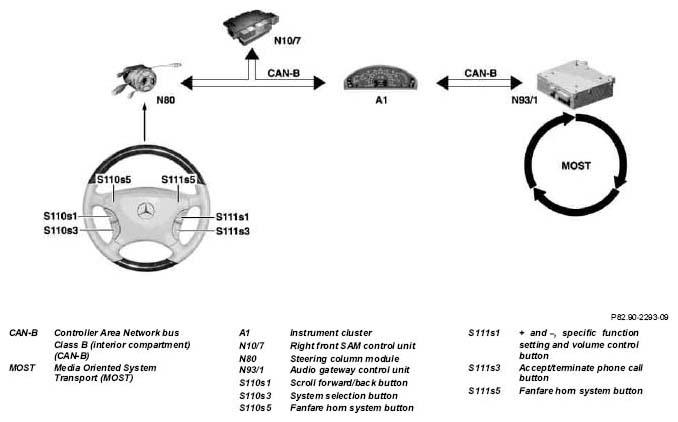

Fig 1: Multifunction Steering Wheel Component Networking Diagram
G04841109
