Windshield defroster, function - GF67.10-P-0001MB

MODEL 220.175 / 178 with CODE (979) Special protection version with windshield defroster

Networking of components

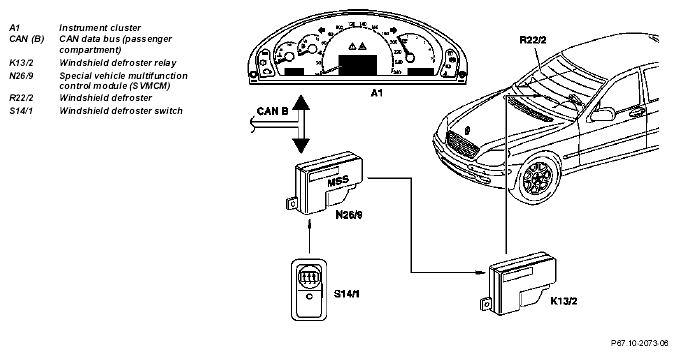

Fig 1: Identifying Windshield Defroster Communication Diagram - Model 220.175/178

Switching on windshield defroster

Function prerequisites: Engine is running.
Actuate windshield defroster switch (S14/4). (LED in switch comes on)
The special vehicle multifunction control module (SVMCM) (N26/9) receives the signal and actuates the windshield defroster relay (K13/2).
The windshield defroster relay (K13/2) connects circuit 30 to windshield defroster (R22/2).

Heating time

The heating time depends on the speed. (Signal from instrument cluster (A1)):

Speed (km/h)	Time (min)
0	6
60	7
80	9
as of100	11

Function when voltage is too low

When voltage is too low is recognized (< 11.2 V) the windshield defroster switches off and the LED in the windshield defroster switch (S14/4) starts flashing.

If the voltage in the vehicle electrical system increases to above 11.2 V within 30 s the windshield defroster is switched back on and the LED comes on continuously.

However, if the voltage is too low for longer than 30 s the windshield defroster switches off completely.

Switching off windshield defroster

Automatically:

When the specified heating time has expired:

Manually:

Actuate windshield defroster switch (S14/4) (LED in switch off).

	Windshield defroster switch, location/purpose		GF67.10-P-2100MB
	Windshield defroster relay, location/purpose		GF67.10-P-2101MB
	Special vehicle multifunction control module, location/purpose		GF82.25-P-4104MB
