Intank fuel pump, location/task/design/function - GF47.20-P-4001HA: Notes
ENGINE 113.991 in MODELS 215, 220
ENGINE 113.992 in MODEL 230
ENGINE 113.993 in MODEL 463
ENGINE 113.995 in MODEL 230

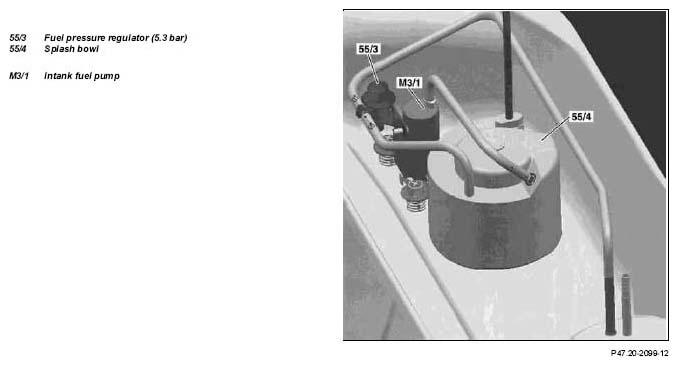

Shown on fuel tank for models 230, 463
| Intank fuel pump, location | The intank fuel pump is located in the fuel tank next to the swirl pot. | ||
| Models 215, 220 | GF47.20-P-4001-01HA | ||
| Intank fuel pump, task | The intank fuel pump ensures an adequate fuel level in the swirl pot at a high engine load or high engine speed and at a low fuel return. | ||
| Intank fuel pump, design | The design of the intank fuel pump is comparable to that of the main fuel pump (M3.). The only difference to the main fuel pump is the maximum delivery volume of at about 220 l/h at a delivery pressure of 0.3 bar. | ||
| Intank fuel pump, function | Actuation takes place via the intank fuel pump (K27/5, K40/8kX) relay of the ME control unit (N3/10). |
