Pedal value sensor characteristic curve when reversing function - GF30.20-P-4013E

ENGINE 104.943 /944 /991 /994 as of 1.8.96

ENGINE 104.995

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

with CODE (498) as of Model year 97 Japanese version

ENGINE 104.941 as of 1.8.96

ENGINE 111.921 /942 as of 1.9.98,

111.946 as of 1.6.98,

111.944/975 as of 1.8.96,

111.943 /947 /951 /952 /955 /956 /957 /958 /973 /974 /982 /983

ENGINE 111.945

in MODEL 202.020 /080 as of 1.9.98,

208.335/435 as of 1.6.98

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969

ENGINE 119.980 /981 /982 /985

ENGINE 120.982/983

ENGINE 137.970

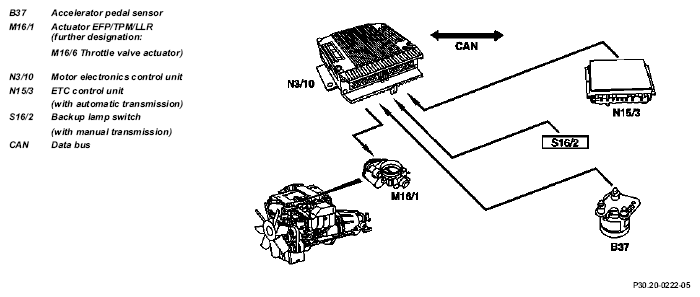

Fig 1: Identifying Pedal Value Sensor Function Diagram

Task

Optimizing driving comfort and safety when reversing.

Design/function

The pedal value sensor characteristic curve is changed if reverse travel is recognized by the ME control unit. The throttle valve opens more slowly. The entire opening angle in this case is approx. 50%.

Reversing is detected:

if a manual transmission fitted, the ME control unit is connected parallel to the reversing light switch.
if an automatic transmission is fitted, the information is supplied over the CAN by the ETC control unit.

Motor electronics control unit, location/task/ design/function	other than engine 111 EVO	GF07.61-P-5000F
	Engine 111 EVO	GF07.61-P-5000GS
Pedal value sensor, location/task/design/ function		GF30.20-P-4011L
Electronic accelerator/cruise control/idle speed control actuator location/task/design/function		GF30.22-P-4010F
Throttle valve actuator, location/task/design/ function	Engine 111 EVO	GF30.22-P-4101GS
ETC control unit, location/task	Information on selector lever position P/N and gear engaged in the case of automatic transmission. Transmission 722.6	GF27.19-P-4012G
